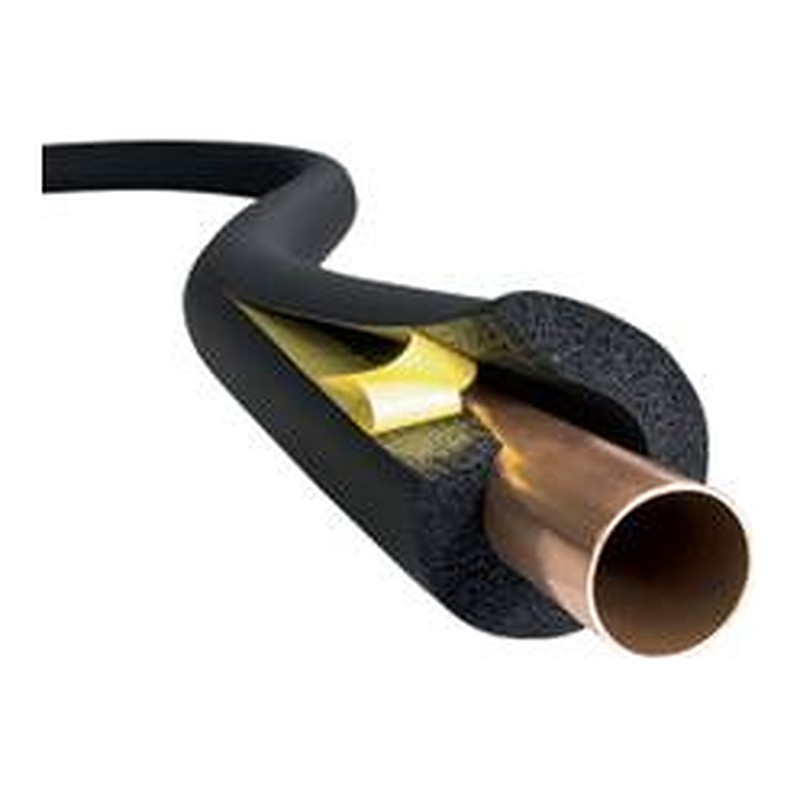

Armaflex Class O Pipe Insulation 60mm x 13mm

Armaflex Class O Pipe Insulation 60mm x 13mm fits 2 inch steel tube, with 13mm of sealed foam round it. As a light grade, it goes on heating pipework indoors where the pipe stays warm and the aim is to cut heat loss.

Armaflex Class O Pipe Insulation 60mm x 13mm on 2 inch steel

Plenty of older boiler houses and commercial buildings still run 2 inch steel heating mains. Lagging them reduces wasted heat and makes plant rooms more comfortable to work in. A 13mm wall keeps the size down, so lagged pipes still fit on brackets designed for bare pipe.

• For 60.3mm (2 inch) steel tube
• 13mm foam wall
• About 86mm overall when fitted
• 2 metre lengths

Brush off loose rust and old lagging before fitting. Cut it lengthways, clip it over the pipe and glue the split and the ends. At flanges and valves, offcuts glued in place give a neater finish than leaving gaps. If the main runs somewhere cold, choose a thicker wall. Other sizes are in pipes, hoses and insulation.

Get it in Glasgow

Buy it on the website for collection, or ask at Plumb Parts in person, 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Specification

• Brand: Armaflex
• Range: Class O pipe insulation
• Material: Flexible closed cell elastomeric (nitrile rubber) foam
• Sizes: 60mm bore, 13mm wall, 2m lengths
• Standard or approval: Class O fire performance, as named
• Suitable for: Insulating 60mm pipe

Common Questions

What pipe does 60mm Armaflex suit?

It is sized for 2 inch steel pipe, which measures about 60mm outside. That makes it a regular on steel heating mains in commercial buildings.

Is a 13mm wall enough on a 2 inch heating main?

Inside heated buildings it cuts heat loss and keeps the fitted size slim in busy ceiling voids. Where the main passes through a cold area, change to a thicker wall.

How many 60mm x 13mm lengths does a 26m main take?

Thirteen 2m lengths cover the straight pipe. Add a few for bends, valves and flanges, which are common on steel mains.
