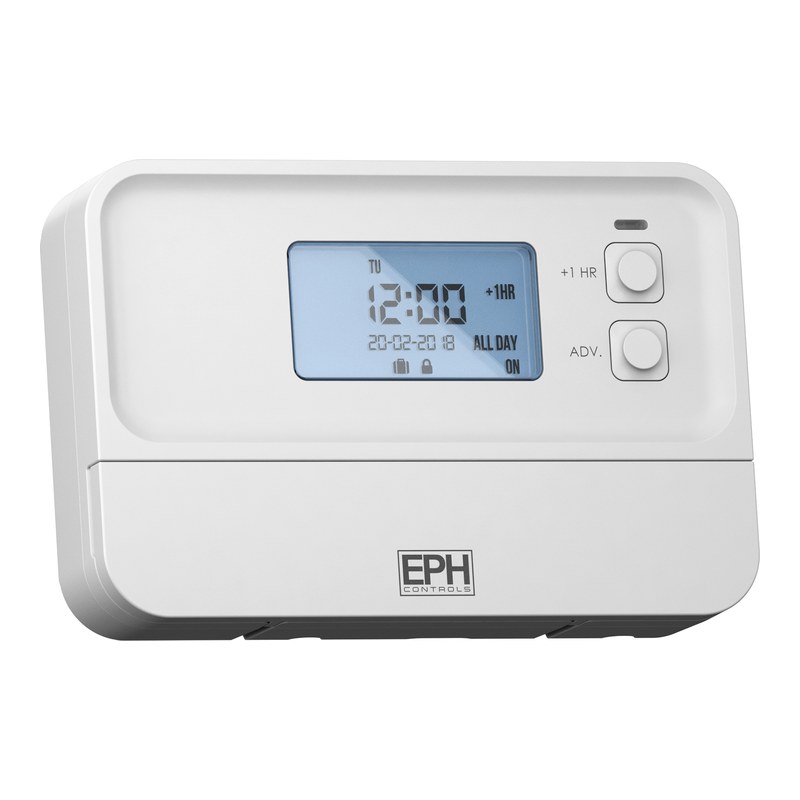

EPH A17 1 Zone Timeswitch

The EPH A17 is a wired 1 zone timeswitch for switching a boiler on and off to a set timetable. It is the plain, easy choice for a combi boiler or a heating only system where one clock runs everything. We keep it In Stock at our South Street counter in Glasgow.

It has three ways to set the week: the same times every day (24 hour), weekdays and weekends set apart (5/2 day), or each day set on its own (7 day), with three on and off times a day. The switch is volt free, so it suits both mains and low voltage boiler wiring, and it sits on an industry standard 6 pin back plate, so it often drops straight onto the plate of an old timer.

Check the wiring on the old back plate before you swap it over, and take a photo of it first.

See the rest of our timeswitches and programmers, or come in and see it on the counter.

Specification

• Brand: EPH Controls
• Maker code: A17
• Zones: 1 zone
• Modes: 24 hour, 5/2 day and 7 day
• On and off times: 3 per day
• Switch output: Volt free
• Contact rating: 3(1)A 250 V AC
• Back plate: Industry standard 6 pin
• Screen: 51 x 23mm
• Working temperature: 0 to 50°C
• Stock: In Stock

Common Questions

Will the A17 fit my old timer’s back plate? It uses an industry standard 6 pin back plate, so it fits many older timers’ plates. Check the terminal numbers against your old unit first.

Can it control hot water as well? No. The A17 is 1 zone only. For heating and hot water see the EPH A27-HW 2 zone programmer.

Can I collect it today? Yes. It is In Stock at our South Street counter during opening hours.
