ESi Zone Valve 2 Port and 3 Port 22mm to 28mm
Price range: £52.84 through £89.75 inc VAT ( Price range: £44.03 through £74.79 ex VAT)
✓ In Stock
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
ESi zone valves in 2 port and 3 port, for 22mm and 28mm pipe, to switch heating and hot water on a pumped system. Collect from 555 South Street, Glasgow G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| ESZV222LM |
|
2 Port x 22mm | £58.82 inc VAT (£49.02 ex VAT) |
-
+
|
£58.82 inc VAT ({price_excluding_tax} ex VAT) | ||
| ESZV222PM |
|
2 Port x 22mm Pre-Plumb | £75.23 inc VAT (£62.69 ex VAT) |
-
+
|
£75.23 inc VAT ({price_excluding_tax} ex VAT) | ||
| ESZV282N |
|
2 Port x 28mm | £69.70 inc VAT (£58.08 ex VAT) |
-
+
|
£69.70 inc VAT ({price_excluding_tax} ex VAT) | ||
| ESZV223P |
|
3 Port x 22mm | £89.75 inc VAT (£74.79 ex VAT) |
-
+
|
£89.75 inc VAT ({price_excluding_tax} ex VAT) | ||
| ESZVA2N |
|
2 Port Replacement Head | £52.84 inc VAT (£44.03 ex VAT) |
-
+
|
£52.84 inc VAT ({price_excluding_tax} ex VAT) |

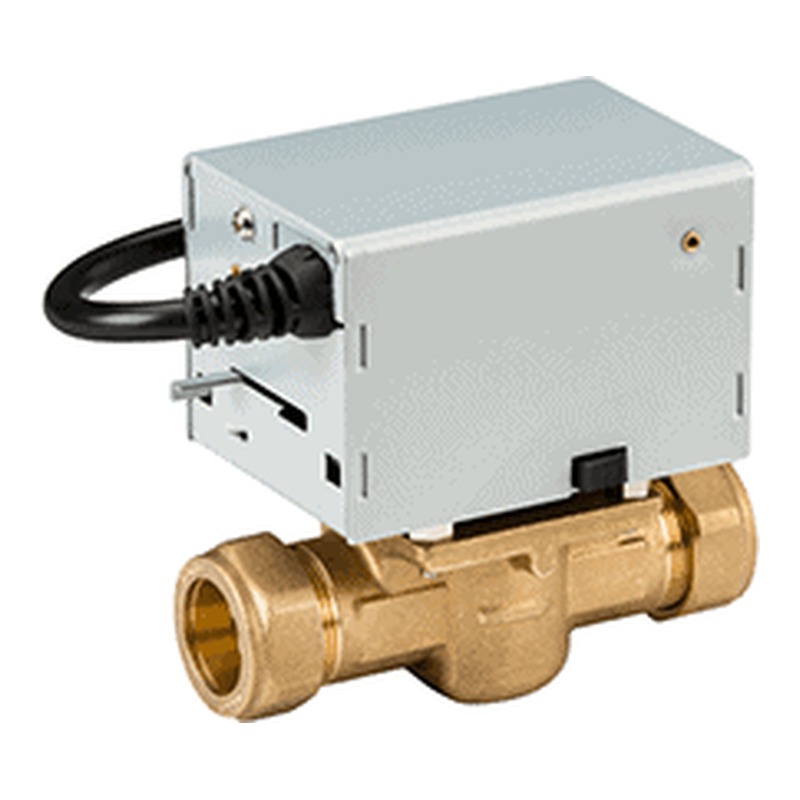

The ESi Zone Valve opens and closes a heating or hot water circuit when the programmer or room thermostat calls for heat. We sell it as 2 Port x 22mm, 2 Port x 22mm Pre-Plumb, 2 Port x 28mm and 3 Port x 22mm, plus the 2 port replacement head. The 22mm 2 port is the one most houses need, and the pre-plumb version has a plug on the end of the cable to suit a cylinder with a pre-plumbed wiring centre.
The 2 port valves are spring return, so they close when the power goes off, and a manual lever holds them open for filling and draining. The 3 port is a mid position valve for a Y plan system. The head clips off the brass body, so a dead head can be swapped without draining down. ESi say the head also fits the market leading valve bodies using the two screws supplied.
The valve runs on mains voltage, so isolate the supply and wire it to the system diagram, or have a competent electrician or heating engineer do it.
Specification
- Brand: ESi Controls
- Maker code: ESZV222LM (2 Port x 22mm), ESZV222PM (2 Port x 22mm Pre-Plumb), ESZV282N (2 Port x 28mm with neon), ESZV223P (3 Port x 22mm with neon light), ESZVA2N (2 port replacement head)
- Type: 2 port spring return zone valve, 3 port mid position zone valve
- Connection: Compression
- Power supply: 220-240V AC 50/60Hz, 5W
- Auxiliary switch: 250V AC 3A (4A on ESZV282N)
- Maximum static pressure: 8 bar
- Water temperature: +5 to +88°C
- Ambient temperature: +5 to +50°C
- Standards: EN60730-1 and EN60730-2.7 (ESZV222LM, ESZV222PM, ESZV223P)
- Sizes: 2 Port x 22mm, 2 Port x 22mm Pre-Plumb, 2 Port x 28mm, 3 Port x 22mm, 2 Port Replacement Head
Common Questions
Do I need a 2 port or a 3 port valve?
Go by the system you have. Separate valves on the heating and hot water legs is an S plan, so 2 port. One valve where the flow splits is a Y plan, so 3 port mid position.
What is the pre-plumb valve for?
The ESZV222PM has a plug on the end of its cable, so it plugs straight into a cylinder that comes with a pre-plumbed wiring centre instead of being wired into a junction box.
Can I collect a ESi motorised valve today in Glasgow?
Yes. Order online and use free Click and Collect at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.
Order online and collect free from Plumb Parts, 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Free delivery on orders over £250. Unused items in their packaging can be returned within 14 days. Heating engineers and plumbers can ask at the counter about a trade account.
