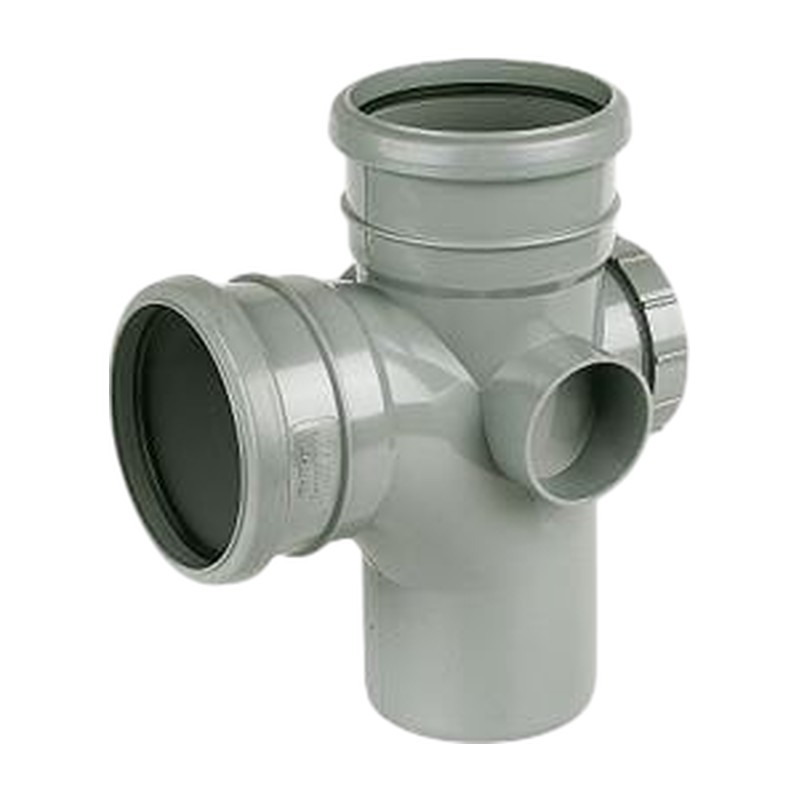

FloPlast Ring Seal 92.5 Deg Access Branch – SP502 110mm

In a tight boxed corner, the FloPlast Ring Seal 92.5 Deg Access Branch SP502 combines a 110mm branch with a removable access door. One fitting gives you both a connection for a WC and a rodding point on the stack.

Where the FloPlast Ring Seal 92.5 Deg Access Branch SP502 earns its place

Space on a soil stack is often tight, especially in a boxed-in corner of a bathroom. Rather than fitting a separate access pipe above or below the WC branch, this does both jobs at the same height.

Turn the access door to face where you can reach it later, and leave an access panel in any boxing. Set the branch height so the WC connection has a proper fall into the stack.

Chamfer and lubricate each pipe end and push the Ring Seal joints fully home. Tighten the door fixings evenly and check for leaks under test.

Fix the stack with brackets close to the branch, because the WC connection adds load.

Buying access branches in Glasgow

The Flexible range covers the clips and pipe that go with it. Plumb Parts serves trade and DIY customers at 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and online.

Specification

• Brand: FloPlast
• Range: 110mm Ring Seal Soil
• Maker code: SP502
• Material: PVC-U
• Connection: Ring Seal sockets with an access door on the branch
• Sizes: 110mm
• Standard or approval: BS EN 1329-1 and BS EN 1453-1, Kitemark KM 544331
• Max temperature: 70°C to 75°C continuous; hotter discharges for 2 minutes at most
• Suitable for: WC connection and rodding point at one height in a boxed corner

Common Questions

Does the SP502 save fitting a separate access pipe?

Yes. It gives a WC connection and a rodding door in one fitting, which helps where a corner of the bathroom is boxed in.

Which way should the SP502 door face?

Towards wherever someone can reach it once the room is finished. Build a removable panel into the boxing in front of it.

At what height should the branch be set?

High enough that the WC pan connector falls into the stack. Measure from the pan outlet before cutting the stack pipe.
