Geberit Mapress Copper Adaptor Union with Male Thread 15mm to 54mm
Price range: £18.52 through £95.51 inc VAT ( Price range: £15.43 through £79.59 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Geberit Mapress Copper Adaptor Union with Male Thread 15mm to 54mm, genuine Geberit copper press fit in 9 sizes. Maker codes listed by size. Plumb Parts, 555 South Street, Glasgow G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| 65532 |
|
15 x 1/2" | £23.80 inc VAT (£19.83 ex VAT) |
-
+
|
£23.80 inc VAT | ||
| 65541 |
|
15 x 3/4" | £18.52 inc VAT (£15.43 ex VAT) |
-
+
|
£18.52 inc VAT | ||
| 65534 |
|
22 x 1/2" | £22.10 inc VAT (£18.42 ex VAT) |
-
+
|
£22.10 inc VAT | ||
| 65543 |
|
22 x 3/4" | £35.20 inc VAT (£29.33 ex VAT) |
-
+
|
£35.20 inc VAT | ||
| 65544 |
|
22 x 1" | £22.10 inc VAT (£18.42 ex VAT) |
-
+
|
£22.10 inc VAT | ||
| 65535 |
|
28 x 1" | £37.39 inc VAT (£31.16 ex VAT) |
-
+
|
£37.39 inc VAT | ||
| 65536 |
|
35 x 1.1/4" | £43.14 inc VAT (£35.95 ex VAT) |
-
+
|
£43.14 inc VAT | ||
| 65537 |
|
42 x 1.1/2" | £57.50 inc VAT (£47.92 ex VAT) |
-
+
|
£57.50 inc VAT | ||
| 65538 |
|
54 x 2" | £95.51 inc VAT (£79.59 ex VAT) |
-
+
|
£95.51 inc VAT |

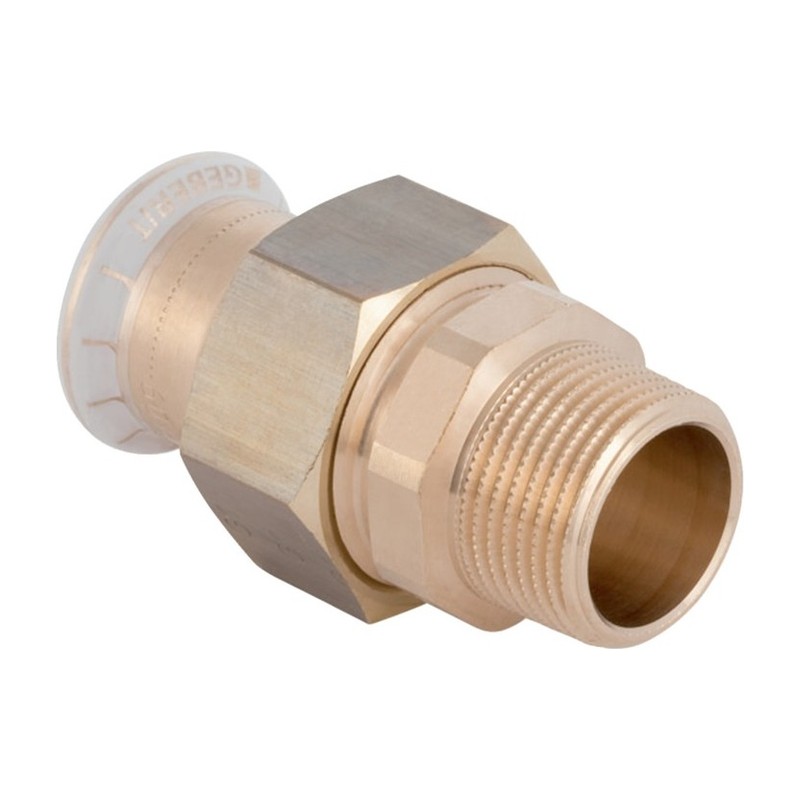

The Geberit Mapress Copper Adaptor Union with Male Thread is a three piece union from copper tube to a male (R) thread, with a flat seal so it can be undone later. Fit it beside pumps, meters and valves that may need to come out for service. We sell it in 15mm x 1/2″, 15mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1 1/4″, 42mm x 1 1/2″ and 54mm x 2″, all genuine Geberit stock.
Mapress Copper water fittings come with a black EPDM seal ring already fitted and a white pressing indicator that comes off when the joint is done. They press on to copper tube to EN 1057 with an M contour jaw, with no flame and no hot works permit. Up to 54mm a joint that has not been pressed is made to leak under test, so a missed one shows up before handover.
Specification
- Brand: Geberit
- Range: Geberit Mapress Copper
- Maker code: 65532 (15mm x 1/2″), 65541 (15mm x 3/4″), 65534 (22mm x 1/2″), 65543 (22mm x 3/4″), 65544 (22mm x 1″), 65535 (28mm x 1″), 65536 (35mm x 1 1/4″), 65537 (42mm x 1 1/2″), 65538 (54mm x 2″)
- Sizes: 15mm x 1/2″, 15mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 1″, 35mm x 1 1/4″, 42mm x 1 1/2″, 54mm x 2″
- Material: Lead-free gunmetal
- Seal ring: Black EPDM
- Connection: Press fit, M contour, with pressing indicator
- Max pressure: 16 bar
- Max temperature: 100°C on drinking water
- Suitable for: Hot and cold drinking water, heating and cooling water, on copper tube to EN 1057
Common Questions
What is the Copper Adaptor Union with Male Thread used for? It is a three piece union from copper tube to a male (R) thread, with a flat seal so it can be undone later. Fit it beside pumps, meters and valves that may need to come out for service.
How are the sizes written? The copper tube size comes first in mm, then the thread size in inches, so 22mm x 3/4″ takes 22mm tube and a 3/4 inch thread.
Can I use it on gas? No, this is the water and heating version. Geberit make a separate Mapress Copper gas range with a yellow seal ring.
What press jaws do I need? Mapress uses an M contour, so you need M jaws in the size of the tube. Check your press tool maker’s list before you start.
Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.
Datasheets
Plumb Parts, 555 South Street, Glasgow G14 0QX. Tel: 0141 404 5128. Open 7 days: Mon to Fri 8am to 5pm, Sat and Sun 8am to 1pm. Returns within 14 days.
| Size |
12 x 1/2" ,12 X 3/4 " ,15 x 1/2" ,15 x 3/4" ,18 x 1/2" ,18 x 3/4" ,22 x 1/2" ,22 x 3/4" ,22 x 1" ,28 x 1" ,35 x 1.1/4" ,42 x 1.1/2" ,54 x 2" |
|---|
