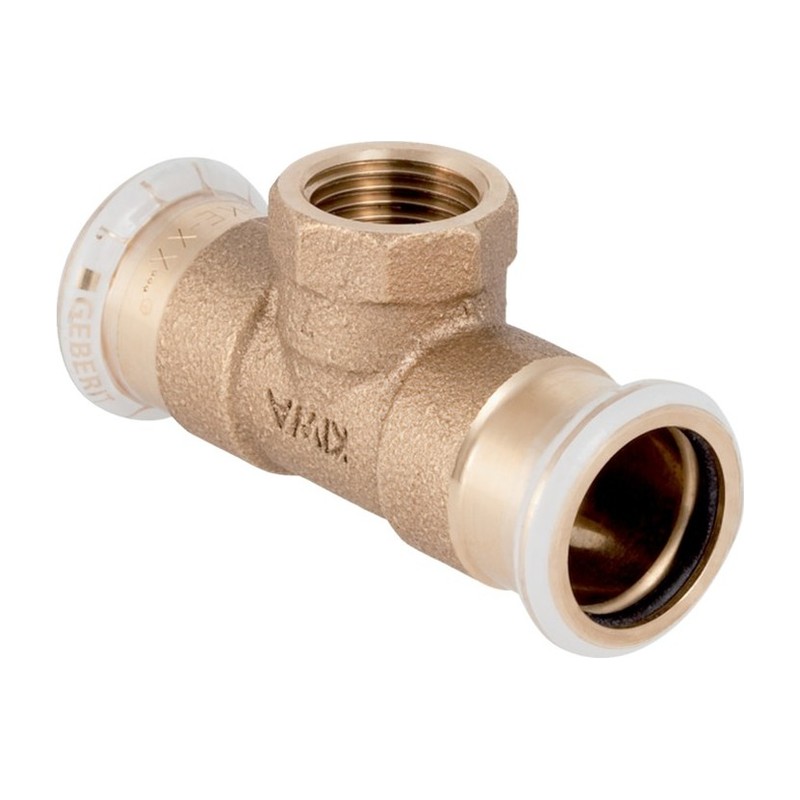

Geberit Mapress Female Threaded Branch Copper Tee 15mm to 54mm

The Geberit Mapress Female Threaded Branch Copper Tee takes a threaded branch off a copper run, with press sockets on the run and a female (Rp) thread on the branch. Use it to put a drain cock, gauge, sensor or valve straight into a run. We sell it in 15mm x 15mm x 1/2″, 22mm x 22mm x 1/2″, 22mm x 22mm x 3/4″, 28mm x 28mm x 1/2″, 28mm x 28mm x 3/4″, 35mm x 35mm x 1/2″, 42mm x 42mm x 1/2″ and 54mm x 54mm x 1/2″, all genuine Geberit stock.

Mapress Copper water fittings come with a black EPDM seal ring already fitted and a white pressing indicator that comes off when the joint is done. They press on to copper tube to EN 1057 with an M contour jaw, with no flame and no hot works permit. Up to 54mm a joint that has not been pressed is made to leak under test, so a missed one shows up before handover.

Specification

• Brand: Geberit
• Range: Geberit Mapress Copper
• Maker code: 61354 (15mm x 15mm x 1/2″), 61357 (22mm x 22mm x 1/2″), 61395 (22mm x 22mm x 3/4″), 61359 (28mm x 28mm x 1/2″), 61360 (28mm x 28mm x 3/4″), 61362 (35mm x 35mm x 1/2″), 61366 (42mm x 42mm x 1/2″), 61370 (54mm x 54mm x 1/2″)
• Sizes: 15mm x 15mm x 1/2″, 22mm x 22mm x 1/2″, 22mm x 22mm x 3/4″, 28mm x 28mm x 1/2″, 28mm x 28mm x 3/4″, 35mm x 35mm x 1/2″, 42mm x 42mm x 1/2″, 54mm x 54mm x 1/2″
• Material: Lead-free gunmetal
• Seal ring: Black EPDM
• Connection: Press fit, M contour, with pressing indicator
• Max pressure: 16 bar
• Max temperature: 100°C on drinking water
• Suitable for: Hot and cold drinking water, heating and cooling water, on copper tube to EN 1057

Common Questions

What is the Female Threaded Branch Copper Tee used for? It takes a threaded branch off a copper run, with press sockets on the run and a female (Rp) thread on the branch. Use it to put a drain cock, gauge, sensor or valve straight into a run.

How are the sizes written? The copper tube size comes first in mm, then the thread size in inches, so 22mm x 3/4″ takes 22mm tube and a 3/4 inch thread.

Can I use it on gas? No, this is the water and heating version. Geberit make a separate Mapress Copper gas range with a yellow seal ring.

What press jaws do I need? Mapress uses an M contour, so you need M jaws in the size of the tube. Check your press tool maker’s list before you start.

Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.

Datasheets

• Geberit Mapress Copper Application Overview (PDF)
