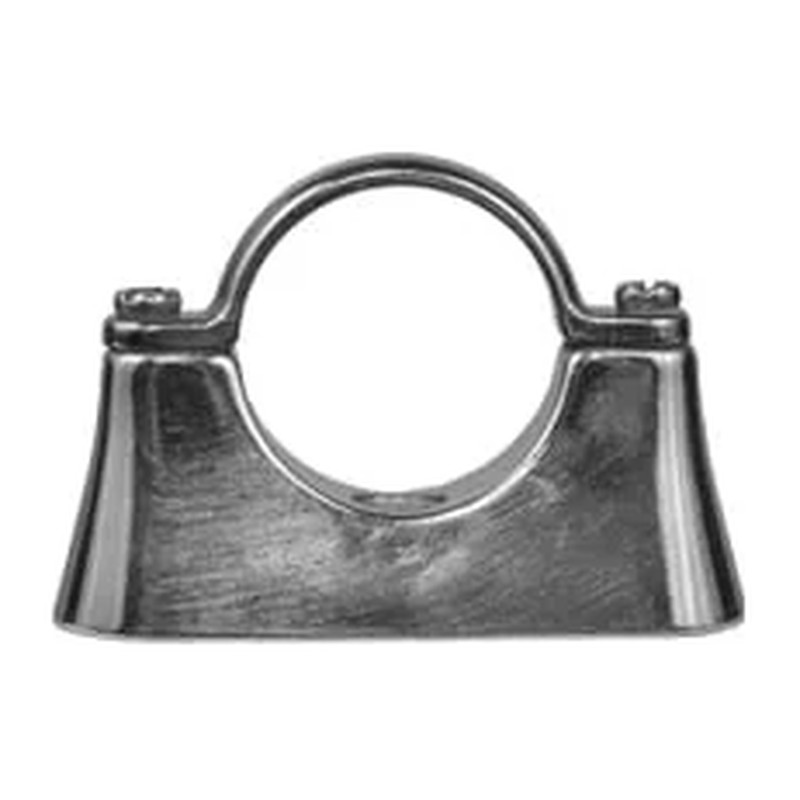

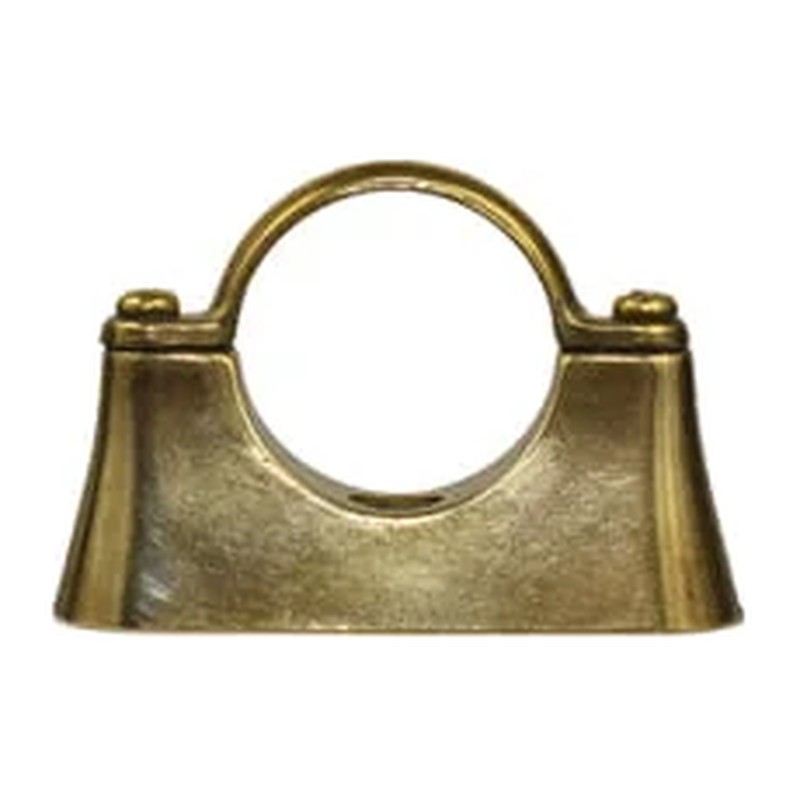

Hospital Bracket Pipe Clip Brass and Chrome 15mm to 54mm

Hospital bracket pipe clips in brass and chrome, 15mm to 54mm. They stand the pipe off the wall so you can clean or paint behind it.

Pipe fixings for neat, solid runs of copper and steel pipe. Space clips evenly and close to bends and fittings so the pipe cannot sag or tick.

Specification

• Type: Hospital bracket pipe clip, stands the pipe off the wall
• Material: Brass or chrome plated
• Connection: screw fixing
• Sizes: 15mm Brass, 15mm Chrome, 22mm Brass, 22mm Chrome, 28mm Brass, 28mm Chrome, 35mm Brass, 35mm Chrome, 42mm Brass, 42mm Chrome, 54mm Brass, 54mm Chrome
• Codes: 15mm Brass HBB15, 15mm Chrome HBC15, 22mm Brass HBB22, 22mm Chrome HBC22, 28mm Brass HBB28, 28mm Chrome HBC28, 35mm Brass HBB35, 35mm Chrome HBC35, 42mm Brass HBB42, 42mm Chrome HBC42, 54mm Brass HBB54, 54mm Chrome HBC54

Common Questions

How far apart should pipe clips be?
As a guide, about every 1.2m on level runs of 15mm copper and every 1.8m on upright runs, with a clip close to each bend and fitting. Bigger pipe can go further apart.

What is a munsen ring?
A pipe ring with an M10 threaded boss, so it screws onto threaded rod or a back plate to hang pipe from ceilings or hold it off a wall.

Brass or chrome?
Brass for plant rooms and hidden runs, chrome where the pipe is on show.

Collect from Plumb Parts, the plumbers merchant at 555 South Street, Glasgow G14 0QX, open Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm. Phone 0141 404 5128 to check stock, or order online for delivery.
