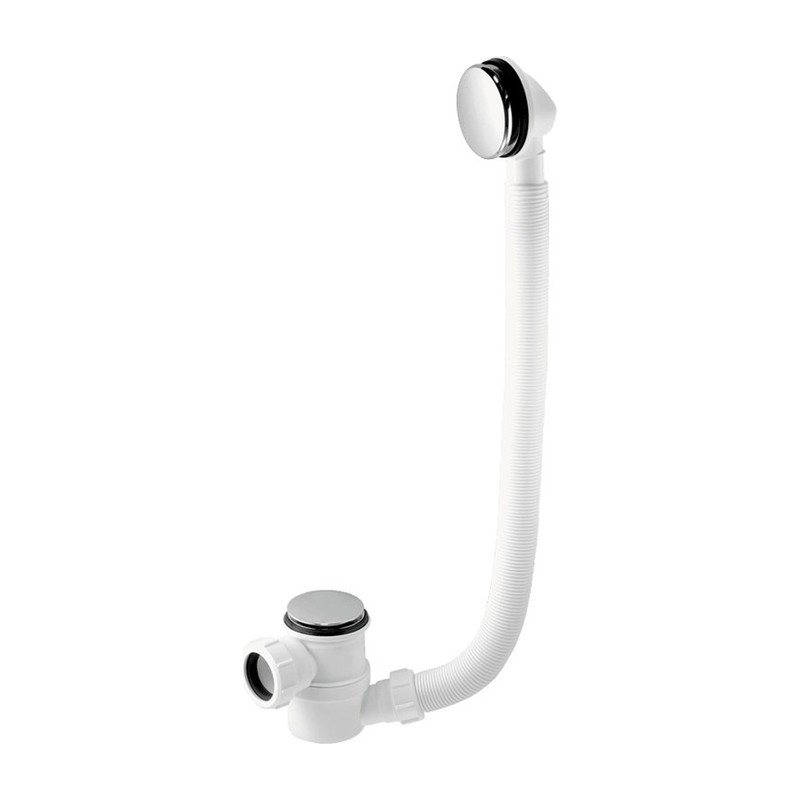

McAlpine Top Access Bath Trap with Removable Clicker Waste

The McAlpine Top Access Bath Trap with Removable Clicker Waste is part of the McAlpine Bath Traps, Fillers & Wasteflow range, available in 4 versions: Chrome Plated (HC2650UK), Matt Black (HC2650UK-MB), Brushed Brass (HC2650UK-BB), Gloss White (HC2650UK-WH). It suits plumbers, installers and homeowners carrying out new work or a straight replacement.

• 50mm Water Seal
• 1½” Universal Compression Outlet suits all plastic, copper and lead pipes
• Outlet can be swivelled to make installation easier
• Choice of Chrome Plated, Brushed Brass, Matt Black or White matching Brass Mushroom plug and overflow face
• Mushroom Plug is spring loaded and top access for easy cleaning

Specification

• Brand: McAlpine
• Range: Bath Traps, Fillers & Wasteflow
• Maker Code: HC2650UK, HC2650UK-MB, HC2650UK-BB, HC2650UK-WH
• Sizes / Options: Chrome Plated (HC2650UK), Matt Black (HC2650UK-MB), Brushed Brass (HC2650UK-BB), Gloss White (HC2650UK-WH)
• Standard / Approval: Conforms to BS EN 274-1:2002

Common Questions

Which trap size do I need for a basin, bath or sink?
Basins normally take a 1¼” (32mm) trap, while baths, showers and kitchen sinks normally take 1½” (40mm). Match the trap to the waste outlet and to the size of your waste pipe.

What water seal depth should I choose?
A 75mm seal is the usual choice for basins and sinks. Shallower 50mm or 38mm seals are made for baths and shower trays where there is little room under the outlet.

Do I need tools or PTFE tape to fit a plastic trap?
No. Plastic traps seal on their own washers and are tightened by hand, so tape and spanners are not needed and can split the nut.

Datasheets

• McAlpine HC2650UK Technical Drawing (PDF)
