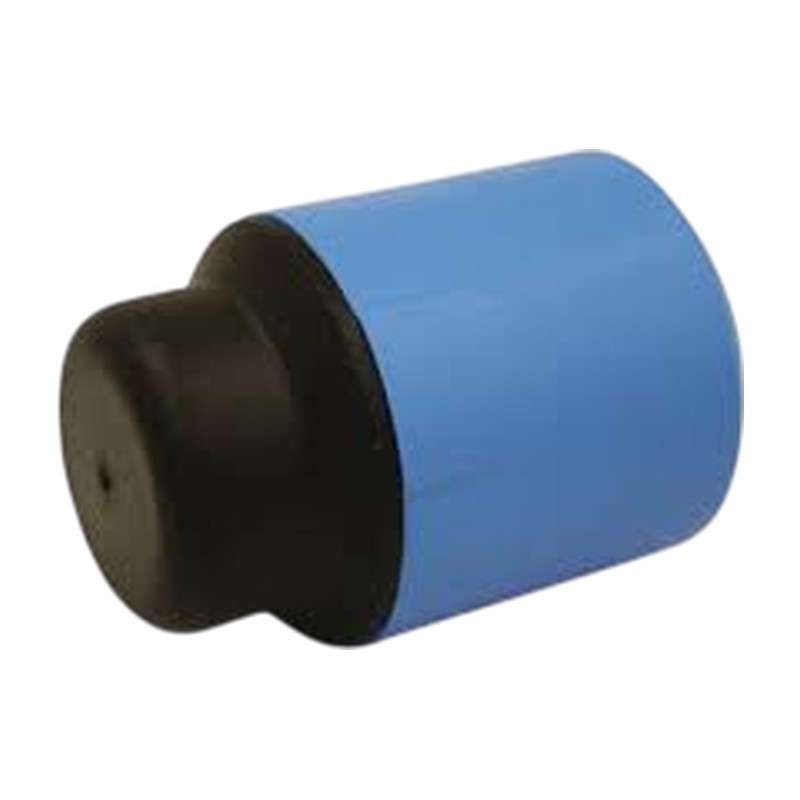

JG Speedfit MDPE Stop End 20mm to 25mm

Push a JG Speedfit MDPE stop end onto blue water pipe and the end is sealed. There is no nut to tighten, and the cap can be pulled off again when the pipe is needed.

Uses for a JG Speedfit MDPE stop end

Builders lay supplies to plots, extensions and garden rooms long before anyone connects to them. A stop end keeps the pipe sealed and clean until then. It is also handy when you cut a supply back during a repair and need to get the house running again while you fetch parts. Because it is demountable, it comes off when the final connection is made.

• Sizes: 20mm, 25mm and 32mm
• Push-Fit cap for MDPE pipe
• Can be removed and the pipe reused
• Cold water services

Fit an insert in the pipe and push the pipe fully in. A capped pipe has full mains pressure behind it, so check it carefully before covering. If it is going to be buried for a while, note where it is, so whoever connects later can find it.

Stop ends from Plumb Parts in Glasgow

The rest of the system is in our MDPE and alkathene fittings listing.

Collect at 555 South Street, Glasgow G14 0QX, the Plumb Parts trade counter, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Online ordering is there too.

Specification

• Brand: JG Speedfit
• Range: MDPE cold water services fittings
• Maker code: UG4620B (20mm), UG4625B (25mm)
• Connection: Push Fit for MDPE pipe with pipe insert
• Sizes: 20mm, 25mm and 32mm
• Standard or approval: Water Regulations Advisory Scheme approved (JG Speedfit technical guide)
• Max pressure: 16 bar at 20°C
• Max temperature: Cold water only, rated at 20°C
• Suitable for: Blue MDPE (PE80) cold water service pipe, above or below ground

Common Questions

Can I pull a Speedfit stop end off later?

Yes. With the water off, push the collet in and draw the stop end off the pipe. The pipe can then be connected to the next fitting.

Is a stop end safe on a live supply?

Yes, it is made to hold mains pressure on the pipe end. Check it carefully under pressure before you cover it.

Should a capped supply be marked?

Yes. Note where it is on a plan or with a marker, so the next person can find it without digging up the whole garden.

Datasheets

• JG Speedfit Cold Water Stop End Data Sheet (PDF)
