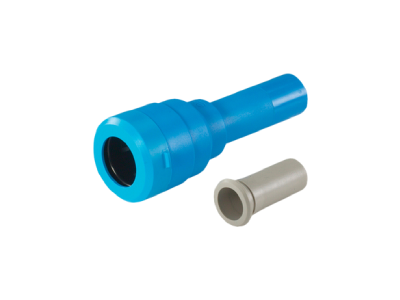

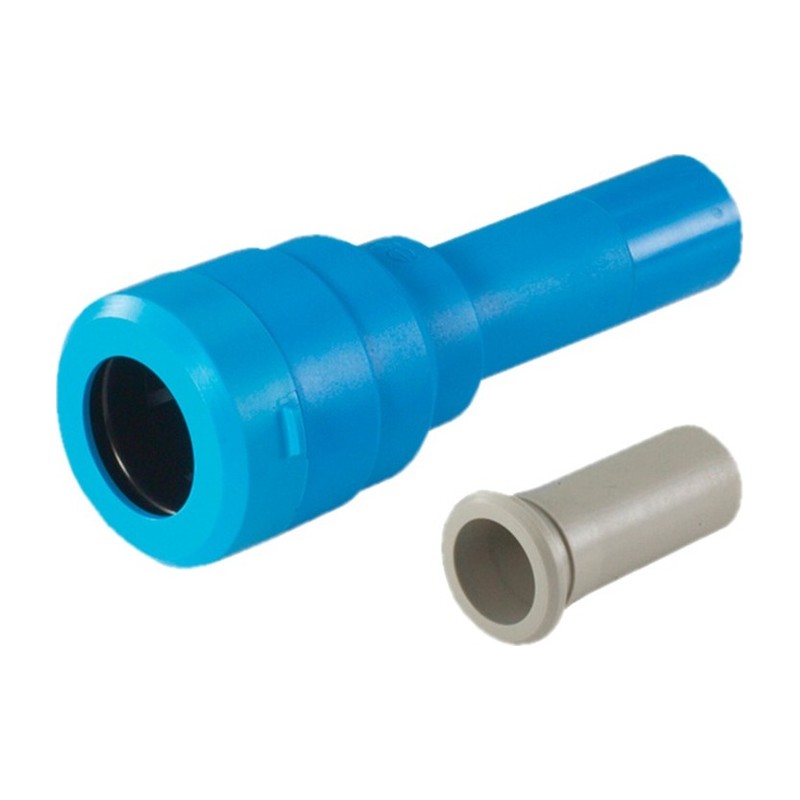

JG Speedfit MDPE Imperial to Metric Converter 20mm to 25mm

Older houses often still have imperial polythene or alkathene supply pipe, and the JG Speedfit MDPE imperial to metric converter lets you join new metric MDPE onto it. That way you can renew part of a supply without digging up the whole lot.

When you need a JG Speedfit MDPE imperial to metric converter

Imperial pipe is a slightly different outside size from metric MDPE, so a standard coupler will not seal properly. The converter is made for the gap. A common job is replacing a leaking section near the house, where the old 1/2 inch or 3/4 inch pipe carries on under the garden.

• 1/2 inch imperial to 20mm MDPE
• 3/4 inch imperial to 25mm MDPE
• Push-Fit connections
• For cold water supply pipe

Measure the old pipe before you buy, because worn or odd pipe can be hard to identify by eye. Clean the old pipe end well and cut back to sound pipe. Use the right inserts on both sides, then push each pipe fully home. Test before backfilling, and think about renewing the old pipe if it is brittle.

Bringing your pipe sizes to our Glasgow counter

Couplers, inserts and stop taps are all under MDPE and alkathene fittings.

Plumb Parts is based at 555 South Street, Glasgow G14 0QX. Call in Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or order online.

Specification

• Brand: JG Speedfit
• Range: MDPE cold water services fittings
• Maker code: UGIC01 (20mmX1/2″), UGIC02 (25mmX3/4″)
• Connection: Push Fit, imperial pipe to metric MDPE
• Sizes: 20mm x 1/2″ and 25mm x 3/4″
• Standard or approval: Water Regulations Advisory Scheme approved (JG Speedfit technical guide)
• Max pressure: 16 bar at 20°C
• Max temperature: Cold water only, rated at 20°C
• Suitable for: Blue MDPE (PE80) cold water service pipe, above or below ground

Common Questions

What does an imperial to metric converter do? It joins old imperial polythene pipe to modern metric MDPE. We list UGIC01 for 20mm x 1/2 inch and UGIC02 for 25mm x 3/4 inch.

Which converter do I need for 1/2 inch alkathene? Old 1/2 inch polythene usually goes to 20mm MDPE, and 3/4 inch to 25mm. Measure the outside of your old pipe to be sure before ordering.

Can I use it on hot water? No, it is for cold water only.

Do I need tools to fit it? No, it pushes on by hand, and stainless steel teeth inside grip the pipe firmly.

Can it be taken apart once fitted? Yes, the joint can be demounted, which helps if you need to alter or repair the pipe later.

Can it be used underground? Yes, it is designed for MDPE supply pipe in the ground, and being demountable makes later work on the pipe easier.

Datasheets

• JG Speedfit Cold Water Imperial Converter Data Sheet (PDF)
