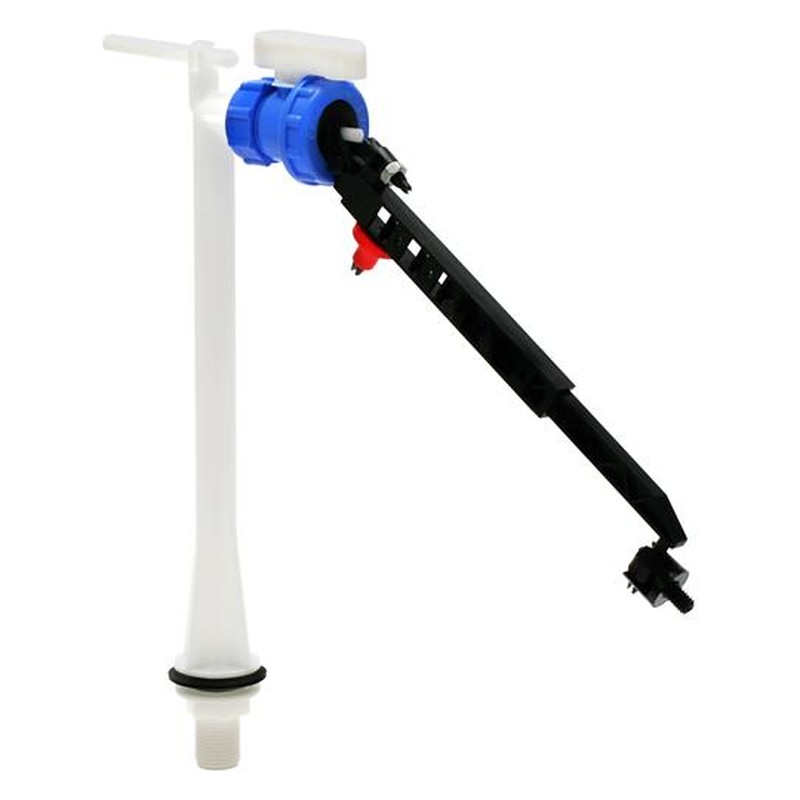

Opella Delchem Bottom Inlet Fill Valve 1/2″ x 9.1/2″

The Delchem B706A is a straight pedestal bottom inlet fill valve standing 9 1/2″ tall, for taller cisterns fed from underneath.

Key Points

• Bottom inlet, 1/2″ BSP
• 9 1/2″ straight pedestal
• Lever arm adjusts roughly 6″ to 9″
• Plastic body and float, a low cost repair

Specification

• Brand: Opella Delchem
• Maker Code: B706A
• Type: Cistern fill valve
• Entry: Bottom entry
• Size: 1/2″
• Height: 9 1/2″
• Suitable For: WC toilet cisterns

Common Questions

Do I Need a Side Entry or Bottom Entry Fill Valve?
Look at where the water pipe goes into the cistern. If it comes up through the base you need a bottom entry valve, and if it goes in through the side wall near the top you need a side entry valve.

How Do I Set the Water Level?
There is an adjuster on the float or float arm. Turn it a little at a time and let the cistern refill until the water stops just under the overflow, usually at the water line marked inside the cistern.

Brass Shank or Plastic Shank?
A brass shank gives a stronger thread that is harder to crack when you tighten the backnut. A plastic shank is fine on most domestic cisterns and costs a bit less.

Plumbers and householders across Glasgow can pick this up at our Whiteinch counter, 555 South Street, G14 0QX, or have it delivered. Ex VAT price.
