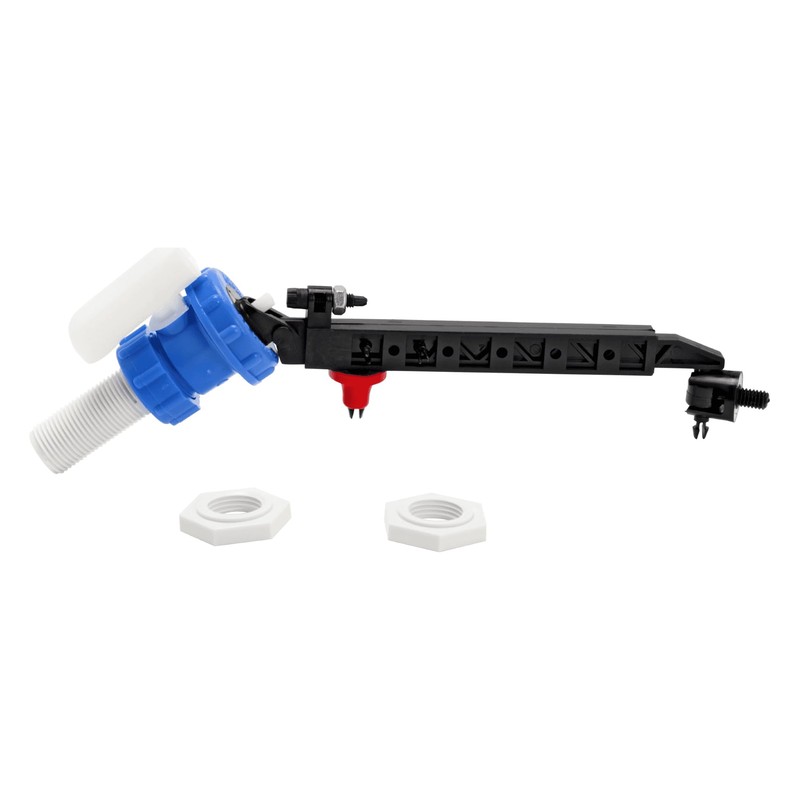

Opella Delchem Side Inlet Fill Valve 1/2″

The Delchem B801A is a budget side inlet fill valve with a lever arm and float, the straight swap for an old Part 1 style ball valve in a side fed WC cistern.

Key Points

• Side inlet, 1/2″ BSP thread
• Arm adjusts from about 6″ to 9″ to suit the cistern width
• Plastic body, will not corrode or scale up like brass
• Suits low and mains pressure

Specification

• Brand: Opella Delchem
• Maker Code: B801A
• Type: Cistern fill valve
• Entry: Side entry
• Size: 1/2″
• Suitable For: WC toilet cisterns

Common Questions

Do I Need a Side Entry or Bottom Entry Fill Valve?
Look at where the water pipe goes into the cistern. If it comes up through the base you need a bottom entry valve, and if it goes in through the side wall near the top you need a side entry valve.

How Do I Set the Water Level?
There is an adjuster on the float or float arm. Turn it a little at a time and let the cistern refill until the water stops just under the overflow, usually at the water line marked inside the cistern.

Brass Shank or Plastic Shank?
A brass shank gives a stronger thread that is harder to crack when you tighten the backnut. A plastic shank is fine on most domestic cisterns and costs a bit less.

Available from Plumb Parts, 555 South Street, Glasgow G14 0QX. Pop in to collect, or order online and we will send it out. Ex VAT price.
