Pegler Yorkshire SS3 XPress 316 Stainless Steel Male Connector 15mm to 54mm
Price range: £15.43 through £69.78 inc VAT ( Price range: £12.86 through £58.15 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

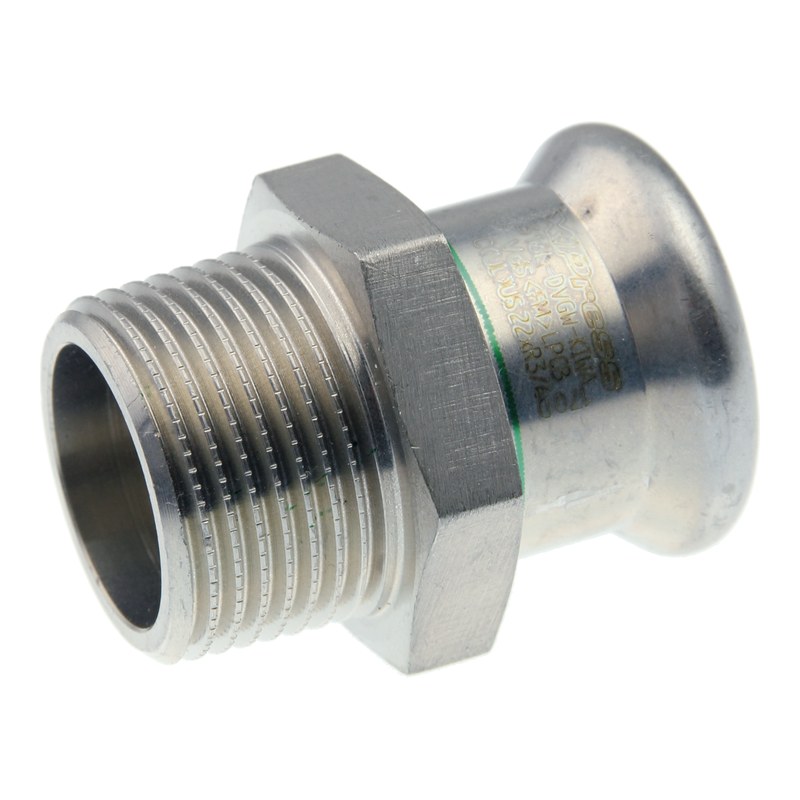

The XPress 316 Stainless Steel Male Connector, maker code SS3, is a straight connector with a press socket on one end and a BSP taper male thread on the other for the XPress Stainless press fit system, 15mm to 54mm, rated 16 bar. Need the XPress 316 Stainless Steel Male Connector 54mm x 2″ in Glasgow? Collect from our shop at 555 South Street, Glasgow G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYSSMC15D |
|
15mm x 1/2" | £15.43 inc VAT (£12.86 ex VAT) |
-
+
|
£15.43 inc VAT | ||
| PYSSMC22D |
|
22mm x 1/2" | £18.66 inc VAT (£15.55 ex VAT) |
-
+
|
£18.66 inc VAT | ||
| PYSSMC22E |
|
22mm x 3/4" | £19.25 inc VAT (£16.04 ex VAT) |
-
+
|
£19.25 inc VAT | ||
| PYSSMC22F |
|
22mm x 1" | £20.18 inc VAT (£16.82 ex VAT) |
-
+
|
£20.18 inc VAT | ||
| PYSSMC28E |
|
28mm x 3/4" | £23.44 inc VAT (£19.53 ex VAT) |
-
+
|
£23.44 inc VAT | ||
| PYSSMC28F |
|
28mm x 1" | £24.32 inc VAT (£20.27 ex VAT) |
-
+
|
£24.32 inc VAT | ||
| PYSSMC28G |
|
28mm x 1 1/4" | £30.24 inc VAT (£25.20 ex VAT) |
-
+
|
£30.24 inc VAT | ||
| PYSSMC35F |
|
35mm x 1" | £33.18 inc VAT (£27.65 ex VAT) |
-
+
|
£33.18 inc VAT | ||
| PYSSMC35G |
|
35mm x 1 1/4" | £35.62 inc VAT (£29.68 ex VAT) |
-
+
|
£35.62 inc VAT | ||
| PYSSMC35H |
|
35mm x 1 1/2" | £35.62 inc VAT (£29.68 ex VAT) |
-
+
|
£35.62 inc VAT | ||
| PYSSMC42G |
|
42mm x 1 1/4" | £50.41 inc VAT (£42.01 ex VAT) |
-
+
|
£50.41 inc VAT | ||
| PYSSMC42H |
|
42mm x 1 1/2" | £51.90 inc VAT (£43.25 ex VAT) |
-
+
|
£51.90 inc VAT | ||
| PYSSMC54H |
|
54mm x 1 1/2" | £69.78 inc VAT (£58.15 ex VAT) |
-
+
|
£69.78 inc VAT | ||
| PYSSMC54I |
|
54mm x 2" | £69.78 inc VAT (£58.15 ex VAT) |
-
+
|
£69.78 inc VAT |
The Pegler Yorkshire XPress 316 Stainless Steel Male Connector, maker code SS3, is a straight connector with a press socket on one end and a BSP taper male thread on the other for the XPress Stainless press fit system. We list it in 15mm x 1/2″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 3/4″, 28mm x 1″, 28mm x 1 1/4″, 35mm x 1″, 35mm x 1 1/4″, 35mm x 1 1/2″, 42mm x 1 1/4″, 42mm x 1 1/2″, 54mm x 1 1/2″, 54mm x 2″ for plumbers and mechanical contractors on commercial water and heating work in Glasgow and the West of Scotland.
Use it to go from stainless tube into a female threaded valve, pump or fitting. Threaded sizes are listed as tube size x BSP thread size. It is made of 316L stainless steel (1.4404) with an EPDM sealing ring, so it suits drinking water, heating, chilled water and compressed air. Every size, the XPress 316 Stainless Steel Male Connector 54mm x 2″ included, can be bought online or over our South Street counter.
XPress uses the M press profile. Mark the insertion depth on the tube before you push it in, so you know it is fully home before you press.
Elbows, tees and couplings to go with it are in our Pegler Yorkshire XPress 316 stainless steel press fit range.
Specification
- Brand: Pegler Yorkshire (VSH, Aalberts IPS)
- Range: XPress Stainless
- Maker code: SS3; article numbers 11658 (15mm x 1/2″), 11662 (22mm x 1/2″), 11664 (22mm x 3/4″), 11663 (22mm x 1″), 11642 (28mm x 3/4″), 11665 (28mm x 1″), 11666 (28mm x 1 1/4″), 11667 (35mm x 1″), 11670 (35mm x 1 1/4″), 11645 (35mm x 1 1/2″), 11668 (42mm x 1 1/4″), 11671 (42mm x 1 1/2″), 11656 (54mm x 1 1/2″), 11674 (54mm x 2″)
- Type: Male Connector
- Material: 316 stainless steel, grade 316L (1.4404)
- Seal: EPDM sealing ring, M press profile
- Sizes: 15mm x 1/2″, 22mm x 1/2″, 22mm x 3/4″, 22mm x 1″, 28mm x 3/4″, 28mm x 1″, 28mm x 1 1/4″, 35mm x 1″, 35mm x 1 1/4″, 35mm x 1 1/2″, 42mm x 1 1/4″, 42mm x 1 1/2″, 54mm x 1 1/2″, 54mm x 2″
- Max pressure: 16 bar (PN16)
- Suitable for: Drinking water, heating, chilled water and compressed air
Common Questions
What thread is on the SS3? A BSP taper male thread (R), sealed with PTFE tape or a suitable thread sealant. Threaded sizes are listed as tube size x BSP thread size.
Is this 304 or 316 stainless steel? 316. Pegler Yorkshire make XPress Stainless fittings in 316L stainless steel (1.4404).
Do you have the XPress 316 Stainless Steel Male Connector 54mm x 2″ in stock in Glasgow? Yes. Every size shows In Stock and can be collected from our counter.
Which press jaws do I need for XPress Stainless? XPress uses the M profile, so use M profile jaws of the right size on a compatible press tool.
Call in at our counter, 555 South Street, Glasgow G14 0QX, or buy online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm. Tel: 0141 404 5128.
| Size |
15mm x 1/2" ,22mm x 1/2" ,22mm x 3/4" ,22mm x 1" ,28mm x 3/4" ,28mm x 1" ,28mm x 1 1/4" ,35mm x 1" ,35mm x 1 1/4" ,35mm x 1 1/2" ,42mm x 1 1/4" ,42mm x 1 1/2" ,54mm x 1 1/2" ,54mm x 2" |
|---|
