Pegler Yorkshire XPress Copper Gas SG61 Stop end (1 x press) 15mm to 108mm
Price range: £8.46 through £14.62 inc VAT ( Price range: £7.05 through £12.18 ex VAT)
✓ In Stock
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

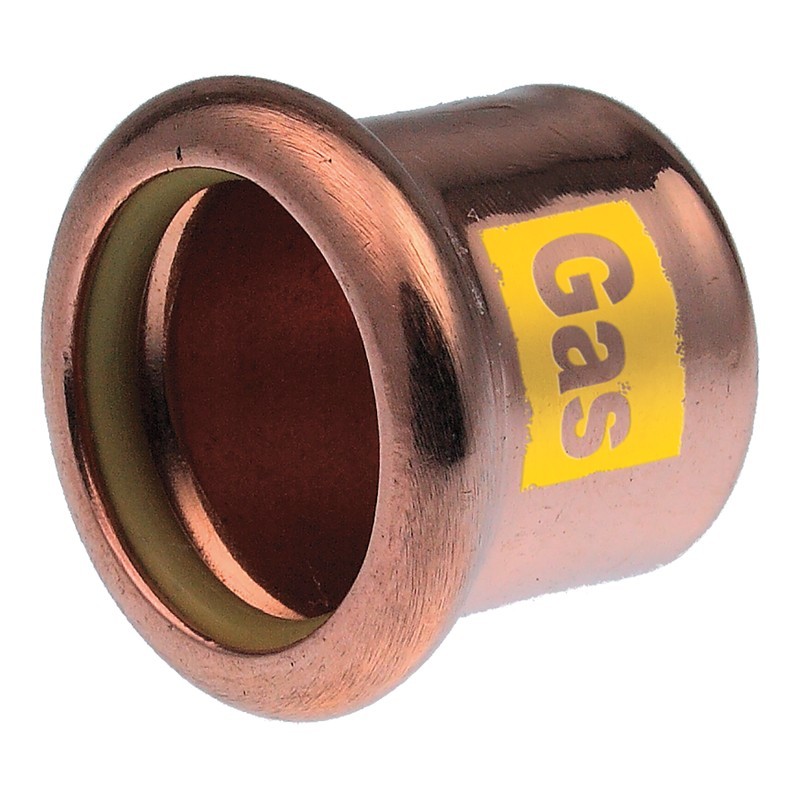

The XPress Copper Gas Stop End (SG61) caps copper gas pipe with a single press joint, with yellow gas seal and marking. For natural gas and LPG. Sizes 15mm to 108mm. Collect from our Glasgow shop at 555 South Street G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| SG61 |
|
15mm | £8.46 inc VAT (£7.05 ex VAT) |
-
+
|
£8.46 inc VAT ({price_excluding_tax} ex VAT) | ||
| SG61 |
|
22mm | £9.23 inc VAT (£7.69 ex VAT) |
-
+
|
£9.23 inc VAT ({price_excluding_tax} ex VAT) | ||
| SG61 |
|
28mm | £14.62 inc VAT (£12.18 ex VAT) |
-
+
|
£14.62 inc VAT ({price_excluding_tax} ex VAT) |
The XPress Copper Gas Stop End, maker code SG61, caps the end of a copper gas pipe with one press joint, and we sell it from 15mm to 108mm for Gas Safe registered engineers on domestic and commercial gas work. It is part of the Pegler Yorkshire XPress gas range, with a yellow gas seal and a yellow gas marking on the body so it can’t be confused with the water fittings.
Use it to cap a branch left for a future appliance, close off a redundant leg when equipment comes out, or seal a line for testing. The range is for above ground natural gas and LPG pipework, inside and outside buildings.
Cut the copper square, deburr inside and out, and mark the insertion depth so you can see the pipe is fully home before pressing. Use the right size jaws for your tool and keep flux, grease, paint and solvents off the fitting. All gas work has to be done and tested by a Gas Safe registered engineer. Tees and elbows are in our XPress gas copper press fit category.
Specification
- Brand: Pegler Yorkshire
- Range: XPress Copper Gas
- Maker code: SG61
- Material: Copper, with yellow gas seal
- Connection: Single press end, M profile
- Sizes: 108mm, 76.1mm, 66.7mm, 42mm, 35mm, 28mm, 18mm, 54mm, 22mm, 15mm
- Standard/approval: BSI Kitemark to BS 8537, Gastec approved
- Max pressure: 5 bar outside buildings, 1 bar inside
- Max temperature: 70°C (minimum -20°C)
- Suitable for: Above ground natural gas and LPG pipework, inside and outside buildings
Common Questions
How do I tell gas XPress from water XPress? The gas fittings carry a yellow marking and a yellow gas seal. Water fittings have black O-rings and no gas mark.
Can I use XPress Copper Gas Stop End fittings outside? Yes, above ground. The range is approved for internal and external gas pipework, with a lower working pressure inside buildings than outside.
Is it OK for LPG? Yes. The XPress gas range covers natural gas and LPG.
Which press jaws do I need? The standard sizes press with M profile jaws in the matching size. The large sizes need the right jaws or collars for your tool, so check your kit covers them before you start.
Datasheets
Collect from our Glasgow shop at 555 South Street G14 0QX or order online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
| Size |
15mm ,18mm ,22mm ,28mm ,35mm ,42mm ,54mm ,66.7mm ,76.1mm ,108mm |
|---|
