PolyPlumb Tank Connector 15mm to 28mm
Price range: £2.77 through £8.72 inc VAT ( Price range: £2.31 through £7.27 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Polyplumb Tank Connector gives a Push Fit outlet from a cold storage tank or cistern, in 15mm x 1/2″, 22mm x 3/4″ and 28mm x 1″. From Plumb Parts, the Glasgow plumbers merchant.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PB3815 |
|
15mm x 1/2" | £2.77 inc VAT (£2.31 ex VAT) |
-
+
|
£2.77 inc VAT | ||
| PB3822 |
|
22mm x 3/4" | £3.65 inc VAT (£3.04 ex VAT) |
-
+
|
£3.65 inc VAT | ||
| PB3828 |
|
28mm x 1" | £8.72 inc VAT (£7.27 ex VAT) |
-
+
|
£8.72 inc VAT |

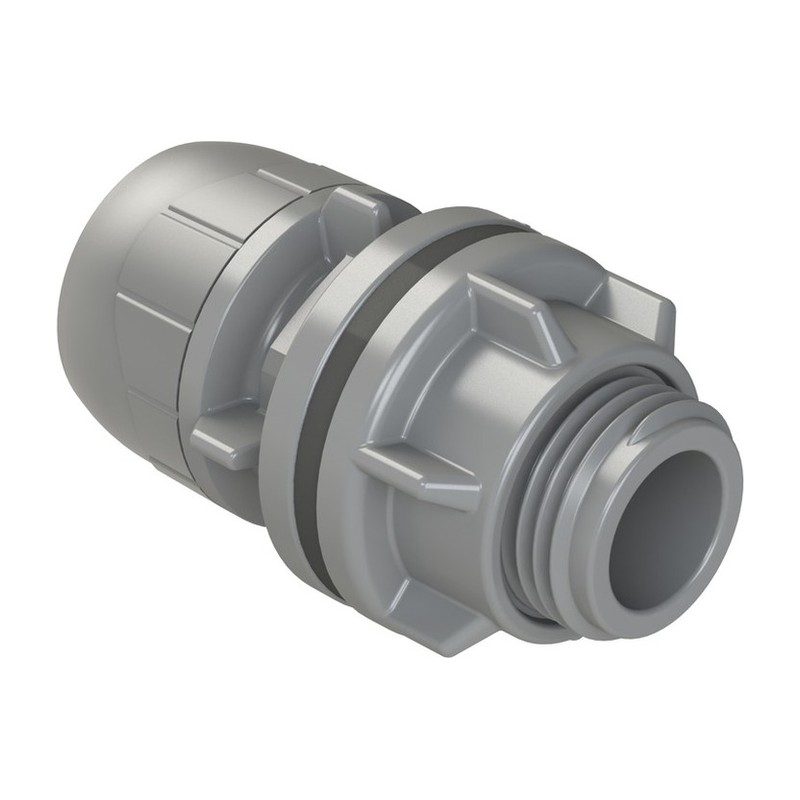

The Polyplumb Tank Connector makes a watertight outlet or inlet through the side of a storage tank or cistern. Its threaded body goes through a cut hole, and the Push Fit socket takes the pipe.
Fitting a Polyplumb Tank Connector
Cold water storage tanks in the loft feed cylinders, baths and other outlets on low pressure systems. Each pipe leaving the tank needs a connector. The 22mm x 3/4″ is the common size for draw offs to a cylinder or bath. The 15mm x 1/2″ suits smaller feeds, and the 28mm x 1″ suits bigger tanks and supplies.
- Sizes: 15mm x 1/2″, 22mm x 3/4″ and 28mm x 1″
- Threaded body through the tank wall
- Back nut and washers to seal the tank
- Polyplumb Push Fit socket for the pipe
Cut the hole with the right size hole saw, so the connector fits snugly. Put a washer on each side of the tank wall, and tighten the back nut firmly without crushing a plastic tank. Keep outlets clear of the tank bottom, so sediment does not get drawn in. Fit a gate valve on each outlet. The full range is in Polyplumb Fittings.
Tank connectors in Glasgow
Find Plumb Parts at 555 South Street, Glasgow G14 0QX. Visit Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or order online.
Specification
- Brand: Polyplumb
- Range: Polyplumb Push Fit
- Maker code: PB3828
- Connection: Threaded body through the tank wall, Push Fit socket
- Sizes: 15mm x 1/2″, 22mm x 3/4″ and 28mm x 1″
- Suitable for: Outlets and inlets on cold water storage tanks and cisterns
- Standard/approval: BS 7291 Class S, Kitemarked, BBA certified
- Guarantee: 50 years
Common Questions
Which tank connector suits a cylinder feed from the loft tank?
The 22mm x 3/4″ is the usual size for draw offs to a cylinder or bath. Use 15mm x 1/2″ for smaller feeds.
How do I seal a tank connector in a plastic tank?
Put a washer on each side of the tank wall and tighten the back nut firmly, but not so hard that it distorts the tank.
How far above the tank bottom should the outlet be?
Keep it clear of the bottom so sediment is not drawn into the pipe. Fit a gate valve on each outlet as well.
Datasheets
| Size |
15mm x 1/2" ,22mm x 3/4" ,28mm x 1" |
|---|
