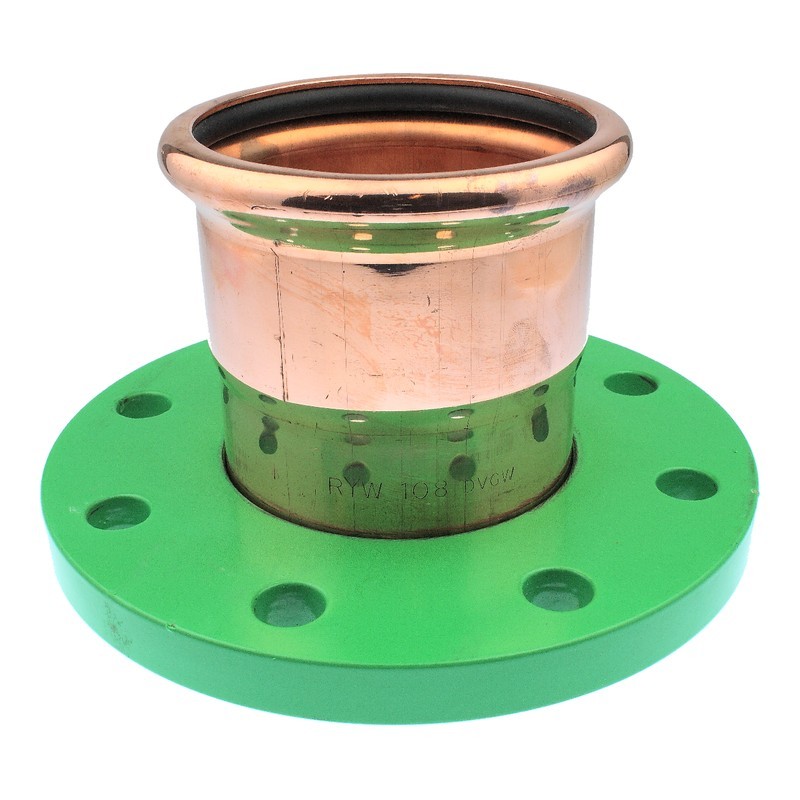

XPRESS YORKSHIRE PRESS-FIT COPPER FEMALE FLANGE PN16 66.7mm to 76.1mm
Price range: £162.54 through £168.32 inc VAT ( Price range: £135.45 through £140.27 ex VAT)
Use the Xpress Yorkshire Press-Fit Copper Female Flange PN16 for bolting large copper onto flanged plant, in 66.7mm and 76.1mm x 3 inch. It is mostly used in plant rooms. Ask about it at Plumb Parts in Glasgow.
| SKU | Thumbnail | SIZE | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| 38365 |
|
76.1mm x 3" | £168.32 inc VAT (£140.27 ex VAT) |
-
+
|
£168.32 inc VAT ({price_excluding_tax} ex VAT) | ||
| 38364 |
|
66.7mm | £162.54 inc VAT (£135.45 ex VAT) |
-
+
|
£162.54 inc VAT ({price_excluding_tax} ex VAT) |
For bolting large copper tube to flanged plant, the Xpress Yorkshire Press-Fit Copper Female Flange PN16 presses onto the pipe and gives you a PN16 flange to bolt up to valves, pumps and other flanged gear. The press end is a standard Xpress socket that takes the tube.
What it’s used for
Think plant rooms, boiler houses and big distribution mains. Pump sets, double regulating valves and strainers in these sizes usually come flanged. This adaptor saves brazing on site and keeps the whole run in Press-Fit, which is quicker and cleaner on a live building.
The flange is part of the Xpress copper system for water, heating and chilled water lines. Don’t use it on gas.
Sizes and fitting tips
It comes in sizes for 66.7mm and 76.1mm copper. A few things to check before you start:
- Confirm the flange you’re mating to is PN16 drilled. Other ratings won’t line up.
- Have the gasket, bolts and nuts ready. They’re separate from the fitting.
- Check your press tool covers these larger sizes.
- Square cut, deburr both edges, and mark the depth so you can see the tube is fully home before you press.
See our Xpress copper Press-Fit section for the male flange, large bore elbows and tees.
Flange adaptors through our Glasgow counter
PN16 female flanges are sold at the Plumb Parts trade counter, 555 South Street, Glasgow G14 0QX, or order online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Specification
- Brand: Pegler Yorkshire
- Range: Xpress Copper
- Connection: Press Fit socket with EPDM seal to PN16 flange
- Sizes: 76.1mm x 3″ and 66.7mm
- Suitable for: Hot and cold water, heating and chilled water on hard and half-hard copper tube; not gas
Common Questions
Will a PN16 flange bolt to PN6 equipment?
No, the bolt holes do not match in many sizes. Check the flange on the valve or pump before ordering.
What pipe sizes is it listed for?
66.7mm and 76.1mm copper tube. These are large commercial sizes and need the right press tooling.
Do I need a gasket and bolts?
Yes, they are separate. Use a gasket and bolt set to suit the PN16 flange and the system.
| SIZE |
76.1mm x 3" ,66.7mm |
|---|
Related products

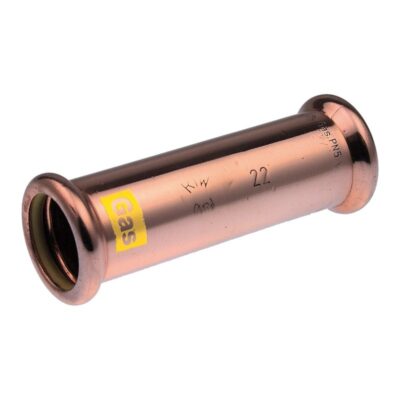

PEGLER YORKSHIRE EXPRESS PRESS-FIT GAS COPPER SLIP COUPLING 15mm to 108mm
