XPress Yorkshire Press-Fit Copper Full Crossover 15mm to 28mm

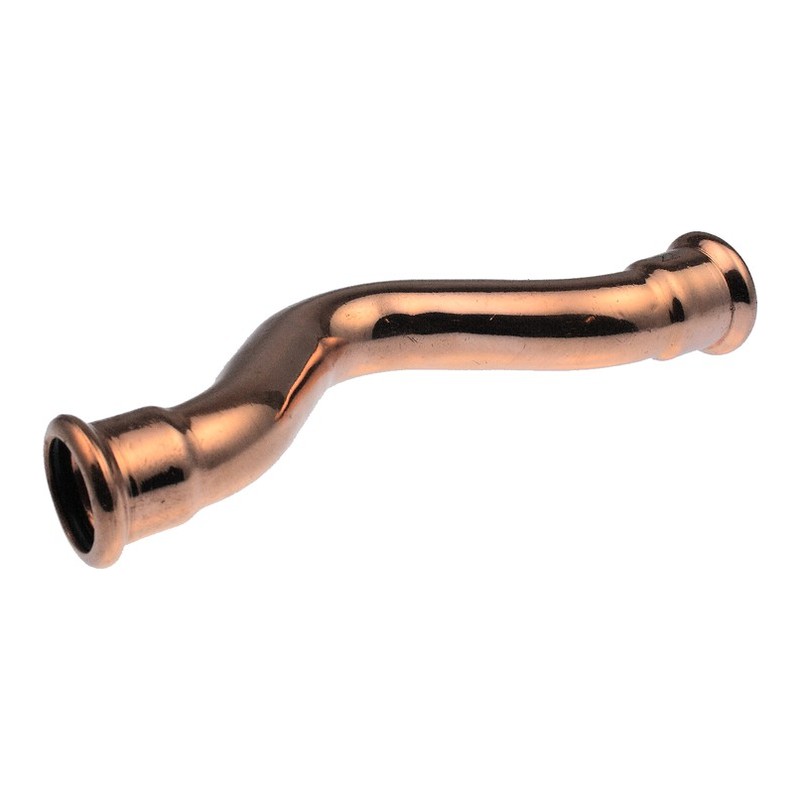

Xpress Yorkshire Press-Fit Copper Full Crossover

This is a full crossover for water and heating copper, made in 15mm, 22mm and 28mm.

It takes a pipe up and over another run laid at the same height and returns it to level, so both ends finish in line. A partial crossover only steps to one side, for pipes that are not quite in line. The three sizes cover most domestic heating and water runs.

Browse the whole Xpress Yorkshire Press-Fit Fittings range at Plumb Parts, running from 12mm up to 108mm.

Alongside this one, the Xpress Yorkshire Press-Fit system takes in: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Male Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Back plate Elbows, Copper Long Pattern BackPlate Elbows, Copper 90deg Bends, Copper 45 deg Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.

A straightforward choice for homes, shops and plant rooms: Xpress copper is pressed, not soldered, so installation is fast and heat-free.

Xpress copper at a glance

• Approved to BS 8537:2010 with BSI Kitemark certification
• Handles temperatures from -20°C to 110°C
• Rated at 16 bar throughout that temperature range
• The Leak Before Press feature makes unpressed fittings show themselves during testing
• A broad list of British and international approvals applies
• Faster to install than traditional jointing, with less labour
• No flame needed, so no hot works permit or extra insurance is required

Specification

• Brand: Pegler Yorkshire
• Range: Xpress Copper (water)
• Maker code: 38440 (15mm), 38441 (22mm)
• Material: Copper
• Connection: Press Fit ends with EPDM O rings
• Sizes: 15mm, 22mm and 28mm
• Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
• Max pressure: 16 bar
• Suitable for: Water services on hard and half-hard copper tube
• Max temperature: -20°C to +110°C

Common Questions

What does a full crossover do?

It cranks a pipe up and back down so it can pass over another run laid at the same height. Both ends finish in line.

Full or partial crossover?

A full crossover keeps both ends level with each other. A partial one only steps to one side, for when the pipes are not quite in line.

What sizes can I get the full crossover in?

We list 15mm, 22mm and 28mm, which covers most domestic heating and water runs.

Plumb Parts, 555 South Street, Glasgow G14 0QX. Collect in store or have it delivered. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.

Datasheets

• Pegler XPress S23 Product Datasheet (PDF)
• VSH XPress Installation Instructions (PDF)
