XPRESS YORKSHIRE PRESS-FIT COPPER STOP END 15mm to 76.1mm
Price range: £5.03 through £63.60 inc VAT ( Price range: £4.19 through £53.00 ex VAT)

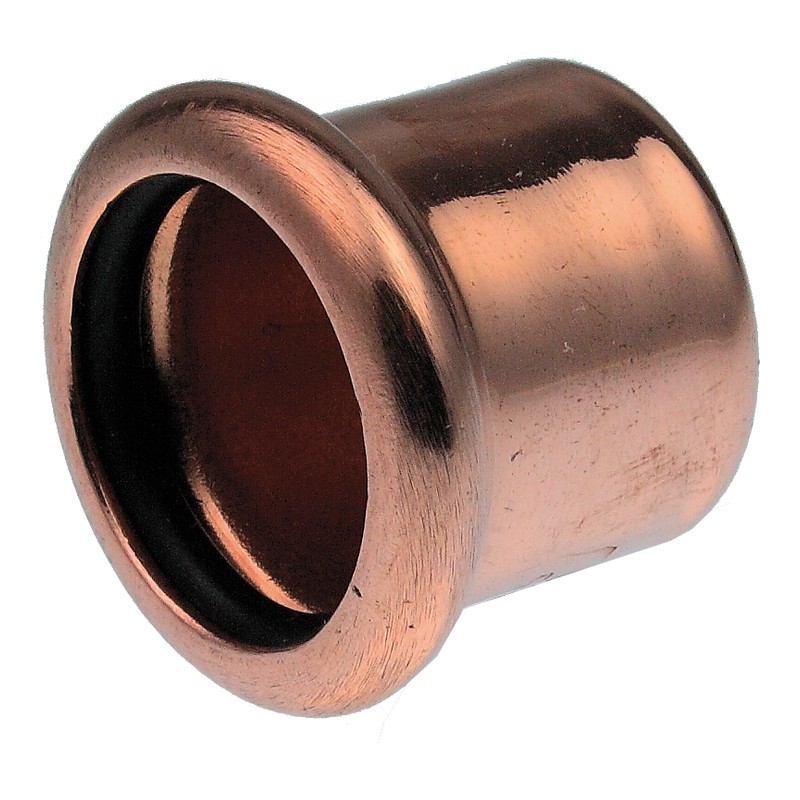

The Xpress Yorkshire Press-Fit Copper Stop End caps copper pipe with one press, in sizes from 15mm to 76.1mm. Use it to blank off a dead leg. Available at Plumb Parts in Glasgow.
| SKU | Thumbnail | SIZE | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYSTOP15 |
|
15mm | £5.03 inc VAT (£4.19 ex VAT) |
-
+
|
£5.03 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYSTOP22 |
|
22mm | £5.78 inc VAT (£4.82 ex VAT) |
-
+
|
£5.78 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYSTOP28 |
|
28mm | £9.44 inc VAT (£7.87 ex VAT) |
-
+
|
£9.44 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYSTOP35 |
|
35mm | £16.74 inc VAT (£13.95 ex VAT) |
-
+
|
£16.74 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYSTOP42 |
|
42mm | £25.30 inc VAT (£21.08 ex VAT) |
-
+
|
£25.30 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYSTOP54 |
|
54mm | £30.17 inc VAT (£25.14 ex VAT) |
-
+
|
£30.17 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYSTOP66 |
|
66.7mm | £58.33 inc VAT (£48.61 ex VAT) |
-
+
|
£58.33 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYSTOP76 |
|
76.1mm | £63.60 inc VAT (£53.00 ex VAT) |
-
+
|
£63.60 inc VAT ({price_excluding_tax} ex VAT) |
The Xpress Yorkshire Press-Fit Copper Stop End caps off a copper pipe with one press. Slide it onto the tube, press it, and the end is sealed. No flame, no flux, and no wait for it to cool.
What it’s used for
Use it for blanking off a dead leg after a strip-out, capping a tee you’ll come back to, or closing off a run on first fix so you can pressure test the rest. It is also useful on heating systems when a radiator has been taken off for good and you want a proper permanent cap rather than a Compression blank.
Like other Xpress copper fittings, this stop end is used on water supplies, vented or sealed heating and chilled water. For gas, use the Xpress Gas range.
Sizes available
15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm and 76.1mm. That covers domestic pipework through to large commercial mains.
Fitting tips
- Cut the pipe square and deburr it so the O-ring isn’t damaged.
- Mark the insertion depth and push the cap on until it reaches the mark.
- Leak Before Press means an unpressed cap will show itself when the system is tested, so you’ll know if one’s been missed.
Find couplers, tees and elbows in our Xpress copper Press-Fit fittings.
Press-Fit stop ends in Glasgow
Come by the Plumb Parts trade counter at 555 South Street, Glasgow G14 0QX, or order online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Specification
- Brand: Pegler Yorkshire
- Range: Xpress Copper
- Maker code: S61
- Material: Copper (Cu-DHP)
- Connection: Press Fit with EPDM seal
- Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm and 76.1mm
- Standard or approval: EN 1254-7 press fittings, BSI certificate KM 789225 (water fittings)
- Max pressure: 16 bar
- Suitable for: Hot and cold water, heating and chilled water on hard and half-hard copper tube; not gas
Common Questions
Can a press stop end be removed?
No, a pressed stop end is permanent. Cut behind it to extend the pipe later.
Is a press stop end better than a Compression blank?
It is a permanent cap with no nut to work loose, which suits dead legs and capped heating tails. A Compression blank can be undone later.
Can I pressure test against a stop end?
Yes, that is a common first fix use. Press it fully and check the depth mark first.
| SIZE |
15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,66.7mm ,76.1mm |
|---|
