XPress Yorkshire Press-Fit Gas Copper Female Branch Tee 15mm to 54mm
Price range: £17.59 through £73.52 inc VAT ( Price range: £14.66 through £61.27 ex VAT)
✓ In Stock
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

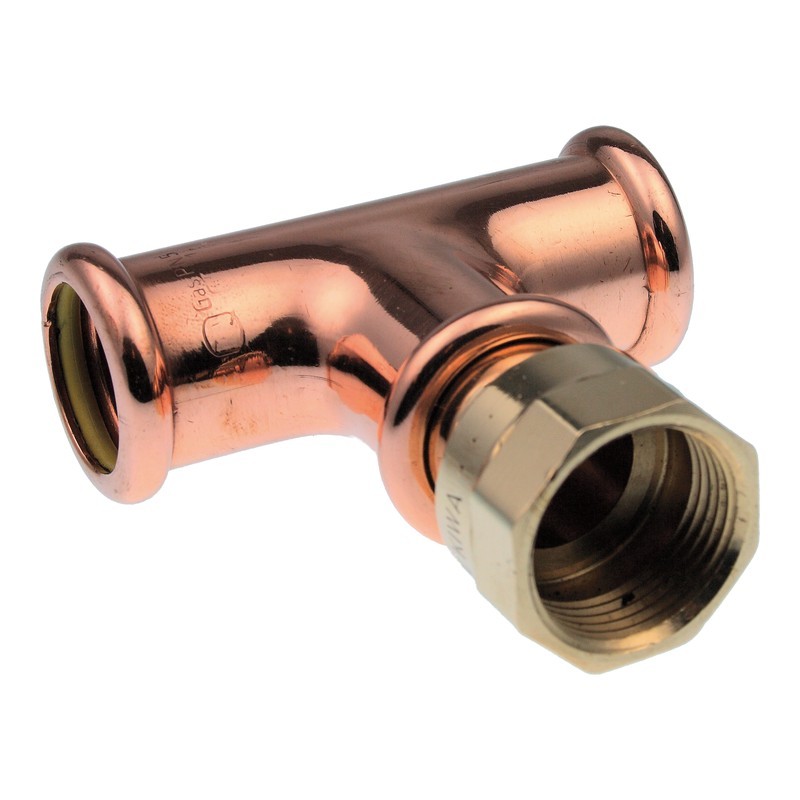

The Xpress Yorkshire Press-Fit Gas Copper Female Branch Tee comes with press run ends and a 1/2 inch female branch, from 15mm to 54mm. It gives a threaded take-off on gas pipe. From Plumb Parts in Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYGT1515D |
|
15mm x 15mm x 1/2" | £17.59 inc VAT (£14.66 ex VAT) |
-
+
|
£17.59 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYGT2222D |
|
22mm x 22mm x 1/2" | £24.49 inc VAT (£20.41 ex VAT) |
-
+
|
£24.49 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYGT2828D |
|
28mm x 28mm x 1/2" | £37.67 inc VAT (£31.39 ex VAT) |
-
+
|
£37.67 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYGT3535D |
|
35mm x 35mm x 1/2" | £41.22 inc VAT (£34.35 ex VAT) |
-
+
|
£41.22 inc VAT ({price_excluding_tax} ex VAT) | ||
| PYGT5454D |
|
54mm x 54mm x 1/2" | £73.52 inc VAT (£61.27 ex VAT) |
-
+
|
£73.52 inc VAT ({price_excluding_tax} ex VAT) |
The Xpress Yorkshire Press-Fit Gas Copper Female Branch Tee is a Press-Fit tee for gas pipework, with press ends on the copper run and a 1/2″ female BSP threaded branch. Yellow gas markings set it apart from the water fittings.
What it’s used for
It takes a threaded connection off a gas run, for a test point, a meter outlet arrangement, or a threaded valve or appliance connection. The range is for above-ground second and third family gases, which covers natural gas and LPG, in internal and external pipework.
Only a Gas Safe registered engineer should install it. Once the joints are made, the pipework needs a tightness test before anything goes back into use.
Sizes available
- 15mm x 15mm x 1/2″
- 22mm x 22mm x 1/2″
- 28mm x 28mm x 1/2″
- 35mm x 35mm x 1/2″
- 54mm x 54mm x 1/2″
Fitting tips
- Keep paint, flux, grease, solvents and lagging adhesives off the fittings.
- Leave the yellow marking on show so the next engineer can see what the pipe carries.
- Make the threaded connection before pressing, and use a gas-rated thread sealant.
Gas tees, elbows and couplers sit together in our Xpress Press-Fit gas copper fittings.
Gas press fittings in Glasgow
Gas female branch tees are sold at Plumb Parts, 555 South Street, Glasgow G14 0QX, or ordered online. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Specification
- Brand: Pegler Yorkshire
- Range: Xpress Gas Copper
- Maker code: SG30
- Material: Copper (Cu-DHP)
- Connection: Press Fit with yellow HNBR seal on the run, 1/2″ female BSP thread on the branch
- Sizes: 15mm x 15mm x 1/2″, 22mm x 22mm x 1/2″, 28mm x 28mm x 1/2″, 35mm x 35mm x 1/2″ and 54mm x 54mm x 1/2″
- Standard or approval: EN 1254-7 press fittings, BSI certificate KM 789225 (gas fittings)
- Max pressure: 5 bar MOP above ground outside; 1 bar inside buildings covered by fire regulations
- Max temperature: 70°C (range -20°C to +70°C)
- Suitable for: Natural gas and LPG pipework in copper, fitted by a Gas Safe registered engineer
Common Questions
Can I fit Xpress Gas fittings myself?
No. Fitting an Xpress Gas branch tee is legally a job for someone on the Gas Safe register, who then tightness tests the pipework.
How can I tell a gas press fitting from a water one?
Xpress Gas fittings carry yellow markings and a yellow HNBR seal. The water fittings use EPDM and have different marking.
Is the branch always 1/2 inch?
On this listing, yes. The runs go from 15mm to 54mm, and each one has a 1/2″ female branch.
| Size |
15mm x 15mm x 1/2" ,22mm x 22mm x 1/2" ,28mm x 28mm x 1/2" ,35mm x 35mm x 1/2" ,54mm x 54mm x 1/2" |
|---|
