XPress Yorkshire Press-Fit Gas Copper Straight Female Coupler 15mm to 54mm
Price range: £14.57 through £123.96 inc VAT ( Price range: £12.14 through £103.30 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Gas female coupler to take copper pipe onto a male threaded valve or meter, 15mm x 1/2″ up to 54mm x 2″. Plumb Parts, South Street, Glasgow, can have one ready for collection.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PYGFC15D |
|
15mm x 1/2" | £14.57 inc VAT (£12.14 ex VAT) |
-
+
|
£14.57 inc VAT | ||
| PYGFC15E |
|
15mm x 3/4" | £15.29 inc VAT (£12.74 ex VAT) |
-
+
|
£15.29 inc VAT | ||
| PYGFC22D |
|
22mm x 1/2" | £22.54 inc VAT (£18.78 ex VAT) |
-
+
|
£22.54 inc VAT | ||
| PYGFC22E |
|
22mm x 3/4" | £19.21 inc VAT (£16.01 ex VAT) |
-
+
|
£19.21 inc VAT | ||
| PYGFC28F |
|
28mm x 1” | £25.91 inc VAT (£21.59 ex VAT) |
-
+
|
£25.91 inc VAT | ||
| PYGFC35G |
|
35mm x 1.1/4” | £50.56 inc VAT (£42.13 ex VAT) |
-
+
|
£50.56 inc VAT | ||
| PYGFC42H |
|
42mm x 1.1/2” | £72.31 inc VAT (£60.26 ex VAT) |
-
+
|
£72.31 inc VAT | ||
| PYGFC54I |
|
54mm x 2” | £123.96 inc VAT (£103.30 ex VAT) |
-
+
|
£123.96 inc VAT |

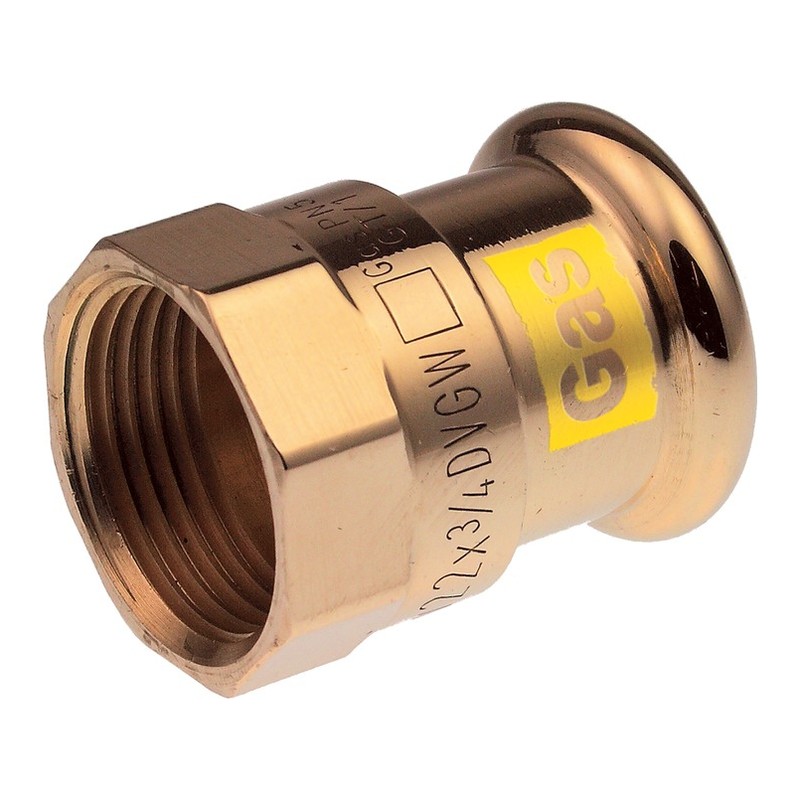

Xpress Yorkshire Press-Fit Gas Copper Straight Female Coupler
This is a gas straight female coupler, with a Press Fit end on the tube side and a female thread on the other. It is made in 15mm x 1/2″, 15mm x 3/4″, 18mm x 1/2″, 18mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 28mm x 1″, 28mm x 1.1/4″, 35mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″.
It joins copper tube to a male threaded fitting in a straight line. Check the connection on the appliance or valve first to settle the thread size. A Gas Safe registered engineer fits it and finishes with a tightness test on the pipework.
Plumb Parts stocks the full Xpress Yorkshire Press-Fit Fittings range, in sizes from 12mm to 108mm.
Other fitting types in the Xpress Yorkshire Press-Fit system: Copper Straight Couplers, Copper Reducing Couplers, Copper Straight Coupling Slips, Gas Copper Straight Female Connectors, Copper Straight Male Connectors, Copper Reducers, Copper Female Adaptors, Copper Male Adaptors, Copper Union Coupling, Copper Equal Elbows, Copper Reduced Elbows, Copper Street Elbows, Copper Knuckle Elbows, Copper Male Elbows, Copper Female Elbows, Copper Backplate Elbows, Copper Long Pattern BackPlate Elbows, Copper Bends, Copper Obtuse Elbows, Copper Obtuse Street Elbows, Copper Crossover, Copper Partial Crossovers, Copper Full Crossovers, Copper Equal Tees, Copper Reduced Branch tees, Copper One End Reduced Tees, Copper One End Reduced And End Branch reduced Tees, Copper Both End Reduced Tees, Copper Copper Female Branch Tees, Copper Multi Port Female Branch Tees, Copper Stop Ends, Copper Unions, Copper Straight Male Union Connectors, Copper Straight Female Union Connectors.
A straightforward choice for homes, shops and plant rooms: Xpress copper is pressed, not soldered, so installation is fast and heat-free.
Xpress copper at a glance
- Temperature range of -20°C to 110°C
- Holds a 16 bar pressure rating across the whole temperature span
- Leak Before Press design means a missed joint is picked up at the test stage
- BS 8537:2010 compliant and BSI Kitemark approved
- Quick to joint, which saves time and labour against traditional methods
- Heat-free jointing means hot works permits and the related insurance are not needed
- A broad list of British and international approvals applies
- Where pipes are on view, a chrome plated range is available
The figures above describe the wider Xpress copper system. For gas fittings, work to the pressure and temperature limits given in the Specification below.
Specification
- Brand: Pegler Yorkshire
- Range: Xpress Copper Gas
- Maker code: 39720 (15mm x 1/2″), 39721 (15mm x 3/4″), 39716 (18mm x 1/2″), 39722 (22mm x 1/2″), 39723 (22mm x 3/4″), 39724 (28mm x 1”), 39725 (35mm x 1.1/4”), 39726 (42mm x 1.1/2”), 39727 (54mm x 2”)
- Connection: Press Fit end to female thread
- Sizes: 15mm x 1/2″, 15mm x 3/4″, 18mm x 1/2″, 18mm x 3/4″, 22mm x 1/2″, 22mm x 3/4″, 28mm x 1″, 28mm x 1.1/4″, 35mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″
- Standard or approval: BS EN 1254-7 (BSI Kitemark KM 789225)
- Max pressure: 5 bar on external above-ground pipework; 1 bar inside buildings subject to fire regulations
- Suitable for: Gas pipework on hard and half-hard copper tube, fitted by a Gas Safe registered engineer
- Max temperature: -20°C to +70°C
Common Questions
What does a gas female coupler join?
Copper tube to a male threaded fitting, in a straight line.
Which size for an appliance?
Check the connection on the appliance or valve first.
Who should fit a gas coupler?
A Gas Safe registered engineer. The job finishes with a tightness test on the pipework.
Plumb Parts, 555 South Street, Glasgow G14 0QX. Collect in store or have it delivered. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Datasheets
| Size |
15mm x 1/2" ,15mm x 3/4" ,18mm x 1/2" ,18mm x 3/4" ,22mm x 1/2" ,22mm x 3/4" ,28mm x 1” ,28mm x 1.1/4” ,35mm x 1.1/4” ,42mm x 1.1/2” ,54mm x 2” |
|---|
