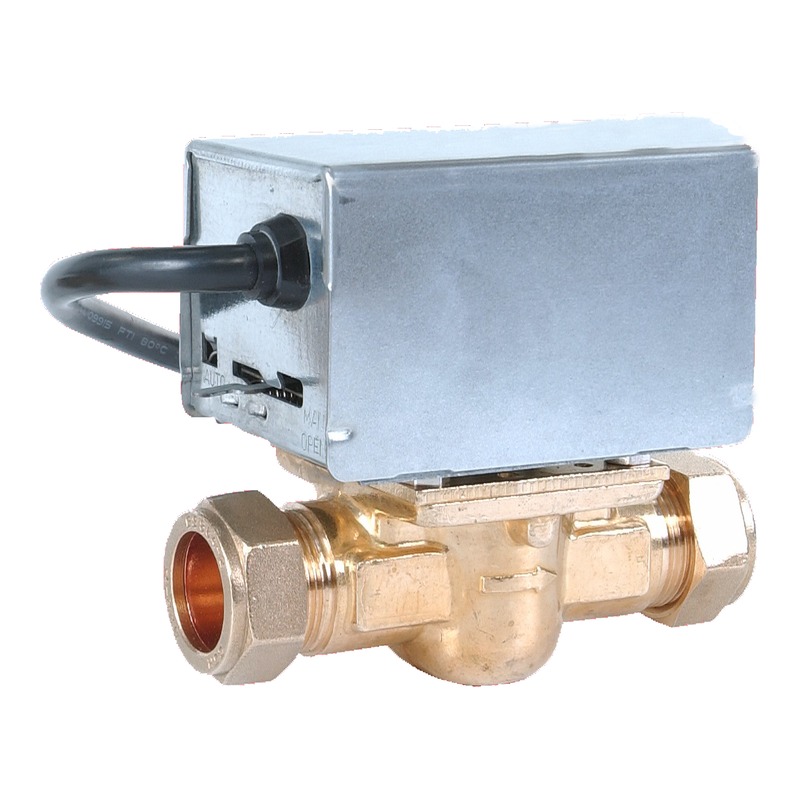

Banico Motorised Zone Valve 2 Port and 3 Port 1/2 Inch to 1 Inch

The Banico Motorised Zone Valve opens and closes a heating or hot water zone when the programmer or thermostat calls for it. We carry the full Banico range: ZV 2 port zone valves, ZVM 3 port mid position valves and ZVD 3 port diverter valves, in 1/2, 3/4 and 1 inch female BSP, 22mm and 28mm compression, and 3/4 and 1 inch compression for imperial pipe. Most come with a metal or a plastic cover, and the 2 port also comes with an indicating light so you can see when it is open.

The 2 port valve is spring return, so it closes when the power drops. The ZVM sits where the flow splits on a Y plan system and can feed heating and hot water together. The ZVD diverter feeds one or the other. Banico fit a 1m five core cable in standard colours and a 3A auxiliary switch for the boiler and pump. We also sell the H-ZV replacement heads in metal and plastic for the 2 port, mid position and diverter valves, and Banico say the 2 port head fits Banico, Honeywell and Tower 2 port bodies.

The valve runs on mains voltage. Isolate the supply and wire it to the system diagram, or have a competent heating engineer do it.

Specification

• Brand: Banico
• Maker code: ZV1/2 (2 Port x 1/2 Inch BSP), ZV1/2P (2 Port x 1/2 Inch BSP Plastic Cover), ZV1/2L (2 Port x 1/2 Inch BSP With Light), ZVM1/2 (3 Port x 1/2 Inch BSP), ZVM1/2P (3 Port x 1/2 Inch BSP Plastic Cover), ZVD1/2 (3 Port x 1/2 Inch BSP Diverter), ZVD1/2P (3 Port x 1/2 Inch BSP Diverter Plastic Cover), ZV22 (2 Port x 22mm), ZV22P (2 Port x 22mm Plastic Cover), ZV22L (2 Port x 22mm With Light), ZVM22 (3 Port x 22mm), ZVM22P (3 Port x 22mm Plastic Cover), ZVD22 (3 Port x 22mm Diverter), ZVD22P (3 Port x 22mm Diverter Plastic Cover), ZV3/4C (2 Port x 3/4 Inch Compression), ZV3/4CP (2 Port x 3/4 Inch Compression Plastic Cover), ZV3/4CL (2 Port x 3/4 Inch Compression With Light), ZV3/4 (2 Port x 3/4 Inch BSP), ZV3/4P (2 Port x 3/4 Inch BSP Plastic Cover), ZV3/4L (2 Port x 3/4 Inch BSP With Light), ZVM3/4 (3 Port x 3/4 Inch BSP), ZVM3/4P (3 Port x 3/4 Inch BSP Plastic Cover), ZVD3/4 (3 Port x 3/4 Inch BSP Diverter), ZVD3/4P (3 Port x 3/4 Inch BSP Diverter Plastic Cover), ZV28 (2 Port x 28mm), ZV28P (2 Port x 28mm Plastic Cover), ZV28L (2 Port x 28mm With Light), ZVM28 (3 Port x 28mm), ZVM28P (3 Port x 28mm Plastic Cover), ZVD28 (3 Port x 28mm Diverter), ZVD28P (3 Port x 28mm Diverter Plastic Cover), ZV1C (2 Port x 1 Inch Compression), ZV1CP (2 Port x 1 Inch Compression Plastic Cover), ZV1CL (2 Port x 1 Inch Compression With Light), ZV1 (2 Port x 1 Inch BSP), ZV1P (2 Port x 1 Inch BSP Plastic Cover), ZV1L (2 Port x 1 Inch BSP With Light), ZVM1 (3 Port x 1 Inch BSP), ZVM1P (3 Port x 1 Inch BSP Plastic Cover), ZVD1 (3 Port x 1 Inch BSP Diverter), ZVD1P (3 Port x 1 Inch BSP Diverter Plastic Cover), H-ZV (2 Port Replacement Head), H-ZVP (2 Port Replacement Head Plastic), H-ZVM (3 Port Replacement Head), H-ZVMP (3 Port Replacement Head Plastic), H-ZVD (3 Port Diverter Replacement Head), H-ZVDP (3 Port Diverter Replacement Head Plastic)
• Type: 2 port spring return, 3 port mid position, 3 port diverter
• Connection: Female BSP (1/2, 3/4 and 1 inch), compression (22mm and 28mm) or compression for imperial pipe (3/4 and 1 inch)
• Cover: Metal or plastic; 2 port also with indicating light
• Power supply: 230V AC, 6W
• Auxiliary switch: 3A 250V AC
• Cable: 1m, 5 core
• Maximum static pressure: 8.6 bar
• Closing pressure: 0.8 bar (2 port)
• Water temperature: 5 to 88°C
• Ambient temperature: up to 60°C
• Sizes: 2 Port x 1/2 Inch BSP, 2 Port x 1/2 Inch BSP Plastic Cover, 2 Port x 1/2 Inch BSP With Light, 3 Port x 1/2 Inch BSP, 3 Port x 1/2 Inch BSP Plastic Cover, 3 Port x 1/2 Inch BSP Diverter, 3 Port x 1/2 Inch BSP Diverter Plastic Cover, 2 Port x 22mm, 2 Port x 22mm Plastic Cover, 2 Port x 22mm With Light, 3 Port x 22mm, 3 Port x 22mm Plastic Cover, 3 Port x 22mm Diverter, 3 Port x 22mm Diverter Plastic Cover, 2 Port x 3/4 Inch Compression, 2 Port x 3/4 Inch Compression Plastic Cover, 2 Port x 3/4 Inch Compression With Light, 2 Port x 3/4 Inch BSP, 2 Port x 3/4 Inch BSP Plastic Cover, 2 Port x 3/4 Inch BSP With Light, 3 Port x 3/4 Inch BSP, 3 Port x 3/4 Inch BSP Plastic Cover, 3 Port x 3/4 Inch BSP Diverter, 3 Port x 3/4 Inch BSP Diverter Plastic Cover, 2 Port x 28mm, 2 Port x 28mm Plastic Cover, 2 Port x 28mm With Light, 3 Port x 28mm, 3 Port x 28mm Plastic Cover, 3 Port x 28mm Diverter, 3 Port x 28mm Diverter Plastic Cover, 2 Port x 1 Inch Compression, 2 Port x 1 Inch Compression Plastic Cover, 2 Port x 1 Inch Compression With Light, 2 Port x 1 Inch BSP, 2 Port x 1 Inch BSP Plastic Cover, 2 Port x 1 Inch BSP With Light, 3 Port x 1 Inch BSP, 3 Port x 1 Inch BSP Plastic Cover, 3 Port x 1 Inch BSP Diverter, 3 Port x 1 Inch BSP Diverter Plastic Cover, 2 Port Replacement Head, 2 Port Replacement Head Plastic, 3 Port Replacement Head, 3 Port Replacement Head Plastic, 3 Port Diverter Replacement Head, 3 Port Diverter Replacement Head Plastic

Common Questions

Do I need a 2 port or a 3 port valve?

Go by the system you have. Separate valves on the heating and hot water legs is an S plan, so 2 port. One valve where the flow splits is a Y plan, so 3 port mid position.

What is the difference between a diverter and a mid position valve?

A diverter feeds heating or hot water but never both at once. A mid position valve can feed both together, so check what the old valve was before swapping.

What is the 3/4 inch or 1 inch compression valve for?

It suits older imperial copper pipe. If your pipe is threaded, take the BSP valve instead.

Can I just change the head?

Often, yes. If the brass body is sound and not passing, a new head is the quicker job and the system does not need drained down.

Can I collect a Banico motorised valve today in Glasgow?

Yes. Order online and call 0141 404 5128 to arrange collection at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.
