Honeywell Motorised Valve Diverter, BSP and Normally Open 22mm to 1 Inch

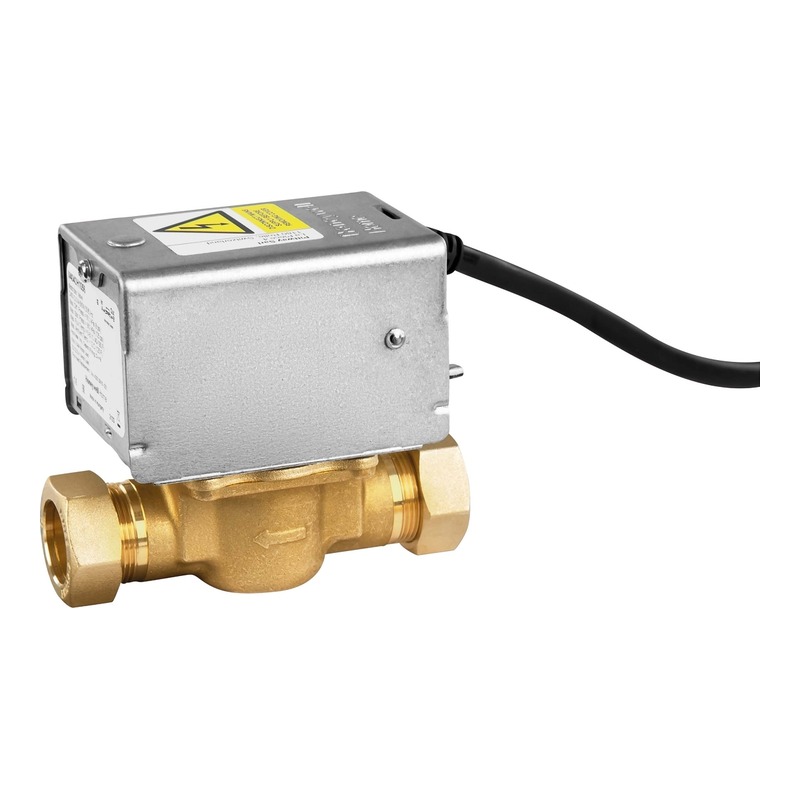

This listing carries the Honeywell Home motorised valves outside the everyday 22mm and 28mm 2 port and 3 port mid position valves, which have their own page. We sell the V4043B normally open 2 port valve in 22mm and 28mm, the V4043C and V4043H 2 port valves with female BSP threads from 1/2 inch to 1 inch, the V4044C 3 port diverter in 22mm, 28mm and 3/4 inch BSP, the V4073A 1 inch BSP mid position valve, and the three replacement powerheads.

A normally open valve stays open with the power off and closes when powered, the opposite of the usual zone valve. A diverter sends water to heating or hot water, one at a time, so it suits hot water priority systems. The BSP valves screw onto threaded pipework rather than using compression nuts. The powerheads lift off the brass body, so a dead head can be changed without draining down.

The valve runs on mains voltage. Isolate the supply and wire it to the system diagram, or have a competent heating engineer do it.

Specification

• Brand: Honeywell Home (Resideo)
• Maker code: V4043B1257/U (2 Port x 22mm Normally Open), V4043B1265/U (2 Port x 28mm Normally Open), V4043C1156/U (2 Port x 1/2 Inch BSP, no auxiliary switch), V4043H1007/U (2 Port x 3/4 Inch BSP), V4043H1080/U (2 Port x 1 Inch BSP), V4044C1288/U (3 Port Diverter x 22mm), V4044C1569/U (3 Port Diverter x 28mm), V4044C1098/U (3 Port Diverter x 3/4 Inch BSP), V4073A1062/U (3 Port Mid Position x 1 Inch BSP), 40003916-001/U (V4043H powerhead), 40003916-002/U (V4044C powerhead), 40003916-003/U (V4073A powerhead)
• Type: 2 port normally open, 2 port normally closed spring return, 3 port diverter, 3 port mid position
• Connection: Compression (22mm, 28mm) or female BSP (1/2, 3/4 and 1 inch)
• Power supply: 230V AC 50Hz, 6W
• Maximum static pressure: 8.6 bar
• Water temperature: 5 to 88°C
• Ambient temperature: 5 to 52°C
• Cable: 1m
• Sizes: 2 Port x 22mm Normally Open, 2 Port x 28mm Normally Open, 2 Port x 1/2 Inch BSP No Switch, 2 Port x 3/4 Inch BSP, 2 Port x 1 Inch BSP, 3 Port Diverter x 22mm, 3 Port Diverter x 28mm, 3 Port Diverter x 3/4 Inch BSP, 3 Port Mid Position x 1 Inch BSP, 2 Port Replacement Powerhead V4043H, 3 Port Diverter Replacement Powerhead V4044C, 3 Port Mid Position Replacement Powerhead V4073A

Common Questions

What does normally open mean?

The valve is open when there is no power and closes when the thermostat or programmer powers it. Only fit one where the system was designed for it.

What is the difference between a diverter and a mid position valve?

A diverter feeds heating or hot water but never both at once. A mid position valve can feed both together, so check what the old valve was before swapping.

Can I just change the head?

Often, yes. If the brass body is sound and not passing, a new powerhead is the quicker job and the system does not need drained down.
