EPH Motorised Valve 2 Port and 3 Port 22mm to 1 1/4 Inch
Price range: £54.59 through £201.95 inc VAT ( Price range: £45.49 through £168.29 ex VAT)
✓ In Stock
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
EPH Controls motorised valves in 2 port 22mm, 28mm and 1 1/4 inch BSP and 3 port 22mm and 28mm, with a detachable head and cable. Collect from 555 South Street, Glasgow G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| V222P |
|
2 Port x 22mm | £68.62 inc VAT (£57.18 ex VAT) |
-
+
|
£68.62 inc VAT ({price_excluding_tax} ex VAT) | ||
| V228P |
|
2 Port x 28mm | £108.23 inc VAT (£90.19 ex VAT) |
-
+
|
£108.23 inc VAT ({price_excluding_tax} ex VAT) | ||
| V232FP |
|
2 Port x 1 1/4 Inch BSP Female | £201.95 inc VAT (£168.29 ex VAT) |
-
+
|
£201.95 inc VAT ({price_excluding_tax} ex VAT) | ||
| B322PF |
|
3 Port x 22mm | £100.52 inc VAT (£83.77 ex VAT) |
-
+
|
£100.52 inc VAT ({price_excluding_tax} ex VAT) | ||
| B322MID |
|
3 Port x 22mm Mid Position High Flow | £129.36 inc VAT (£107.80 ex VAT) |
-
+
|
£129.36 inc VAT ({price_excluding_tax} ex VAT) | ||
| B328PF |
|
3 Port x 28mm | £123.89 inc VAT (£103.24 ex VAT) |
-
+
|
£123.89 inc VAT ({price_excluding_tax} ex VAT) | ||
| B328DIV |
|
3 Port x 28mm Diverter High Flow | £117.47 inc VAT (£97.89 ex VAT) |
-
+
|
£117.47 inc VAT ({price_excluding_tax} ex VAT) | ||
| DT1P |
|
2 Port Replacement Head for Drayton | £54.59 inc VAT (£45.49 ex VAT) |
-
+
|
£54.59 inc VAT ({price_excluding_tax} ex VAT) | ||
| C1P |
|
2 Port Replacement Head for Honeywell | £63.35 inc VAT (£52.79 ex VAT) |
-
+
|
£63.35 inc VAT ({price_excluding_tax} ex VAT) |

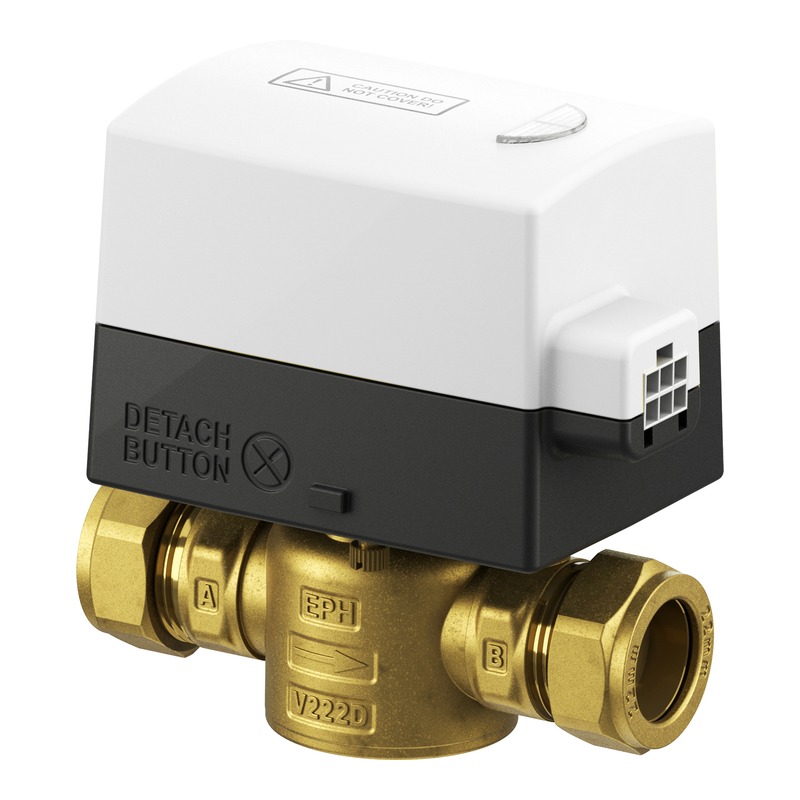

The EPH Motorised Valve switches heating and hot water on a domestic system when the programmer or thermostat calls for it. We sell it as 2 Port x 22mm, 2 Port x 28mm, 2 Port x 1 1/4 Inch BSP Female, 3 Port x 22mm and 3 Port x 28mm, the high flow B322MID mid position and B328DIV diverter, and EPH replacement heads that fit Drayton and Honeywell 2 port bodies.
The 2 port valves open on power and spring back shut when it goes off, with a manual lever for filling and draining. The 3 port valves work as mid position or diverter depending on how they are wired. EPH fit a detach button on the head and a detachable 1.2m cable, so changing a head or a lead is a quick job, and a light shows when the valve has power. The 1 1/4 inch valve has female BSP threads rather than compression ends.
The valve runs on mains voltage and needs an earth. Isolate the supply and wire it to the system diagram, or have a competent heating engineer do it.
Specification
- Brand: EPH Controls
- Maker code: V222P (2 Port x 22mm), V228P (2 Port x 28mm), V232FP (2 Port x 1 1/4 Inch BSP Female), B322PF (3 Port x 22mm), B322MID (3 Port x 22mm Mid Position High Flow), B328PF (3 Port x 28mm), B328DIV (3 Port x 28mm Diverter High Flow), DT1P (2 port head for Drayton ZA5/679-2 and ZA6/779-2), C1P (2 port head for Honeywell V4043)
- Type: 2 port spring return, 3 port mid position or diverter
- Connection: Compression (22mm, 28mm), female BSP (1 1/4 inch)
- Power supply: 230V, 5W
- Auxiliary contact: 11(3)A 230V AC (2 port), 5(2)A 230V AC (3 port)
- Maximum static pressure: 21 bar
- Water temperature: 2 to 88°C
- Cable: 1.2m detachable
- Enclosure: IP20
- Replacement head: D1PF (3 port)
- Standard: EN60730
- Sizes: 2 Port x 22mm, 2 Port x 28mm, 2 Port x 1 1/4 Inch BSP Female, 3 Port x 22mm, 3 Port x 22mm Mid Position High Flow, 3 Port x 28mm, 3 Port x 28mm Diverter High Flow, 2 Port Replacement Head for Drayton, 2 Port Replacement Head for Honeywell
Common Questions
Do I need a 2 port or a 3 port valve?
Go by the system you have. Separate valves on the heating and hot water legs is an S plan, so 2 port. One valve where the flow splits is a Y plan, so 3 port mid position.
Can the EPH 3 port valve be used as a diverter?
Yes. EPH say the B322PF and B328PF work as a mid position valve or a diverter, depending on how they are wired.
Can I collect a EPH motorised valve today in Glasgow?
Yes. Order online and use free Click and Collect at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.
Order online and collect free from Plumb Parts, 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Free delivery on orders over £250. Unused items in their packaging can be returned within 14 days. Heating engineers and plumbers can ask at the counter about a trade account.
| Size |
2 Port Replacement Head for Drayton ,2 Port Replacement Head for Honeywell ,2 Port x 1 1/4 Inch BSP Female ,3 Port x 22mm Mid Position High Flow ,3 Port x 28mm Diverter High Flow ,2 Port x 22mm ,2 Port x 28mm ,3 Port x 22mm ,3 Port x 28mm |
|---|
