Drayton Motorised Valve 2 Port and 3 Port 22mm to 28mm
Price range: £55.00 through £249.96 inc VAT ( Price range: £45.83 through £208.30 ex VAT)
✓ In Stock
Free Click and Collect from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Drayton motorised valves in 2 port, 3 port mid position and 3 port diverter, for 22mm and 28mm pipe, plus the MA1 replacement head. Collect from 555 South Street, Glasgow G14 0QX.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|

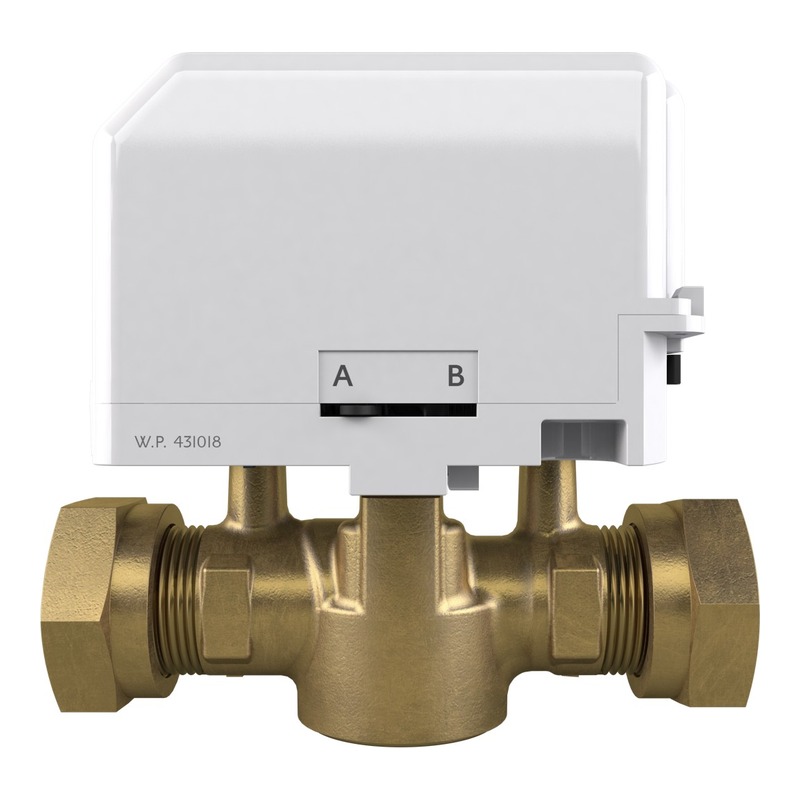

| ZA5/679-2 |
|
2 Port x 22mm | £68.18 inc VAT (£56.82 ex VAT) |
-
+
|
£68.18 inc VAT ({price_excluding_tax} ex VAT) | ||
| ZA6/779-2 |
|
2 Port x 28mm | £129.96 inc VAT (£108.30 ex VAT) |
-
+
|
£129.96 inc VAT ({price_excluding_tax} ex VAT) | ||
| MA1/679-3 |
|
3 Port x 22mm Mid Position | £78.08 inc VAT (£65.07 ex VAT) |
-
+
|
£78.08 inc VAT ({price_excluding_tax} ex VAT) | ||
| ZA5/679-3 |
|
3 Port x 22mm Diverter | £55.00 inc VAT (£45.83 ex VAT) |
-
+
|
£55.00 inc VAT ({price_excluding_tax} ex VAT) | ||
| ZA3/679-3 |
|
3 Port x 22mm Diverter No Switch | £249.96 inc VAT (£208.30 ex VAT) |
-
+
|
£249.96 inc VAT ({price_excluding_tax} ex VAT) | ||
| MA1/779-3 |
|
3 Port x 28mm Mid Position | £163.67 inc VAT (£136.39 ex VAT) |
-
+
|
£163.67 inc VAT ({price_excluding_tax} ex VAT) | ||
| ZA5 |
|
2 Port Replacement Head 5 Wire | £108.23 inc VAT (£90.19 ex VAT) |
-
+
|
£108.23 inc VAT ({price_excluding_tax} ex VAT) | ||
| ZA6 |
|
2 Port Replacement Head 6 Wire | £140.27 inc VAT (£116.89 ex VAT) |
-
+
|
£140.27 inc VAT ({price_excluding_tax} ex VAT) | ||
| MA1 |
|
3 Port Mid Position Replacement Head | £73.91 inc VAT (£61.59 ex VAT) |
-
+
|
£73.91 inc VAT ({price_excluding_tax} ex VAT) |
The Drayton Motorised Valve switches heating and hot water when the programmer or thermostat asks for it. We sell the ZA5 and ZA6 2 port zone valves, the MA1 3 port mid position valves, the ZA5 and ZA3 3 port diverter valves, and the ZA5, ZA6 and MA1 replacement heads.
A 2 port valve is a plain on or off zone valve for an S plan system. The MA1 mid position valve is the Y plan valve that sends water to heating, hot water or both. A diverter only sends water one way or the other, so it suits a system that gives hot water priority. The ZA3 diverter has no auxiliary switch, the ZA5 has a 5 wire switch and the ZA6 a 6 wire changeover switch.
The valve runs on mains voltage. Isolate the supply and wire it to the system diagram, or have a competent heating engineer do it.
Specification
- Brand: Drayton (Schneider Electric)
- Maker code: ZA5/679-2 27100 (2 Port x 22mm), ZA6/779-2 27205 (2 Port x 28mm), MA1/679-3 27101 (3 Port x 22mm Mid Position), ZA5/679-3 27111 (3 Port x 22mm Diverter), ZA3/679-3 27102 (3 Port x 22mm Diverter No Switch), MA1/779-3 27206 (3 Port x 28mm Mid Position), ZA5 27650 (2 port head, 5 wire), ZA6 27653 (2 port head, 6 wire), MA1 27651 (3 port head)
- Type: 2 port zone valve, 3 port mid position, 3 port diverter
- Connection: Compression
- Body: Brass forging
- Power supply: 230V AC 50Hz
- Switch rating: 3(1)A
- Maximum static pressure: 8.6 bar
- Maximum differential pressure: 0.7 bar
- Water temperature: 2 to 93°C
- Lead: 1m
- Sizes: 2 Port x 22mm, 2 Port x 28mm, 3 Port x 22mm Mid Position, 3 Port x 22mm Diverter, 3 Port x 22mm Diverter No Switch, 3 Port x 28mm Mid Position, 2 Port Replacement Head 5 Wire, 2 Port Replacement Head 6 Wire, 3 Port Mid Position Replacement Head
Common Questions
Do I need a 2 port or a 3 port valve?
Go by the system you have. Separate valves on the heating and hot water legs is an S plan, so 2 port. One valve where the flow splits is a Y plan, so 3 port mid position.
What is the difference between mid position and diverter?
A mid position valve can feed heating, hot water or both at once. A diverter feeds one or the other, never both, so check what the old valve was before swapping.
Can I collect a Drayton motorised valve today in Glasgow?
Yes. Order online and use free Click and Collect at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm.
Order online and collect free from Plumb Parts, 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. Free delivery on orders over £250. Unused items in their packaging can be returned within 14 days. Heating engineers and plumbers can ask at the counter about a trade account.
| Size |
2 Port Replacement Head 5 Wire ,2 Port Replacement Head 6 Wire ,3 Port Mid Position Replacement Head ,3 Port x 22mm Diverter ,3 Port x 22mm Diverter No Switch ,3 Port x 22mm Mid Position ,3 Port x 28mm Mid Position ,2 Port x 22mm ,2 Port x 28mm |
|---|
