Brass Munsen Ring 15mm to 108mm

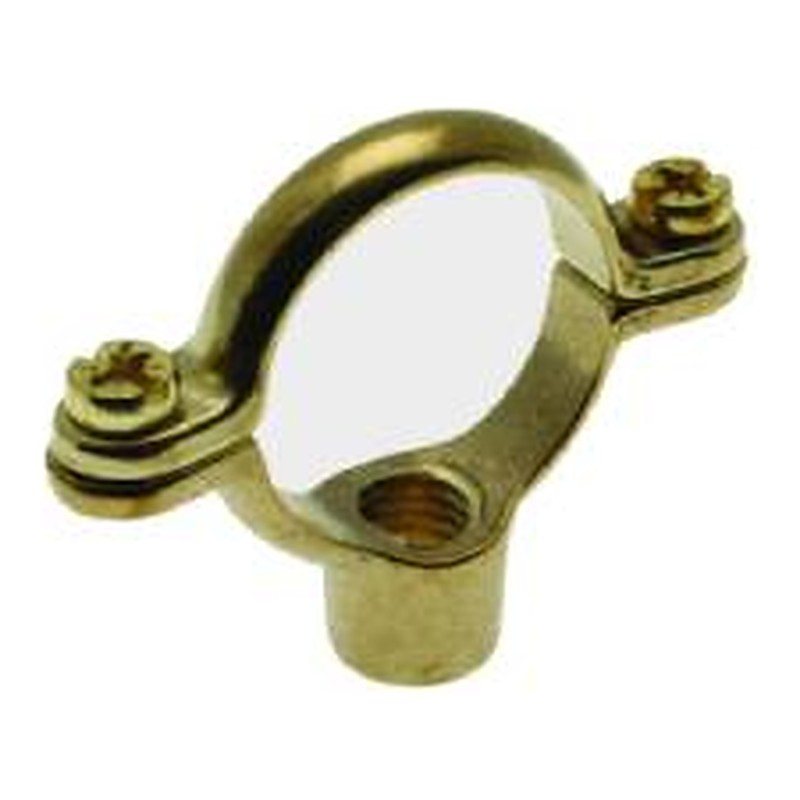

For copper pipe that needs a proper hanger, a brass munsen ring is the neat option. It is a hinged brass ring that closes round the pipe and fixes to a rod or back plate through its threaded boss.

Where a brass munsen ring is used

Brass sits well against copper, so you avoid putting steel straight onto the pipe. That makes these rings a common choice on hot and cold services, heating pipework and exposed runs in commercial buildings. They also look smarter than galvanised rings where pipe is on show. The range runs from small domestic sizes up to large copper mains.

• 15mm, 22mm, 28mm and 35mm
• 42mm, 54mm and 67mm
• 76mm and 108mm
• Brass ring with screw closure and threaded boss

The sizes match copper tube outside diameters, so a 22mm ring fits 22mm copper. To hang pipe close to a wall, screw the ring straight onto a back plate. To drop it lower, run a length of threaded rod between the plate and the ring. Space the rings to suit the pipe size, closer on 15mm and further apart on the larger tube. Leave them snug, but not so tight that the pipe cannot move with heat. Back plates in brass are listed in our munsen rings category.

Brass rings over the counter in Glasgow

Munsen rings are sold at Plumb Parts, 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm, with Sat-Sun 8am-1pm hours too. Online orders are welcome.

Specification

• Material: Brass
• Connection: Hinged ring with screw closure and threaded boss
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 67mm, 76mm and 108mm
• Suitable for: Copper tube of matching outside diameter

Common Questions

What is a Munsen ring? It’s a pipe ring that closes round a pipe so the pipe can be hung from threaded rod or fixed to a back plate. You’ll also hear it called a pipe ring.

What are Munsen rings used for? They support pipework, usually hanging runs from a ceiling on rod or fixing them off a wall plate. They keep the pipe held at the right height and spacing.

How do you fit Munsen rings? Fix your rod or back plate first, then screw the ring onto the M10 thread. Open the ring, close it round the pipe and tighten the screws so it’s held firm.

What thread does the brass Munsen ring take? It has one M10 tapping, which suits M10 threaded rod and our M10 back plates.

Do brass Munsen rings come with screws? Yes, brass screws are supplied with them.

What size Munsen ring do I need? Go by the outside diameter of the pipe, so a 15mm pipe takes a 15mm ring and a 22mm pipe a 22mm ring.
