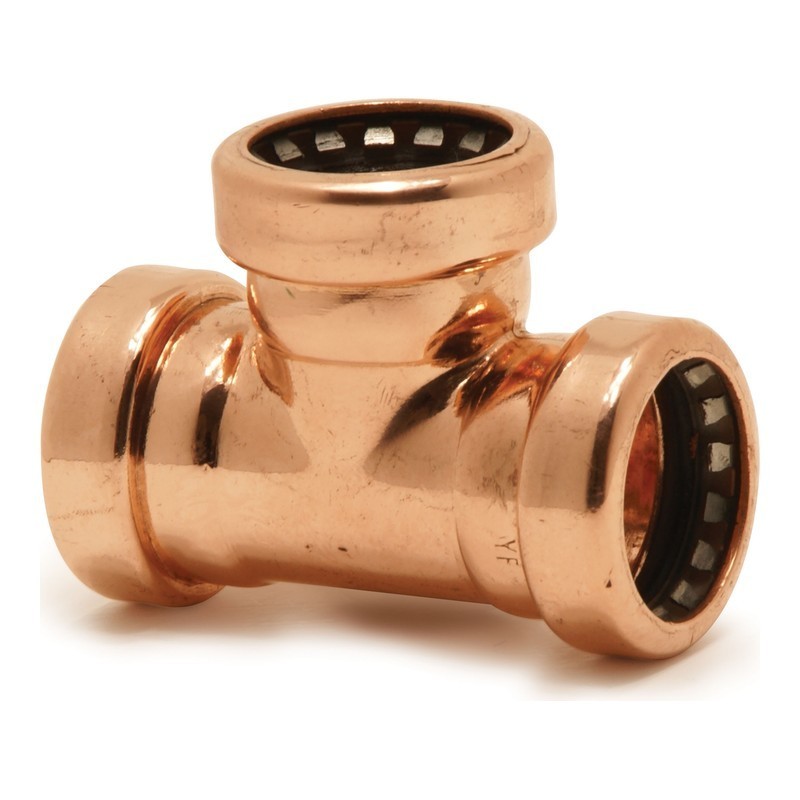

Tectite Sprint Equal Tee 10mm to 54mm

The Tectite Sprint Equal Tee has three Push-Fit ends of the same size, for splitting one run into two on water or heating pipework.

Sizes: 10mm, 15mm, 22mm, 28mm, 35mm, 42mm and 54mm.

Cut the pipe square, take off the burr, mark the insert depth and push it home until it stops. No heat, no flux and no spanners on the Push-Fit end. Use a pipe insert with plastic pipe.

Specification

• Brand: Pegler Yorkshire (VSH Tectite)
• Range: Tectite Sprint
• Maker code: TT24
• Material: copper
• Connection: Push-Fit, three ends
• Sizes: 10mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
• O-rings: EPDM
• Approvals: Kiwa, WRAS and Kitemark (Tectite range)
• Temperature: -24°C to +114°C (Tectite range rating)
• Max pressure: 20 bar (Tectite range rating, check the fitting’s data sheet)
• Suitable for: Drinking water, heating and cooling

Common Questions

How do you fit a Tectite Sprint fitting?
Cut the pipe square with a pipe slice, deburr it, mark the insert depth and push the pipe in until it bottoms out. Check the mark sits at the mouth of the fitting.

How do you remove a Tectite Sprint fitting?
Drain the pipe first, then use the Tectite demounting tool to release the grip ring and pull the pipe out. Check the O-ring and pipe end before you push it back in.

Do Tectite Sprint fittings need pipe inserts?
Not on copper. On PEX or polybutylene pipe, fit a pipe insert first so the pipe keeps its shape and seals properly.

Can Tectite Sprint go on central heating?
Yes. Pegler list it for drinking water, heating and cooling pipework.

Genuine Pegler Yorkshire stock. Collect from Plumb Parts, 555 South Street, Glasgow G14 0QX, open Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm, or phone 0141 404 5128 to check stock.
