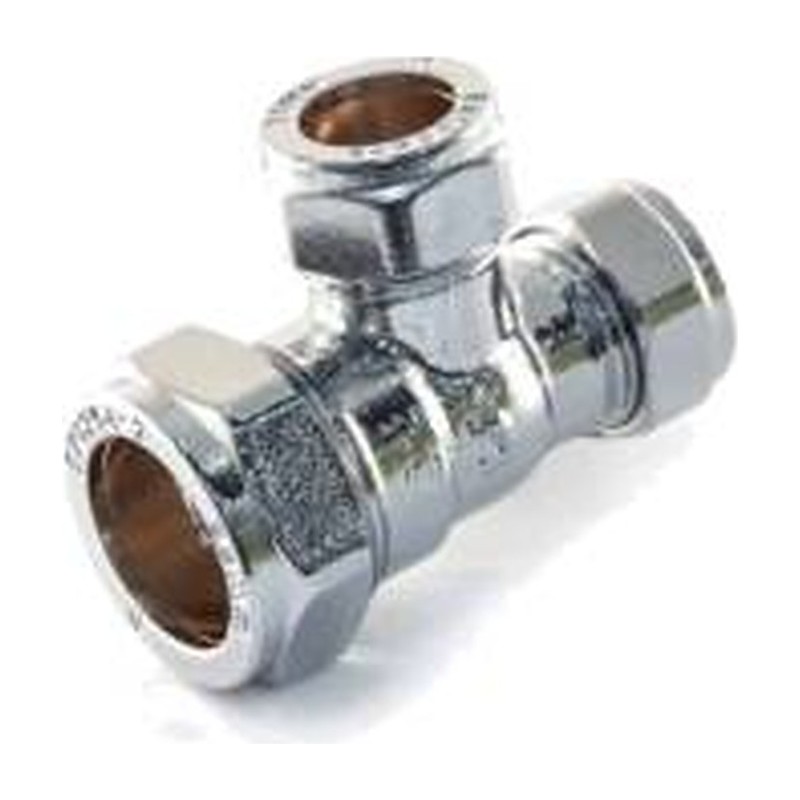

Compression Chrome Plated Reducing Tee 22mm to 28mm

Compression Chrome Plated Reducing Tee

Compression Chrome Plated Reducing Tee used to connect three pipes or tubes of different diameters.

Chrome Compression Fittings

Chrome Compression fittings are especially advantageous in retrofit plumbing schemes, where space is confined and/or the use of heat must be avoided.

They are available in 6-108mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards including ISO 274.

At Plumb Parts our range of Chrome Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These types of Compression fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal.

Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Chrome Plated Compression fittings are suitable for connecting a wide range of tubes including copper tubes in accordance with EN 1057 and many other standards including ISO 274.

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

At Plumb Parts in Glasgow, our range of Chrome Plated Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

Specification

• Material: chrome plated
• Connection: unequal tee, Compression on all three ends
• Sizes: 15mm x 15mm x 22mm, 22mm x 15mm x 15mm, 22mm x 15mm x 22mm, 22mm x 22mm x 15mm, 22mm x 22mm x 28mm, 28mm x 15mm x 28mm, 28mm x 28mm x 15mm
• Suitable for: branching a different pipe size off a chrome run

Common Questions

How are reducing tee sizes read?

End, end, then branch. A 28mm x 28mm x 15mm keeps 28mm through the run and drops to 15mm on the branch, while 15mm x 15mm x 22mm works the other way round.

Why pick chrome over a brass tee?

For looks. On pipework that stays on view, a chrome tee matches chrome pipe and taps, while a brass one stands out.

Can I use a reducing set in an equal tee instead?

You can, but a proper reducing tee has fewer parts and looks tidier on show, which is the reason for buying chrome in the first place.
