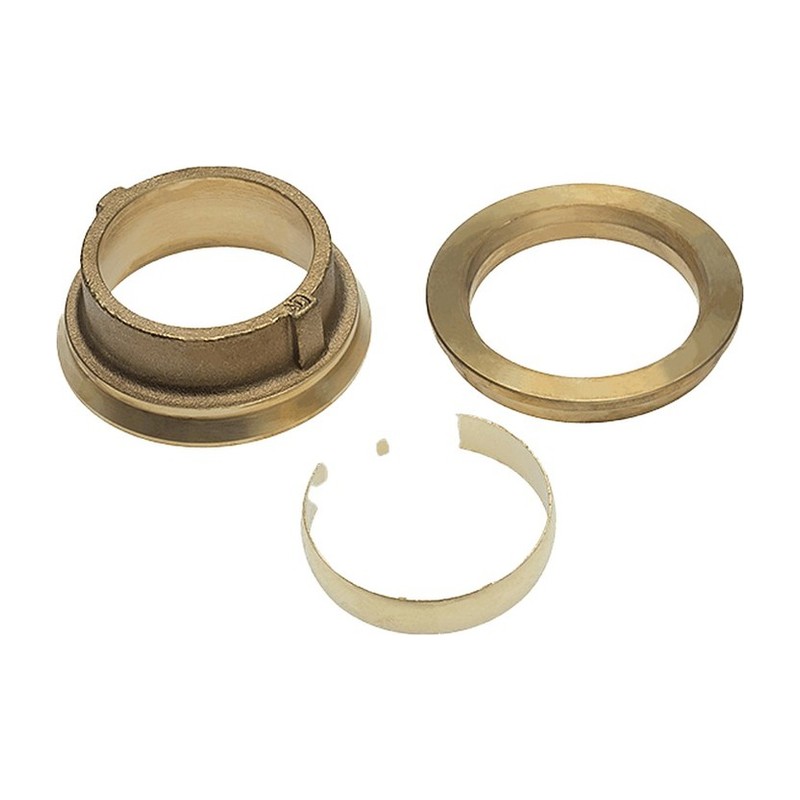

Compression Internal Reducer Set 1 Piece 8mm x 10mm to 28mm x 22mm

Compression Internal Reducer Set 1 Piece

A one piece Compression Internal Reducer (also called a reducer set or insert reducer) pushes into the end of a larger compression fitting so a smaller copper pipe can join into it. The most asked for size is the Compression Internal Reducer 15mm to 10mm (15mm x 10mm), which lets 10mm microbore pipe run into a standard 15mm compression fitting, isolating valve or radiator valve.

Call in to Plumb Parts at 555 South Street, Glasgow G14 0QX and pick one up off the shelf, open 7 days.

Compression Fittings

At Plumb Parts in Glasgow, our range of Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These tried and tested Compression fittings remain the preferred jointed technique for many domestic installers due to their exceptionally high quality.

Compression fittings are especially advantageous in retrofit plumbing schemes, where the use of heat must be avoided. They are available in 8mm – 54mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards.

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal. Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Compatibility

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

Fittings are manufactured from high-quality brass materials which ensure a permanently tight and secure connection, without the use of special tooling or additional sealant. These fittings are suitable for connecting a wide range of tubes, including copper tubes in accordance with EN 1057, carbon steel to EN 10305, stainless steel to EN 10312 and plastic pipes to BS 7291, EN 15875 and EN 15876.

Compression fittings are tested and approved for use with drinking water. Tested and certified by independent European certification bodies such as WRAS- Water Regulations Advisory Scheme confirming its suitability and reliability.

Compression Fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

The mechanical nature of Compression joints is well-proven technology that is extremely robust and resilient.

At Plumb Parts in Glasgow, our range of Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

All our Compression Fittings are WRAS approved.

Specification

• Type: Compression Internal Reducer, one piece insert
• Material: Brass
• Connection: Compression (nut and olive)
• Sizes: 8mm x 10mm, 15mm x 8mm, 15mm x 10mm (15mm to 10mm), 15mm x 12mm, 22mm x 15mm, 28mm x 15mm, 28mm x 22mm
• Suitable for: copper pipe, or plastic pipe with a pipe insert

Common Questions

Do you have a 15mm to 10mm compression internal reducer in Glasgow? Yes, the 15mm x 10mm Compression Internal Reducer is In Stock at Plumb Parts, 555 South Street, Glasgow G14 0QX. We are open 7 days, Mon to Fri 8am to 5pm and Sat and Sun 8am to 1pm.

How do I fit a 15mm to 10mm internal reducer? Take the 15mm nut and olive off the fitting, push the reducer into the 15mm port and tighten it, then fit the 10mm pipe into the reducer with its own 10mm nut and olive.

What is a compression reducer? It’s a one-piece insert that sits inside a compression fitting so a smaller pipe can join into a bigger fitting. For example, the 28mm x 15mm lets a 15mm pipe run into a 28mm fitting.

How does a compression reducer work? The reducer takes the place of the larger pipe end inside the fitting, and the smaller pipe then seals into the reducer with its own nut and olive. The result is a tight joint without any heat.

How do I fit a 28mm to 15mm compression reducer? Push the 28mm x 15mm reducer into the 28mm side of the fitting and tighten that nut, then fit the 15mm pipe into the reducer with its olive and nut. Cut the pipe square and clean off any burrs first so the olive seats properly.

Can I use it on plastic pipe? Yes, as long as you use a pipe insert in the plastic pipe so it doesn’t squash when the nut is tightened.

What is the reducer made from? It’s made of brass, to suit our brass compression fittings.

Do I need a blowtorch to fit it? No, compression joints are heat-free, which makes them handy for repairs or anywhere you’d rather not use a flame.
