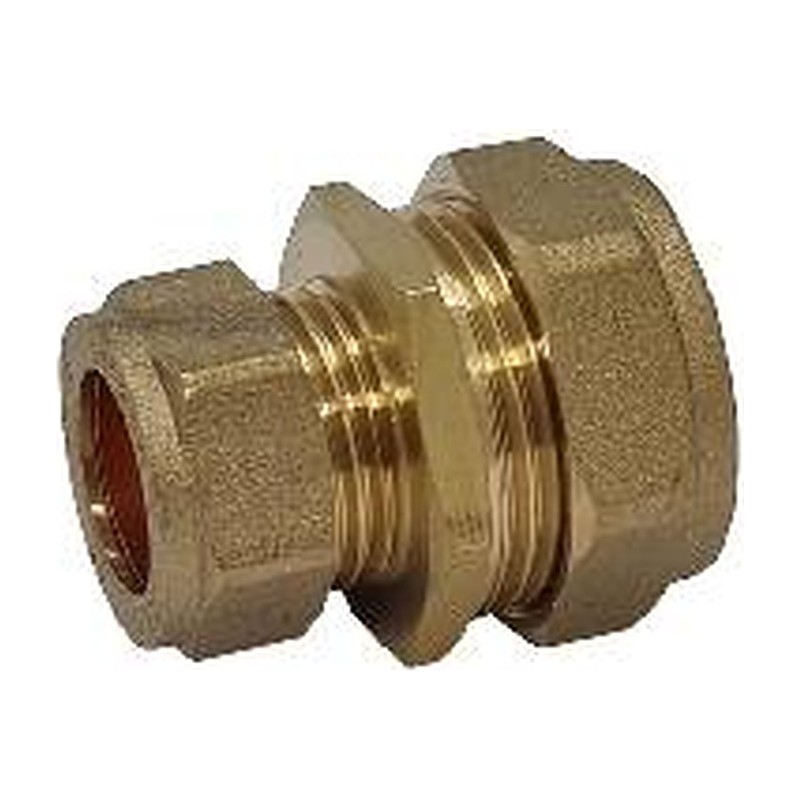

Compression Reducing Coupler 10mm to 28mm
Price range: £1.31 through £3.94 inc VAT ( Price range: £1.09 through £3.28 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
A Compression Reducing Coupler joins two copper or plastic pipes of different sizes in a straight line. Common sizes include 15mm x 10mm and 22mm x 15mm. Available from Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| CPRC108 |
|
10mm x 8mm | £1.32 inc VAT (£1.10 ex VAT) |
-
+
|
£1.32 inc VAT | ||
| CPRC1210 |
|
12mm x 10mm | £1.50 inc VAT (£1.25 ex VAT) |
-
+
|
£1.50 inc VAT | ||
| CPRC158 |
|
15mm x 8mm | £1.31 inc VAT (£1.09 ex VAT) |
-
+
|
£1.31 inc VAT | ||
| CPRC1510 |
|
15mm x 10mm | £2.09 inc VAT (£1.74 ex VAT) |
-
+
|
£2.09 inc VAT | ||
| CPRC1512 |
|
15mm x 12mm | £2.04 inc VAT (£1.70 ex VAT) |
-
+
|
£2.04 inc VAT | ||
| CPRC1615 |
|
16mm x 15mm | £3.36 inc VAT (£2.80 ex VAT) |
-
+
|
£3.36 inc VAT | ||
| CPRC2215 |
|
22mm x 15mm | £3.40 inc VAT (£2.83 ex VAT) |
-
+
|
£3.40 inc VAT | ||
| CPRC2815 |
|
28mm x 15mm | £3.89 inc VAT (£3.24 ex VAT) |
-
+
|
£3.89 inc VAT | ||
| CPRC2822 |
|
28mm x 22mm | £3.94 inc VAT (£3.28 ex VAT) |
-
+
|
£3.94 inc VAT |
Stepping a pipe run down from one size to another is the whole job of a Compression Reducing Coupler. Each end has its own nut and olive, sized to suit the bigger pipe on one side and the smaller pipe on the other.
Using a Compression Reducing Coupler
A typical use is dropping from a 22mm main run to a 15mm tail for a tap, or from 15mm down to 10mm microbore for a radiator. On bigger jobs, the same idea takes 54mm, 42mm or 35mm mains down to the branch size you need.
If you join plastic pipe, put a pipe insert in the plastic end so the olive has something firm to grip. Copper just needs a clean, square, deburred end. Tighten each nut while holding the body still, so the coupler does not twist the other joint.
- Small sizes: 10mm x 8mm, 12mm x 8mm, 12mm x 10mm, 15mm x 8mm, 15mm x 10mm, 15mm x 12mm
- House sizes: 22mm x 15mm, 28mm x 15mm, 28mm x 22mm
- Larger sizes from 35mm x 15mm up to 54mm x 42mm
- Straight Compression coupler, no heat needed
Pick the exact size from the options on this page, or see other reducers in Compression fittings.
Buying reducers in Glasgow
Plumb Parts is at 555 South Street, Glasgow G14 0QX. It opens Monday to Friday 8am to 5pm, and Saturday and Sunday 8am to 1pm, with online ordering as well.
Specification
- Connection: straight reducing, nut and olive each end
- Sizes: 10mm x 8mm, 12mm x 8mm, 12mm x 10mm, 15mm x 8mm, 15mm x 10mm, 15mm x 12mm, 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 15mm, 35mm x 22mm, 35mm x 28mm, 42mm x 15mm, 42mm x 22mm, 42mm x 28mm, 42mm x 35mm, 54mm x 15mm, 54mm x 22mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm
- Suitable for: stepping a pipe run down a size in a straight line
Common Questions
How do I fit a 22mm to 15mm Compression reducing coupler?
Cut both pipes square and deburr them. Put the 22mm nut and olive on the bigger pipe and the 15mm ones on the smaller, push both fully in and tighten each with the body held.
How does a 15mm to 10mm reducer work on microbore?
The 15mm end goes on the main or tee and the 10mm end takes the microbore pipe to the radiator. Microbore is soft, so go easy on that nut.
Can one end take plastic and the other copper?
Yes, as long as the plastic end has the insert its maker specifies. Copper only needs a clean, round, deburred end.
| Sizes |
10mm x 8mm ,10mmx10mmx22mm ,15 x 10mm ,15mm x 1/2 ,15mm x 1/4 ,15mm x 10mm ,15mm x 12mm ,15mm x 15mm x 10 ,15mm x 15mm x 10mm ,15mm x 15mm x 22mm ,15mm x 8mm ,16mm x 15mm ,22mm x 1" ,22mm x 1/2 ,22mm x 1/2" ,22mm x 15mm ,22mm x 15mm x 15mm ,22mm x 15mm x 22mm ,22mm x 22mm x 15 ,22mm x 22mm x 15mm ,22mm x 22mm x 28mm ,22mm x 3/4 ,22mm x 3/4" x 22mm ,22mmx15mmx15 ,22mmx22mmx28mm ,28mm x 15mm ,28mm x 15mm x 15mm ,28mm x 15mm x 22mm ,28mm x 22mm ,35mm x 15mm ,35mm x 22mm ,35mm x 28mm ,42mm x 15mm ,42mm x 22mm ,42mm x 28mm ,42mm x 35mm ,52mm x 15mm ,54mm x 15mm ,54mm x 2 " ,54mm x 22mm ,54mm x 28mm ,54mm x 35mm ,54mm x 42mm ,54mmx 35mm ,67mm x 28mm ,67mm x 35mm ,67mm x 42mm ,8 mm ,Solder Ring One Ebd Reduced Tee ,08mm ,108mm ,108mm x 4'' ,108mm x 42mm ,108mm x 54mm ,108mm x 67mm ,108mm x 76mm ,10mm ,10mm x 1/4" ,10mm x 3/8" ,10mmX1/2" ,10mmx1/4" ,10mmx10mmx15mm ,10mmx3/8" ,10X6MM ,10x8mm ,12mm ,12mm x 1/2'' ,12mm x 1/4'' ,12mm x 10mm ,12mm x 3/8'' ,12mm x 8mm ,12X10mm ,133mm ,133mm x 108mm ,133mm x 67mm ,133mm x 76mm ,159mm ,159mm x 108mm ,159mm x 133mm ,159mm x 54mm ,159mm x 67mm ,159mm x 76mm ,15mm ,15mm x 1/2" ,15mm x 1/2"x 15mm ,15mm x 1/4" ,15mm x 15mm x 1/2" ,15mm x 15mm x 1/4" ,15mm x 3/4'' ,15mm x 3/8'' ,15mmx1/2" ,15mmx1/4" ,15mmx15mmx10mm ,15mmx15mmx22mm ,15x10mm ,15X12mm ,15x8mm ,16X15mm ,22mm ,22mm x 1'' ,22mm x 1/2"x 22mm ,22mm x 22mm x 1/2" ,22mm x 22mm x 3/4" ,22mm x 3/4" ,22mmx1" ,22mmX1/2" ,22mmx10mm ,22mmx15mm ,22mmx15mmx15mm ,22mmx22mmx10mm ,22mmx22mmx15mm ,22mmx3/4" ,22mx15mmx22mm ,22mx22mmx28mm ,22x15mm ,28mm ,28mm x 1" ,28mm x 15mm x 28mm ,28mm x 22mm x 15mm ,28mm x 22mm x 22mm ,28mm x 22mm x 28mm ,28mm x 28mm x 1/2" ,28mm x 28mm x 15mm ,28mm x 28mm x 22mm ,28mm x 28mm x 3/4" ,28mmx1" ,28mmx15mmx15mm ,28mmx15mmx22mm ,28x15mm ,28x22mm ,32mm ,35mm ,35mm x 1.1/4" ,35mm x 22mm x 35mm ,35mm x 28mm x 15mm ,35mm x 28mm x 22mm ,35mm x 28mm x 28mm ,35mm x 28mm x 35mm ,35mm x 35mm x 15mm ,35mm x 35mm x 22mm ,35mm x 35mm x 28mm ,35mmx1.1/4" ,35x15mm ,35X22mm ,35x28mm ,40mm ,42mm ,42mm x 1.1/2" ,42mm x 35mm x 28mm ,42mm x 35mm x 35mm ,42mm x 35mm x 42mm ,42mm x 42mm x 15mm ,42mm x 42mm x 22mm ,42mm x 42mm x 28mm ,42mm x 42mm x 35mm ,42mmx1.1/2" ,42x15mm ,42x22mm ,42x28mm ,42X35mm ,54mm ,54mm x 2" ,54mm x 42mm x 42mm ,54mm x 42mm x 54mm ,54mm x 54mm x 15mm ,54mm x 54mm x 22mm ,54mm x 54mm x 28mm ,54mm x 54mm x 35mm ,54mm x 54mm x 42mm ,54mmx2" ,54x15mm ,54x22mm ,54x28mm ,54x35mm ,54X42mm ,67mm ,67mm x 2.1/2'' ,67mm x 3" ,67mm x 54mm ,6mm ,76mm ,76mm x 28mm ,76mm x 3'' ,76mm x 35mm ,76mm x 42mm ,76mm x 54mm ,76mm x 67mm ,8mm ,8mm x 1/4" ,8mmx1/4" ,8mmX3/8" ,Lug Style – 15mm ,Lug Style – 22mm ,Lug Style – 28mm ,Lug Style – 35mm ,Lug Style – 42mm ,Lug Style – 54mm |
|---|
Only logged in customers who have purchased this product may leave a review.
Related products
Compression Equal Tee 8mm to 54mm
Price range: £1.96 through £20.83 inc VAT ( Price range: £1.63 through £17.36 ex VAT)

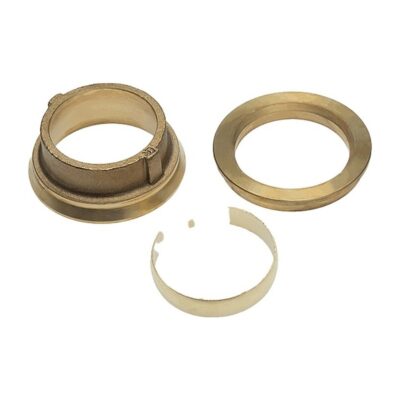

Compression Internal Reducer Set 1 Piece 8mm x 10mm to 28mm x 22mm
