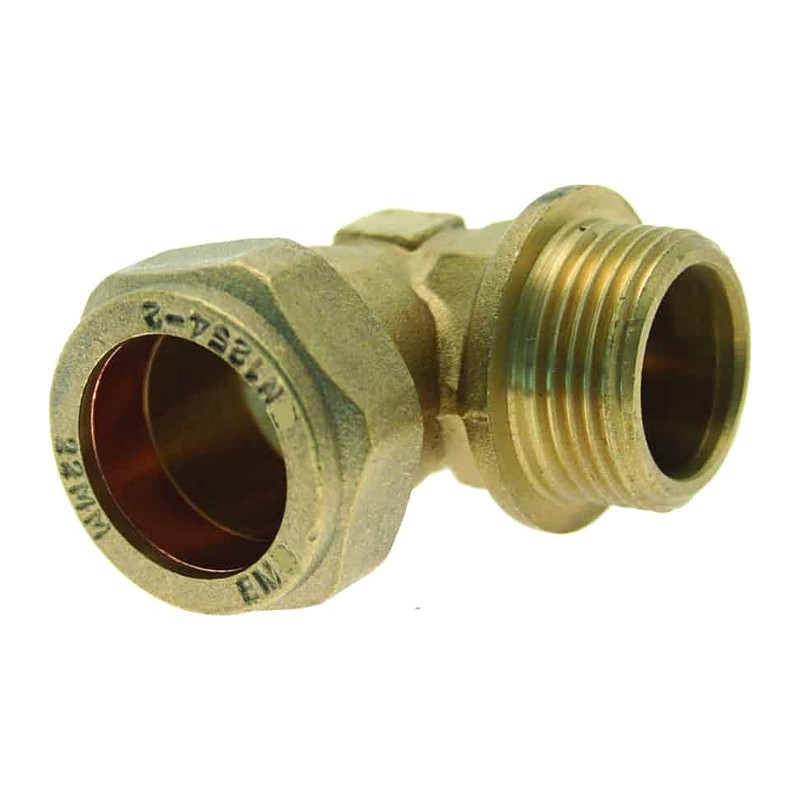

COMPRESSION MALE ELBOW
Compression Male Elbow used to connect to pipework or appliances which have a female socket.
Compression Male Elbow – Durable and Reliable Plumbing Solution
Product Overview
The Compression Male Elbow is a versatile plumbing fitting that enables a secure 90-degree connection between pipework and appliances with a female socket. Designed for both domestic and industrial use, this fitting is ideal for tight spaces and right-angle connections. Its WRAS approval ensures it meets UK standards for potable water systems, making it a reliable choice for professional and DIY plumbing projects.
Manufactured from high-quality brass, dezincification-resistant (DZR) brass, or gunmetal, the Compression Male Elbow offers excellent resistance to corrosion and wear. With sizes ranging from 8mm to 54mm, it is compatible with various water and gas plumbing systems.
Key Features
- 90-Degree Connection: Allows for efficient pipe alignment in confined or angled spaces.
- Durable Materials: Constructed from brass, DZR brass, or gunmetal to ensure longevity and corrosion resistance.
- Heat-Free Installation: Perfect for retrofits or environments where soldering isn’t practical.
- Wide Compatibility: Connects seamlessly with copper, stainless steel, low carbon steel, and plastic pipes like PE-X and PB.
- WRAS Approved: Certified for potable water applications, ensuring safety and compliance with regulations.
Applications
The Compression Male Elbow is versatile and can be used in:
- Domestic Plumbing Systems: Ensures reliable connections for hot and cold water supplies.
- Appliance Installations: Suitable for dishwashers, washing machines, boilers, and taps.
- Central Heating Systems: Functions efficiently in both small bore and mini bore systems.
- Gas Distribution Pipelines: Certified for gas applications up to 28mm, providing a secure and safe connection.
- Retrofit Projects: Ideal for installations where heat application is restricted or impractical.
Installation Instructions
Installing the Compression Male Elbow is straightforward:
- Prepare the Pipe and Fitting: Ensure both components are clean and free from debris.
- Fit the Compression Nut and Olive: Slide the nut and olive onto the pipe.
- Align the Elbow: Position the pipe and elbow fitting securely.
- Tighten the Joint: Use a wrench to secure the compression nut, forming a leak-proof seal.
- Test for Leaks: Check the system by running water or gas through it to confirm the connection is secure.
Advantages of Compression Fittings
- No Heat Required: Eliminates the need for soldering, making installation faster and safer.
- Proven Durability: Mechanical joints ensure reliable, leak-free performance over time.
- Versatile Compatibility: Works with a range of pipe materials that comply with EN and BS standards.
- Maintenance-Friendly: Easy to disassemble and reassemble, facilitating repairs or upgrades.
Popular Questions About Compression Male Elbows
1. What is the Compression Male Elbow used for?
It is designed to create a 90-degree connection between pipework or appliances with a female socket, ensuring a secure joint.
2. How do you install a Compression Male Elbow?
Clean the pipe, slide on the compression nut and olive, align the elbow, tighten the nut, and test the system for leaks.
3. Are these fittings WRAS approved?
Yes, all Compression Fittings, including Male Elbows from Plumb Parts, are WRAS-approved, ensuring suitability for potable water systems.
4. What materials are used in Compression Male Elbows?
These fittings are made from brass, DZR brass, or gunmetal, offering excellent durability and resistance to corrosion.
5. Can these fittings be used for gas systems?
Yes, they are certified for gas applications up to 28mm, ensuring safety and versatility.
6. What sizes are available for Compression Male Elbows?
They are available in a range of sizes from 8mm to 54mm, accommodating various plumbing requirements.
7. Are Compression Male Elbows compatible with plastic pipes?
Yes, they work seamlessly with PE-X and PB pipes, as well as with copper and metal options.
8. What are the advantages of heat-free fittings?
Heat-free fittings are quick and easy to install, reducing risks and saving time, especially in retrofit projects.
9. Where can I buy Compression Male Elbows?
They are available at Plumb Parts Plumbers Merchants in Glasgow, open seven days a week.
10. What are the common applications for this fitting?
It is widely used in domestic plumbing, appliance installations, central heating systems, gas pipelines, and retrofit projects.
Technical Specifications
- Material Options: Brass, dezincification-resistant brass (DZR), or gunmetal
- Size Range: 8mm to 54mm
- Certification: WRAS-approved for potable water systems and certified for gas systems (up to 28mm)
- Compatibility: Works with copper pipes (EN 1057), carbon steel (EN 10305), stainless steel (EN 10312), and plastic pipes (BS 7291, EN 15875, EN 15876)
- Finish Options: Available in nickel-plated or chrome-plated finishes
Why Choose Plumb Parts for Compression Fittings?
At Plumb Parts, we offer an extensive range of Compression Fittings, ensuring quality and reliability for all plumbing needs:
- Elbows: Male, Female Wallplate, 90°, and Long Radius
- Couplers: Straight, Reducing, and Slip
- Tees: Equal, Reduced Branch, and Specialty Variants
Our fittings are WRAS-approved, competitively priced, and come with expert customer support. Enjoy free delivery on orders over £100, and let our team help you find the perfect fittings for your project.
Visit or Contact Us Today
Visit Plumb Parts at 555 South Street, Glasgow, G14 0QX, open 8 am–5 pm Monday to Friday and 8 am–1 pm on weekends. Call us at 0141 404 5128 or email info@plumbparts.co.uk to explore our full range of Compression Fittings.
Upgrade your plumbing system with the durable and reliable Compression Male Elbow from Plumb Parts. Shop today for premium fittings at competitive prices!
