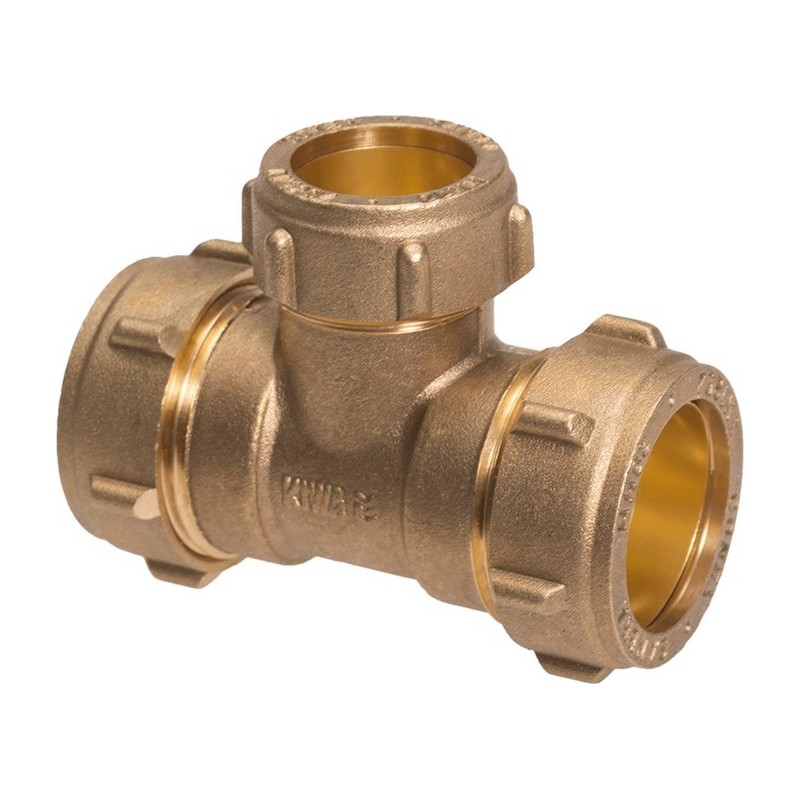

Compression Unequal Tee 22mm to 54mm

Compression Unequal Tee

Compression Unequal Tee used to connect pipe or tube of varying diameters.

Compression Fittings

At Plumb Parts in Glasgow, our range of Compression fittings are suitable for a broad spectrum of applications across the domestic, industrial and commercial sectors.

These tried and tested Compression fittings remain the preferred jointed technique for many domestic installers due to their exceptionally high quality.

Compression fittings are especially advantageous in retrofit plumbing schemes, where the use of heat must be avoided. They are available in 8mm – 54mm and are suitable for connecting tubes in accordance with EN 1057 and many other standards.

Compression fittings are available in duplex brass and/or dezincification resistant (DZR) brass or as dezincification immune gunmetal. Fittings are also available nickel-plated or chrome-plated in accordance with EN 248.

Compatibility

Fittings are also compatible with connecting low carbon steel, stainless steel and many types of plastic pipe including crossed linked polyethylene (PE-X) and polybutylene (PB) with size compatible outside diameters.

Fittings are manufactured from high-quality brass materials which ensure a permanently tight and secure connection, without the use of special tooling or additional sealant. These fittings are suitable for connecting a wide range of tubes, including copper tubes in accordance with EN 1057, carbon steel to EN 10305, stainless steel to EN 10312 and plastic pipes to BS 7291, EN 15875 and EN 15876.

Compression fittings are tested and approved, for use with drinking water, and for gas applications up to 28mm. Tested and certified by independent European certification bodies such as WRAS- Water Regulations Advisory Scheme confirming its suitability and reliability.

Compression Fittings are an easy to use the heat-free system, and excellent for repairs, and in applications where ongoing maintenance is envisaged

The mechanical nature of Compression joints is well-proven technology that is extremely robust and resilient.

At Plumb Parts in Glasgow, our range of Compression Fittings includes:

Straight Couplers , Reducing Couplers , Male Couplers , Female Couplers , Elbows 90 deg ,  Wallplate Elbows , Long Radius Elbows , Angled Wallplate Adaptors ,Stop Ends, Straight Tap Connectors , Bent Tap Connectors , Tees , Reduced Branch Tee , Both Ends Reduced Tee , Reduced End Tee , Reduced End and Branch Tee ,  Straight Cylinder Union , Bent Cylinder Union

Available as single units or individually bagged.

All our Compression Fittings are WRAS approved

Specification

• Connection: unequal tee, Compression on all three ends
• Sizes: 22mm x 15mm x 22mm, 22mm x 22mm x 15mm, 22mm x 22mm x 28mm, 28mm x 15mm x 15mm, 28mm x 15mm x 22mm, 28mm x 15mm x 28mm, 28mm x 22mm x 15mm, 28mm x 22mm x 22mm, 28mm x 22mm x 28mm, 28mm x 28mm x 15mm, 28mm x 28mm x 22mm, 35mm x 35mm x 15mm, 35mm x 35mm x 22mm, 35mm x 35mm x 28mm, 42mm x 42mm x 35mm, 54mm x 54mm x 42mm
• Suitable for: branching off runs where the pipe sizes do not all match

Common Questions

What is a compression tee fitting? It’s a three-way brass fitting that joins pipes with a nut and olive on each end. Tightening the nut squeezes the olive onto the pipe to make the seal, with no heat needed.

What size compression tee should I get? Measure the outside of each pipe you’re joining and pick the tee that matches all three. On an unequal tee at least one of the ends is a different size from the others.

Will this tee work on plastic pipe? Yes, it suits copper and plastic pipe of a matching outside diameter. Fit a pipe insert in the plastic pipe first.

Do I need sealant on the olives? No, a compression joint seals on the olive itself, so no sealant or special tools are needed. Just tighten it firmly without overdoing it.

Is it okay for drinking water? Yes, our compression fittings are WRAS approved.

Why choose compression over soldered fittings? No flame is needed, which makes them good for repairs and awkward spots, and they can be undone later if you need access.
