End Feed 45 Degree Obtuse Elbow 10mm to 108mm
Price range: £0.48 through £49.09 inc VAT ( Price range: £0.40 through £40.91 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.

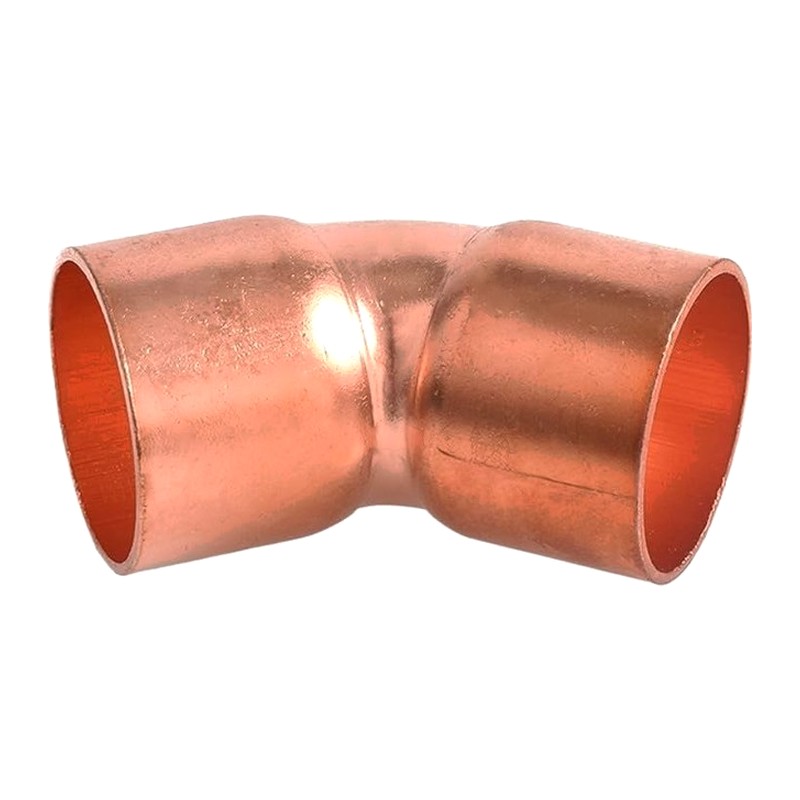

The End Feed 45 Degree Obtuse Elbow sets a copper run off at 45 degrees, in sizes from 10mm to 108mm. Flux and solder are added on site. Sold at Plumb Parts in Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| EFFOE10 |
|
10mm | £0.48 inc VAT (£0.40 ex VAT) |
-
+
|
£0.48 inc VAT | ||
| EFFOE15 |
|
15mm | £0.53 inc VAT (£0.44 ex VAT) |
-
+
|
£0.53 inc VAT | ||
| EFFOE22 |
|
22mm | £0.97 inc VAT (£0.81 ex VAT) |
-
+
|
£0.97 inc VAT | ||
| EFFOE28 |
|
28mm | £4.07 inc VAT (£3.39 ex VAT) |
-
+
|
£4.07 inc VAT | ||
| EFFOE35 |
|
35mm | £2.15 inc VAT (£1.79 ex VAT) |
-
+
|
£2.15 inc VAT | ||
| EFFOE42 |
|
42mm | £3.96 inc VAT (£3.30 ex VAT) |
-
+
|
£3.96 inc VAT | ||
| EFFOE54 |
|
54mm | £6.79 inc VAT (£5.66 ex VAT) |
-
+
|
£6.79 inc VAT | ||
| EFFOE67 |
|
67mm | £12.47 inc VAT (£10.39 ex VAT) |
-
+
|
£12.47 inc VAT | ||
| EFFOE76 |
|
76mm | £18.65 inc VAT (£15.54 ex VAT) |
-
+
|
£18.65 inc VAT | ||
| EFFOE108 |
|
108mm | £49.09 inc VAT (£40.91 ex VAT) |
-
+
|
£49.09 inc VAT |
The End Feed 45 Degree Obtuse Elbow is a copper solder bend that turns a pipe through 45 degrees, and we have it from 10mm to 108mm. Plumbers use it for offsets, gentle turns and getting round obstacles without a sharp right angle.
Where it goes
Two of these make a neat offset to step a pipe round a joist, beam or another pipe. A 45 degree turn also eases flow compared with a square bend, which helps on long heating runs and larger pipework.
Sizes available
- 10mm 45 degree bend
- 15mm 45 degree bend
- 22mm 45 degree bend
- 28mm 45 degree bend
- 35mm 45 degree bend
- 42mm 45 degree bend
- 54mm 45 degree bend
- 67mm 45 degree bend
- 76mm 45 degree bend
- 108mm 45 degree bend
Fitting tips
For an offset, cut the middle piece and dry fit both bends first so the pipe lines up before any heat goes on. Clean and flux both joints, then heat the fitting and feed solder until a full ring shows. Let it cool before you move it. Use lead free solder on drinking water.
End feed fittings from our Glasgow counter
For 90 degree elbows and other bends, see our end feed fittings. Collect from Plumb Parts, 555 South Street, Glasgow G14 0QX, or order online. Open Mon to Fri 8am to 5pm, Sat and Sun 8am to 1pm.
Specification
- Material: Copper
- Connection: End feed (capillary) socket both ends
- Sizes: 10mm, 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 67mm, 76mm, 108mm
- Suitable for: Copper tube on heating and hot and cold water
Common Questions
What does obtuse elbow mean?
It is the trade name for a 45 degree bend. The usual elbow turns 90 degrees.
How do I make an offset with these elbows?
Use two of them with a short straight piece between. Measure the distance you need to step over and dry fit before soldering.
Is a 45 degree bend better for flow?
It turns the water more gently than a 90 degree elbow. That means less resistance in the run.
Plumb Parts Glasgow
555 South Street
Glasgow
G14 0QX
Tel: 0141 404 5128
Open 7 days
Mon to Fri 8am to 5pm
Sat and Sun 8am to 1pm
| Size |
10mm ,15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,67mm ,76mm ,108mm |
|---|
