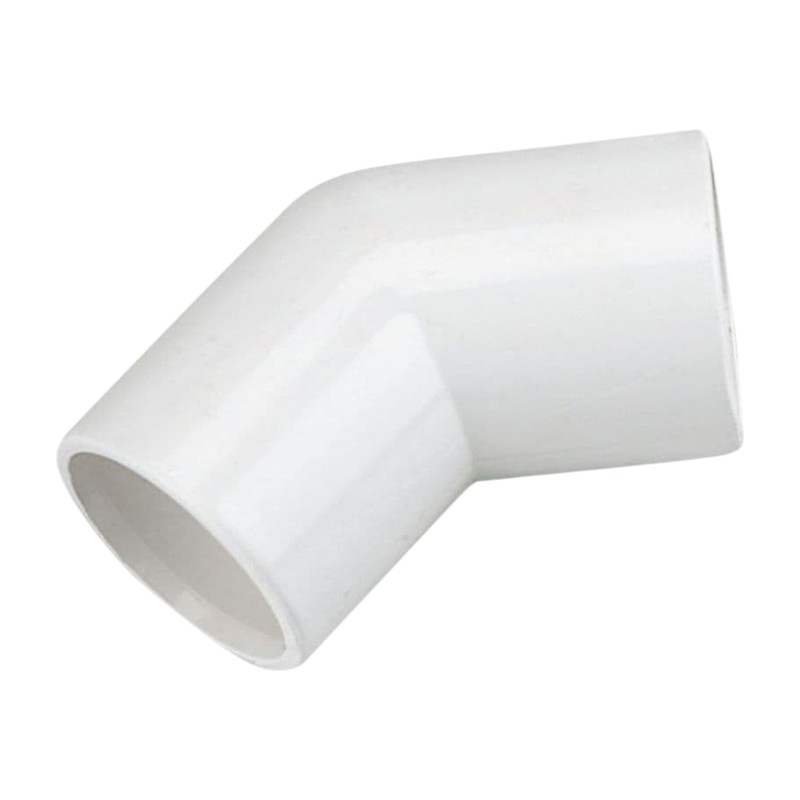

FloPlast Overflow 135 Deg Bend – OS12 21.5mm

The FloPlast Overflow 135 Deg Bend OS12 is a Solvent Weld bend for 21.5mm overflow pipe, the thin pipe that runs from a WC cistern or cold water tank out through the wall. FloPlast list OS12 as their 135 degree bend, which turns the pipe through 45 degrees.

Using the FloPlast Overflow 135 Deg Bend OS12

Overflow pipe needs to fall all the way outside and finish somewhere a drip will be noticed. A bend is handy for easing round joists, dropping through a ceiling void or kicking the pipe out through the wall.

Clean both faces, cement them, push fully home and give a slight twist. Keep a steady fall throughout, with no dips where water can lie.

Clip near the bend so the pipe does not pull on the joint. If you need a right angle turn, use the FloPlast 90 degree bend OS11 instead. Bring the job details to the counter if unsure.

Picking up overflow fittings in Glasgow

Overflow pipe and tank connectors are listed in the Flexible range. Ask for the OS12 at Plumb Parts, 555 South Street, Glasgow G14 0QX, Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or order online.

Specification

• Brand: FloPlast
• Range: 21.5mm Overflow Waste
• Maker code: OS12
• Angle: 135° (a 45° turn)
• Material: PVC-U
• Connection: Solvent Weld joints
• Sizes: 21.5mm
• Max temperature: 76°C continuous; up to 100°C for under 2 minutes
• Suitable for: Easing overflow pipe round joists and through walls

Common Questions

Is the OS12 a 90 degree or a 45 degree bend?

It is the 135 degree bend, which is a 45 degree turn. FloPlast’s 90 degree overflow bend is OS11.

Does overflow pipe need an expansion gap?

No. FloPlast’s tech sheet says no expansion gap is needed on their overflow system.

What should overflow fittings be glued with?

FloPlast specify their own solvent cement for the overflow joints. Clean both faces, cement them and push fully home.
