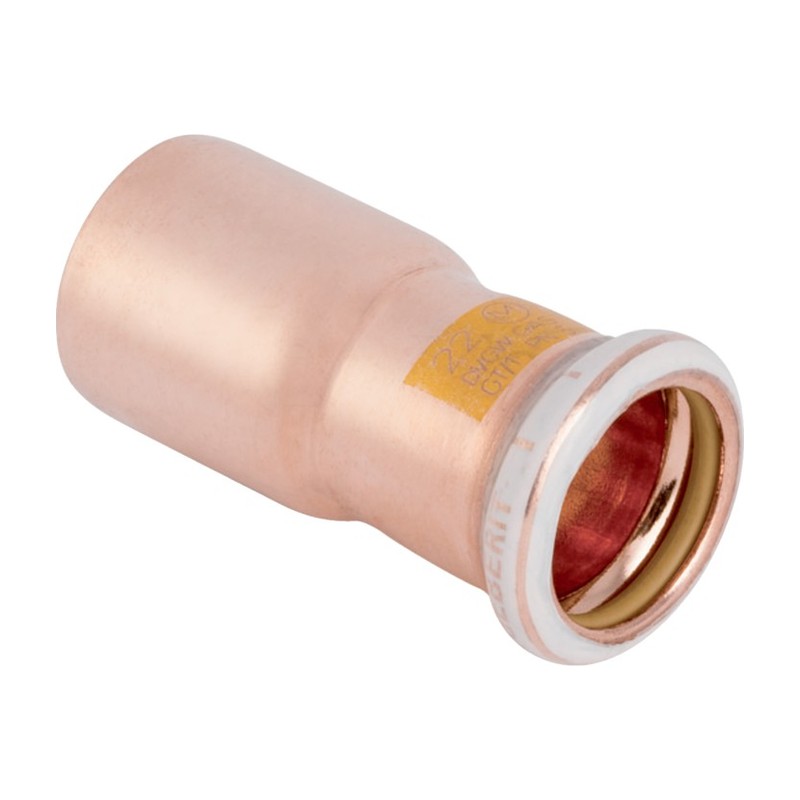

Geberit Mapress Copper Reducer (Gas) 22mm to 54mm

The Geberit Mapress Copper Reducer (Gas) steps a copper run down a size, with a plain spigot on the large end that goes into a fitting and a press socket on the small end for the tube. Push the plain end into a tee, elbow or coupling of the larger size and press it there. We sell it in 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 28mm, 42mm x 35mm, 54mm x 28mm, 54mm x 35mm and 54mm x 42mm, all genuine Geberit stock.

Mapress Copper gas fittings have a yellow HNBR seal ring and yellow marking, so they are easy to tell from the water range on site. They are made for natural gas and LPG on copper tube to EN 1057. Like the water range, a joint that has not been pressed leaks under test, so a missed one shows up before the supply is turned on. Gas work must be done by a Gas Safe registered engineer.

Specification

• Brand: Geberit
• Range: Geberit Mapress Copper (gas)
• Maker code: 34616 (22mm x 15mm), 34618 (28mm x 15mm), 34620 (28mm x 22mm), 34623 (35mm x 22mm), 34624 (35mm x 28mm), 34625 (42mm x 28mm), 34626 (42mm x 35mm), 34627 (54mm x 28mm), 34628 (54mm x 35mm), 34629 (54mm x 42mm)
• Sizes: 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 28mm, 42mm x 35mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm
• Material: Cu-DHP copper (CW024A)
• Seal ring: Yellow HNBR
• Connection: Press fit, M contour, with pressing indicator
• Max pressure: MOP 5 bar
• Temperature: -20°C to +70°C
• Suitable for: Natural gas and LPG on copper tube to EN 1057

Common Questions

What is the Copper Reducer (Gas) used for? It steps a copper run down a size, with a plain spigot on the large end that goes into a fitting and a press socket on the small end for the tube. Push the plain end into a tee, elbow or coupling of the larger size and press it there.

How are the sizes written? The bigger size comes first, so 28mm x 22mm goes from 28mm to 22mm.

Can I use Mapress water fittings on gas? No. Only the gas range with the yellow seal and marking is made for gas. Water fittings have a black seal and are not approved for gas.

Who can fit it? A Gas Safe registered engineer, who must carry out a tightness test before the supply goes back into use.

Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.
