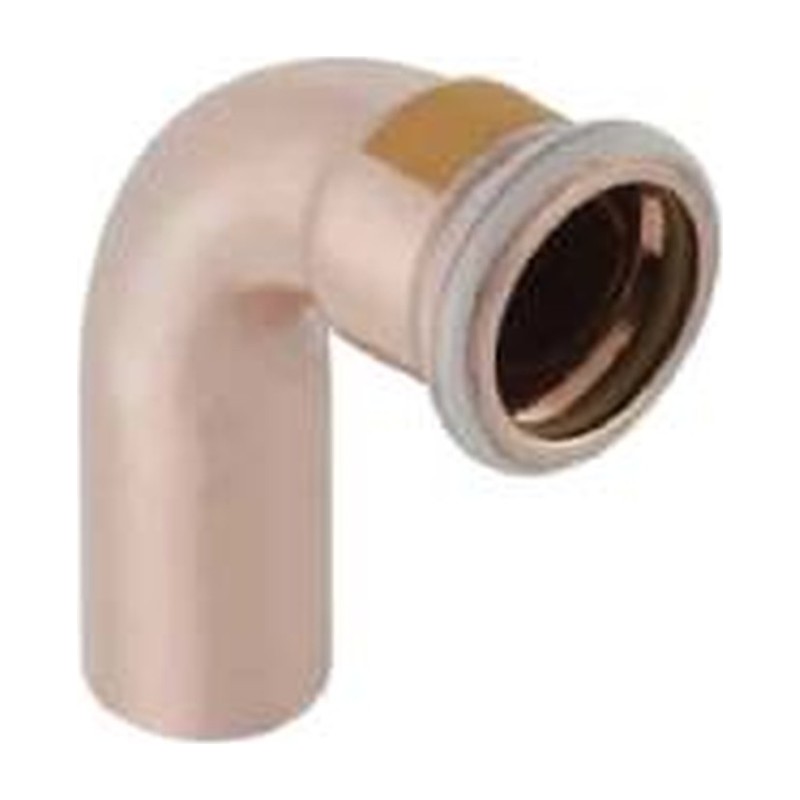

Geberit Mapress Gas Copper Bend with Plain End 15mm to 54mm

The Geberit Mapress Gas Copper Bend with Plain End is a street elbow: a press socket at one end and a plain spigot at the other that pushes into another fitting. It lets you make a tight turn straight out of a tee or coupling without a short length of tube. We sell it in 15mm, 22mm, 28mm, 35mm, 42mm and 54mm, all genuine Geberit stock. It is also known as a 90 or 45 Degree Street Elbow.

Mapress Copper gas fittings have a yellow HNBR seal ring and yellow marking, so they are easy to tell from the water range on site. They are made for natural gas and LPG on copper tube to EN 1057. Like the water range, a joint that has not been pressed leaks under test, so a missed one shows up before the supply is turned on. Gas work must be done by a Gas Safe registered engineer.

Specification

• Brand: Geberit
• Range: Geberit Mapress Copper (gas)
• Also known as: 90 or 45 Degree Street Elbow
• Maker code: 34521 (15mm), 34507 (15mm), 34523 (22mm), 34509 (22mm), 34524 (28mm), 34510 (28mm), 34525 (35mm), 34511 (35mm), 34526 (42mm), 34512 (42mm), 34527 (54mm), 34513 (54mm)
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm
• Material: Cu-DHP copper (CW024A)
• Seal ring: Yellow HNBR
• Connection: Press fit, M contour, with pressing indicator
• Max pressure: MOP 5 bar
• Temperature: -20°C to +70°C
• Suitable for: Natural gas and LPG on copper tube to EN 1057

Common Questions

What is the Gas Copper Bend with Plain End used for? It is a 90 or 45 Degree Street Elbow: a press socket at one end and a plain spigot at the other that pushes into another fitting. It lets you make a tight turn straight out of a tee or coupling without a short length of tube.

Can I use Mapress water fittings on gas? No. Only the gas range with the yellow seal and marking is made for gas. Water fittings have a black seal and are not approved for gas.

Who can fit it? A Gas Safe registered engineer, who must carry out a tightness test before the supply goes back into use.

Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.
