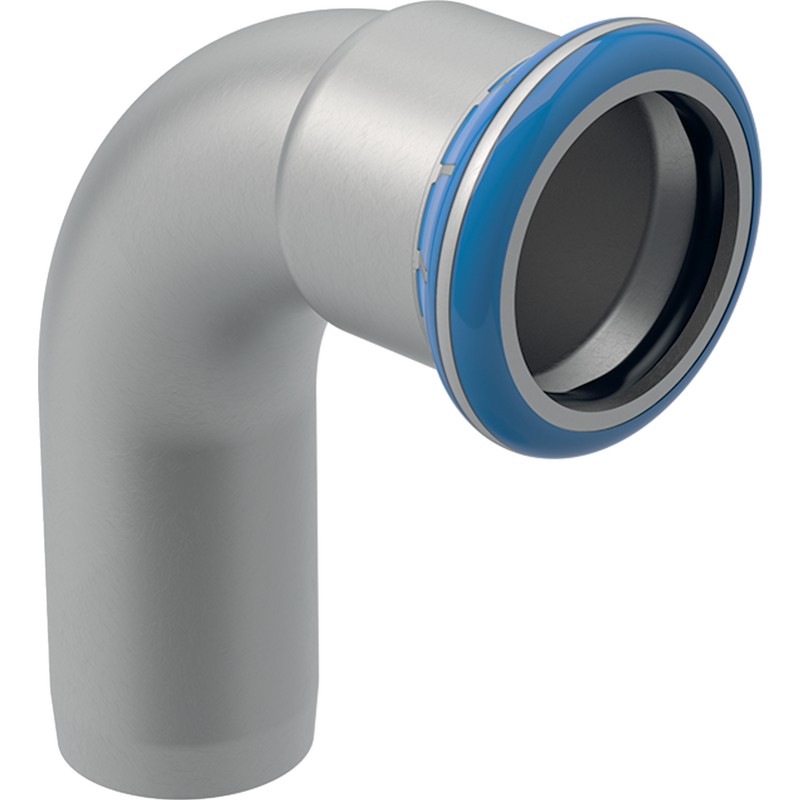

Geberit Mapress Stainless Steel 90 Deg Street Elbow 15mm to 54mm

Tight corners round pumps and valves suit the Geberit Mapress 316 Stainless Steel 90 Deg Street Elbow. One end presses onto stainless tube, and the other is a plain end that goes straight into the socket of another fitting.

Building compact runs with the Geberit Mapress 316 Stainless Steel 90 Deg Street Elbow

Plugging the elbow directly into a tee or valve adaptor turns the run through a right angle with no pipe in between. That keeps pump sets and manifolds short. It also saves cutting and preparing tiny lengths of stainless tube, which are fiddly to hold and to press.

• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm and 54mm
• One press socket, one plain end
• 316 Stainless steel
• For use with Mapress stainless fittings and tube

Mark the insertion depth on the plain end just as you would on pipe. Push it fully into the mating fitting, line up the elbow and press. Then prepare the tube for the other end, push home and press again. If several fittings are close together, work out an order that leaves room for the press jaws on each one. Find other elbows in our Geberit Mapress 316 stainless steel category.

Collecting stainless elbows in Glasgow

The Plumb Parts counter sits at 555 South Street, Glasgow G14 0QX. It opens Mon-Fri 8am-5pm and Sat-Sun 8am-1pm, and the range can be ordered online.

Specification

• Brand: Geberit
• Range: Mapress 316 Stainless Steel
• Material: CrNiMo 316 stainless steel 1.4401 (316)
• Connection: Press Fit socket on one end (black CIIR seal ring), plain spigot on the other
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm and 54mm
• Max pressure: 16 bar for drinking water and heating water
• Max temperature: 100°C for drinking water and heating water without antifreeze
• Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe

Common Questions

Which sizes are listed?

Every size from 15mm to 54mm: 15mm, 22mm, 28mm, 35mm, 42mm and 54mm. For larger pipe, use a standard 90 degree elbow with a short piece of system pipe.

Can the spigot go into a valve adaptor?

Yes, if that adaptor has a Mapress press socket of the same size. The spigot is treated as a pipe end and is sealed when that socket is pressed.

What pressure can the run take?

Geberit rate Mapress 316 Stainless Steel at 16 bar for drinking water and heating water. Normal mains and sealed heating pressures sit well inside that figure.
