Geberit Mapress Stainless Steel Elbow Adaptor 90 Deg Male Thread 15mm to 54mm

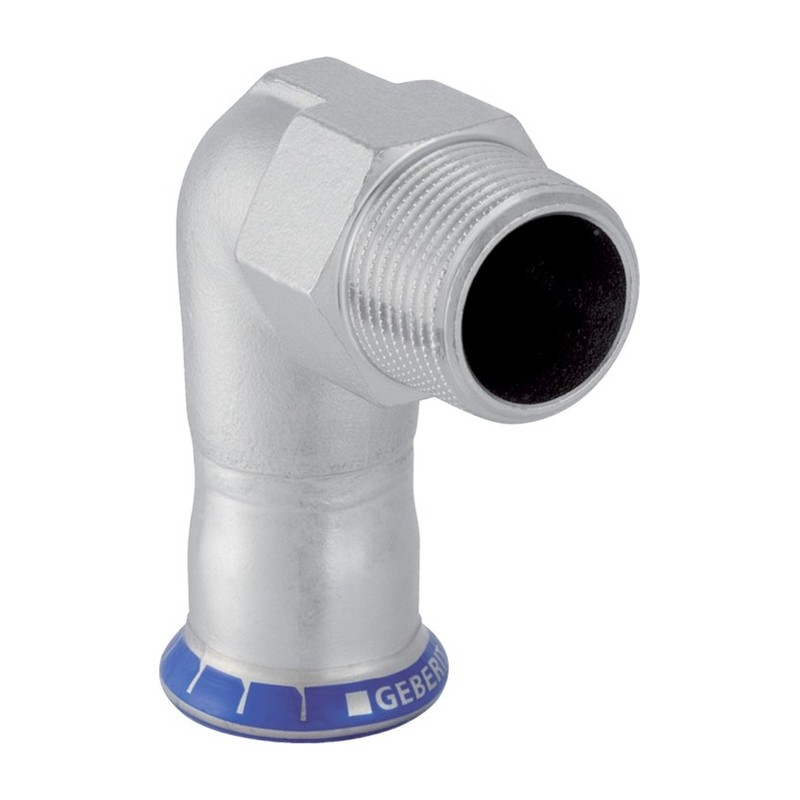

When stainless press pipe has to turn a corner into a female threaded port, use this Geberit Mapress 316 Stainless Steel Elbow Adaptor 90 Deg Male Thread. It has a press socket for stainless tube and, at right angles to it, a male thread.

Where a Geberit Mapress 316 Stainless Steel Elbow Adaptor 90 Deg Male Thread fits

Female ports appear on valve bodies, strainers, cylinders and tank bosses. Where the pipe arrives from the side, this elbow adaptor connects it with a single fitting. That means fewer joints to make and less to check at commissioning.

• 15mm x 1/2″
• 22mm x 3/4″ and 28mm x 1″
• 35mm x 1.1/4″ and 42mm x 1.1/2″
• 54mm x 2″

Each pipe size has a single thread size here, which keeps ordering easy. The threaded joint should be made before pressing, using a sealant that suits 316 stainless steel. Line up the elbow, then press the socket end once the pipe is cut, deburred and marked. If the fitting needs to be tightened further to line up, do it before pressing, never after. Support the pipe near the elbow so the threaded port is not carrying weight. You can find the female thread elbow adaptor under Geberit Mapress 316 stainless steel as well.

Picking up elbow adaptors in Glasgow

Plumb Parts sells them over the counter at 555 South Street, Glasgow G14 0QX. Visit Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or order online.

Specification

• Brand: Geberit
• Range: Mapress 316 Stainless Steel
• Maker code: 33839 (54mm x 2″)
• Material: CrNiMo 316 stainless steel 1.4401 (316)
• Connection: Press Fit socket (black CIIR seal ring) at 90 degrees to a male thread
• Sizes: 15mm x 1/2″, 22mm x 3/4″, 28mm x 1″, 35mm x 1.1/4″, 42mm x 1.1/2″ and 54mm x 2″
• Max pressure: 16 bar for drinking water and heating water
• Max temperature: 100°C for drinking water and heating water without antifreeze
• Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe

Common Questions

What is a male elbow? A fitting that turns the pipe through 90 degrees and finishes in an outside thread. This one is pressed onto stainless Mapress pipe and screws into a female threaded part.

What sizes does the stainless male elbow come in? From 15mm x 1/2 inch up to 54mm x 2 inch. Pick the thread to suit what you’re connecting to.

Is it suitable for heating circuits? Yes, it’s for heating and cooling water as well as hot and cold drinking water, up to 16 bar.

Why is it made from 1.4401 stainless? That grade contains molybdenum, which gives it good resistance to corrosion over the long term.

How do I know if the elbow has been pressed? Check the blue pressing indicator, which also has the size printed on it. A joint left unpressed will leak as soon as you pressure test.

Can I collect stainless Mapress at the weekend? Yes, our counter at 555 South Street, Glasgow is open 8am to 1pm on Saturday and Sunday, as well as 8am to 5pm on weekdays.

Datasheets

• Geberit Mapress 316 Stainless Steel Application Overview (Liquid Media) (PDF)
