Geberit Mapress Copper Reducer 22mm to 108mm

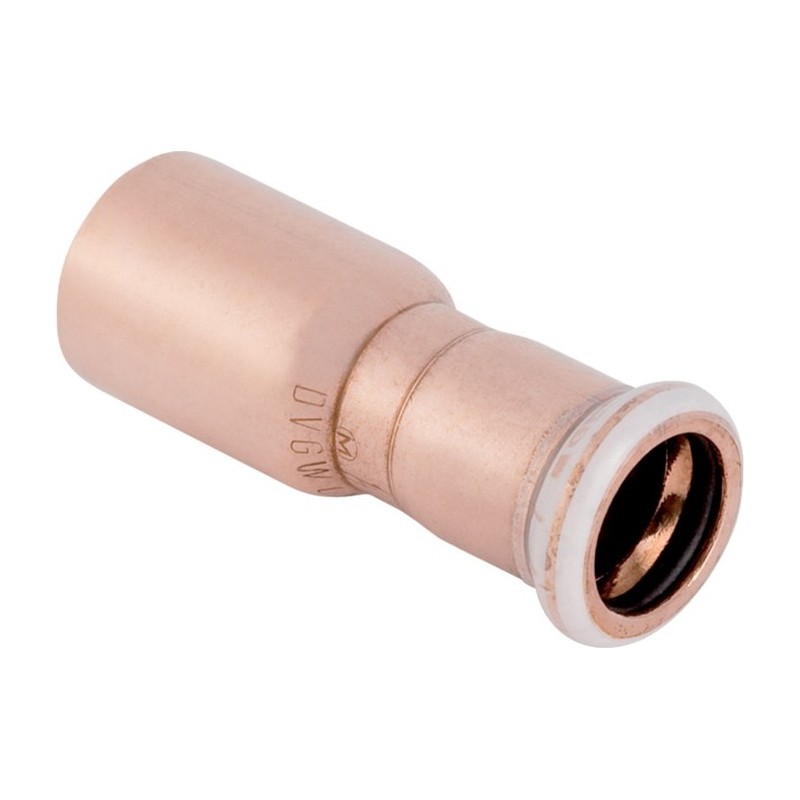

The Geberit Mapress Copper Reducer steps a copper run down a size, with a plain spigot on the large end that goes into a fitting and a press socket on the small end for the tube. Push the plain end into a tee, elbow or coupling of the larger size and press it there. We sell it in 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 22mm, 42mm x 28mm, 42mm x 35mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm, 66.7mm x 28mm, 66.7mm x 35mm, 66.7mm x 42mm, 66.7mm x 54mm, 76.1mm x 35mm, 76.1mm x 42mm, 76.1mm x 54mm, 76.1mm x 66.7mm, 88.9mm x 42mm, 88.9mm x 54mm, 88.9mm x 76.1mm, 108mm x 42mm, 108mm x 54mm, 108mm x 66.7mm, 108mm x 76.1mm and 108mm x 88.9mm, all genuine Geberit stock.

Mapress Copper water fittings come with a black EPDM seal ring already fitted and a white pressing indicator that comes off when the joint is done. They press on to copper tube to EN 1057 with an M contour jaw, with no flame and no hot works permit. Up to 54mm a joint that has not been pressed is made to leak under test, so a missed one shows up before handover.

Specification

• Brand: Geberit
• Range: Geberit Mapress Copper
• Maker code: 62305 (22mm x 15mm), 62307 (28mm x 15mm), 62309 (28mm x 22mm), 62312 (35mm x 22mm), 62313 (35mm x 28mm), 62316 (42mm x 22mm), 62317 (42mm x 28mm), 62318 (42mm x 35mm), 62322 (54mm x 28mm), 62323 (54mm x 35mm), 62324 (54mm x 42mm), 62325 (66.7mm x 28mm), 62326 (66.7mm x 35mm), 62327 (66.7mm x 42mm), 62328 (66.7mm x 54mm), 62329 (76.1mm x 35mm), 62330 (76.1mm x 42mm), 62331 (76.1mm x 54mm), 62332 (76.1mm x 66.7mm), 62333 (88.9mm x 42mm), 62334 (88.9mm x 54mm), 62336 (88.9mm x 76.1mm), 62337 (108mm x 42mm), 62338 (108mm x 54mm), 62339 (108mm x 66.7mm), 62340 (108mm x 76.1mm), 62341 (108mm x 88.9mm)
• Sizes: 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 22mm, 42mm x 28mm, 42mm x 35mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm, 66.7mm x 28mm, 66.7mm x 35mm, 66.7mm x 42mm, 66.7mm x 54mm, 76.1mm x 35mm, 76.1mm x 42mm, 76.1mm x 54mm, 76.1mm x 66.7mm, 88.9mm x 42mm, 88.9mm x 54mm, 88.9mm x 76.1mm, 108mm x 42mm, 108mm x 54mm, 108mm x 66.7mm, 108mm x 76.1mm, 108mm x 88.9mm
• Material: Cu-DHP copper (CW024A)
• Seal ring: Black EPDM
• Connection: Press fit, M contour, with pressing indicator
• Max pressure: 16 bar
• Max temperature: 100°C on drinking water
• Suitable for: Hot and cold drinking water, heating and cooling water, on copper tube to EN 1057

Common Questions

What is the Copper Reducer used for? It steps a copper run down a size, with a plain spigot on the large end that goes into a fitting and a press socket on the small end for the tube. Push the plain end into a tee, elbow or coupling of the larger size and press it there.

How are the sizes written? The bigger size comes first, so 28mm x 22mm goes from 28mm to 22mm.

Can I use it on gas? No, this is the water and heating version. Geberit make a separate Mapress Copper gas range with a yellow seal ring.

What press jaws do I need? Mapress uses an M contour, so you need M jaws in the size of the tube. Check your press tool maker’s list before you start.

Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.

Datasheets

• Geberit Mapress Copper Application Overview (PDF)
