Geberit Mapress Copper Slip Coupling 15mm to 108mm

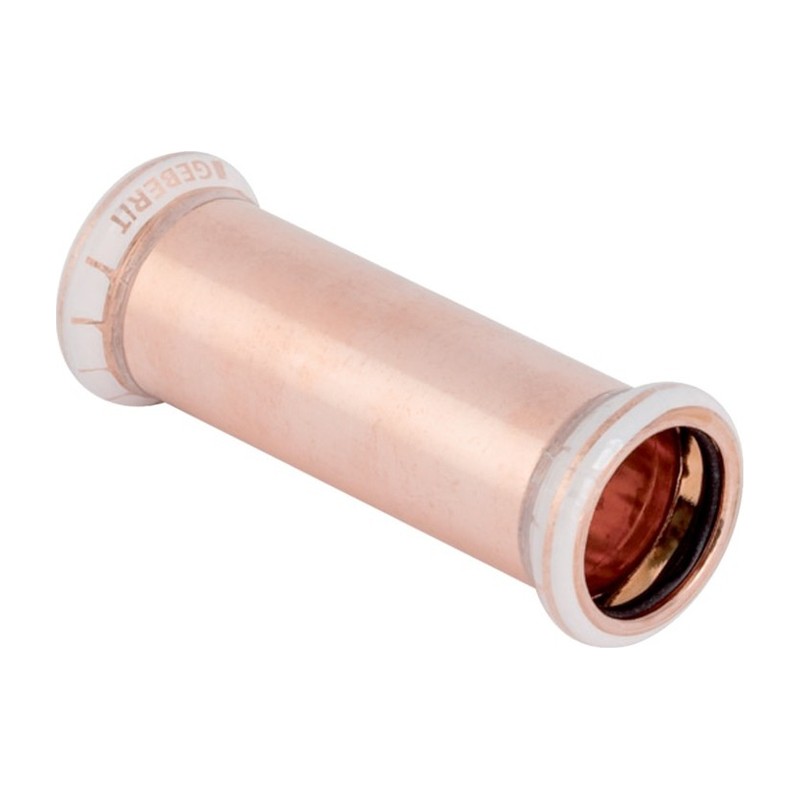

The Geberit Mapress Copper Slip Coupling is a press coupling with no tube stop inside, so it slides fully along the tube. That makes it the one to use for repairs: cut out the damaged piece, slide the coupling over, line it up across the gap and press both ends. We sell it in 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm, all genuine Geberit stock.

Mapress Copper water fittings come with a black EPDM seal ring already fitted and a white pressing indicator that comes off when the joint is done. They press on to copper tube to EN 1057 with an M contour jaw, with no flame and no hot works permit. Up to 54mm a joint that has not been pressed is made to leak under test, so a missed one shows up before handover.

Specification

• Brand: Geberit
• Range: Geberit Mapress Copper
• Maker code: 62102 (15mm), 62104 (22mm), 62105 (28mm), 62106 (35mm), 62107 (42mm), 62108 (54mm), 62110 (66.7mm), 62111 (76.1mm), 62112 (88.9mm), 62113 (108mm)
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm, 108mm
• Material: Cu-DHP copper (CW024A)
• Seal ring: Black EPDM
• Connection: Press fit, M contour, with pressing indicator
• Max pressure: 16 bar
• Max temperature: 100°C on drinking water
• Suitable for: Hot and cold drinking water, heating and cooling water, on copper tube to EN 1057

Common Questions

What is the Copper Slip Coupling used for? It is a press coupling with no tube stop inside, so it slides fully along the tube. That makes it the one to use for repairs: cut out the damaged piece, slide the coupling over, line it up across the gap and press both ends.

Can I use it on gas? No, this is the water and heating version. Geberit make a separate Mapress Copper gas range with a yellow seal ring.

What press jaws do I need? Mapress uses an M contour, so you need M jaws in the size of the tube. Check your press tool maker’s list before you start.

Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.

Datasheets

• Geberit Mapress Copper Application Overview (PDF)
