Geberit Mapress 90 Deg Plain End Copper Bend 15mm to 108mm

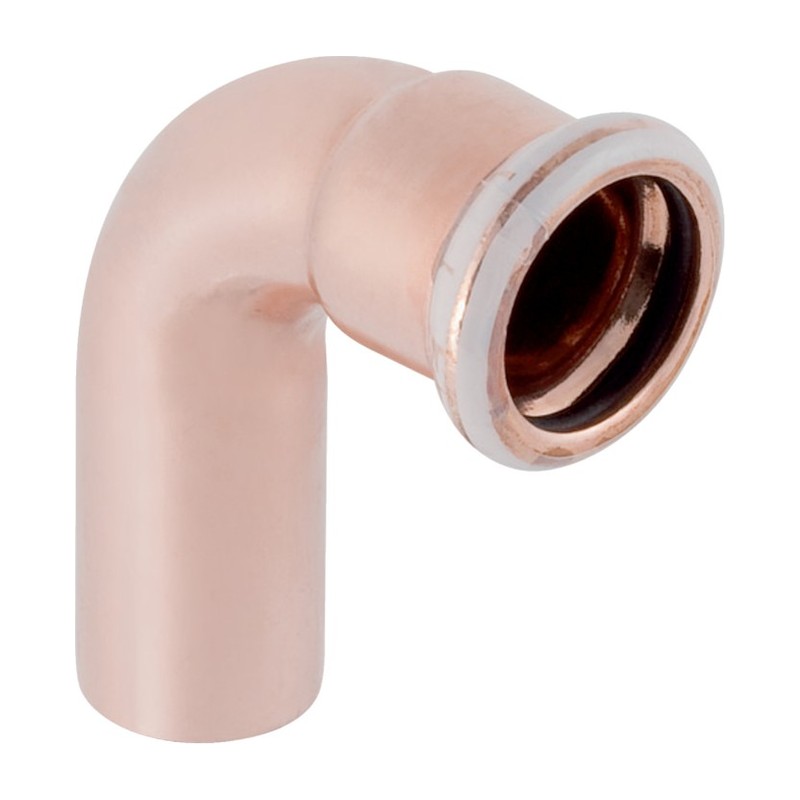

The Geberit Mapress 90 Deg Plain End Copper Bend is a street elbow: a press socket at one end and a plain spigot at the other that pushes into another fitting. It lets you make a tight turn straight out of a tee or coupling without a short length of tube. We sell it in 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm and 108mm, all genuine Geberit stock. It is also known as a 90 Degree Street Elbow.

Mapress Copper water fittings come with a black EPDM seal ring already fitted and a white pressing indicator that comes off when the joint is done. They press on to copper tube to EN 1057 with an M contour jaw, with no flame and no hot works permit. Up to 54mm a joint that has not been pressed is made to leak under test, so a missed one shows up before handover.

Specification

• Brand: Geberit
• Range: Geberit Mapress Copper
• Also known as: 90 Degree Street Elbow
• Maker code: 60302 (15mm), 60304 (22mm), 60305 (28mm), 60306 (35mm), 60307 (42mm), 60308 (54mm), 60310 (66.7mm), 60311 (76.1mm), 60312 (88.9mm), 60313 (108mm)
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 66.7mm, 76.1mm, 88.9mm, 108mm
• Material: Cu-DHP copper (CW024A)
• Seal ring: Black EPDM
• Connection: Press fit, M contour, with pressing indicator
• Max pressure: 16 bar
• Max temperature: 100°C on drinking water
• Suitable for: Hot and cold drinking water, heating and cooling water, on copper tube to EN 1057

Common Questions

What is the 90 Deg Plain End Copper Bend used for? It is a 90 Degree Street Elbow: a press socket at one end and a plain spigot at the other that pushes into another fitting. It lets you make a tight turn straight out of a tee or coupling without a short length of tube.

Can I use it on gas? No, this is the water and heating version. Geberit make a separate Mapress Copper gas range with a yellow seal ring.

What press jaws do I need? Mapress uses an M contour, so you need M jaws in the size of the tube. Check your press tool maker’s list before you start.

Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.
