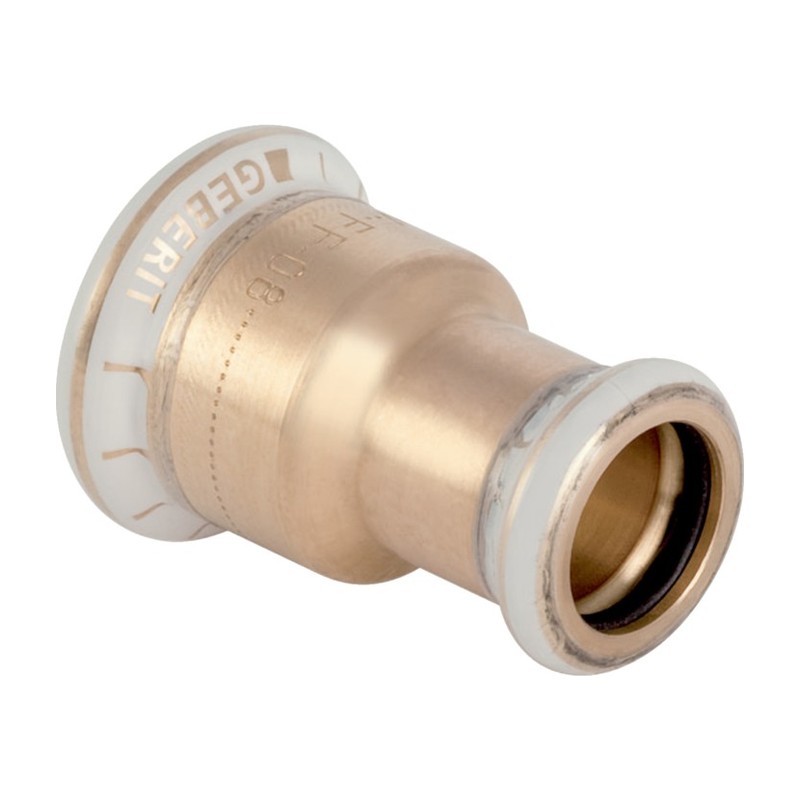

Geberit Mapress Copper Reduced Coupling 22mm x 15mm

The Geberit Mapress Copper Reduced Coupling joins a 22mm copper tube to a 15mm copper tube in a straight line, with a press socket at each end. Use it where a 22mm run drops down to 15mm, for example taking a branch off to a basin, a radiator or an outside tap, without a separate reducer and coupling.

The body is lead-free gunmetal, with a black CIIR seal ring already fitted and a pressing indicator that comes off when the joint is done. It presses on to copper tube to EN 1057 with an M contour jaw, with no flame and no hot works permit. A joint that has not been pressed is made to leak under test, so a missed one shows up before handover.

Specification

• Brand: Geberit
• Range: Geberit Mapress Copper
• Maker code: 62055 (22mm x 15mm)
• Size: 22mm x 15mm
• Material: Lead-free gunmetal
• Seal ring: Black CIIR
• Connection: Press fit both ends, M contour, with pressing indicator
• Suitable for: Hot and cold drinking water, heating and cooling water, on copper tube to EN 1057

Common Questions

What is the Reduced Coupling used for? It joins 22mm copper tube straight on to 15mm copper tube in one fitting, so you do not need a reducer and a coupling.

Can I use it on gas? No, this is the water and heating version. Geberit make a separate Mapress Copper gas range with a yellow seal ring.

What press jaws do I need? Mapress uses an M contour, so you need M jaws in 22mm and 15mm.

Can I see it before I buy? Yes, call in to our Glasgow shop at 555 South Street, G14 0QX, open 7 days.

Datasheets

• Geberit Mapress Copper Application Overview (PDF)
