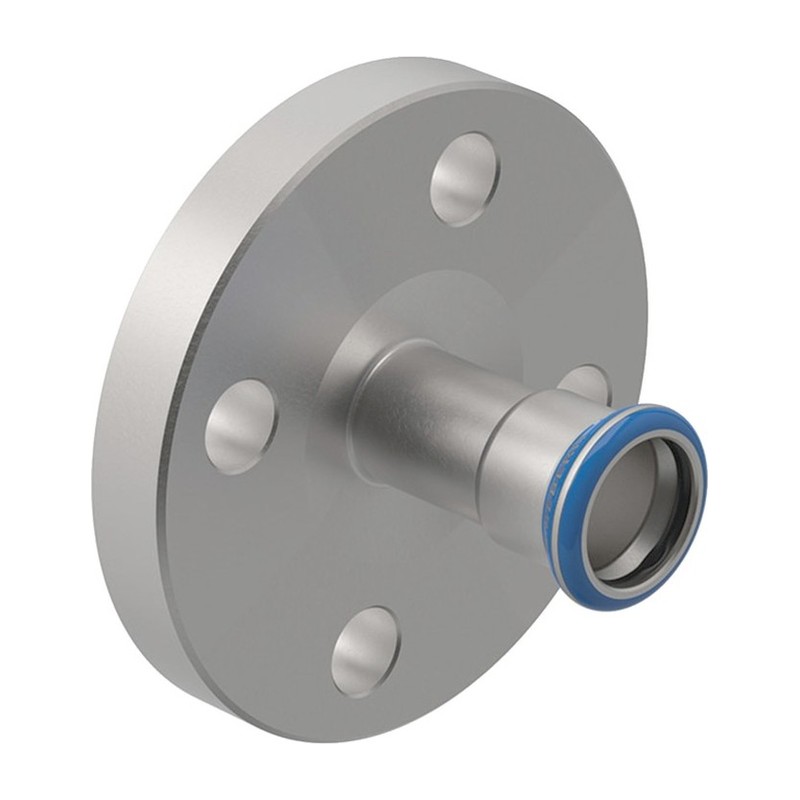

Geberit Mapress Stainless Steel Flange PN 10/16 with Pressing Sockets 15mm to 108mm
Price range: £27.49 through £404.77 inc VAT ( Price range: £22.91 through £337.31 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
Geberit Mapress 316 Stainless Steel Flange PN 10/16 with Pressing Sockets presses straight onto stainless pipe and bolts to PN 10/16 flanged equipment. Sizes 15mm to 108mm, at Plumb Parts in Glasgow.
| SKU | Thumbnail | Sizes | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| GEBSSFLANGE15 |
|
15mm | £27.49 inc VAT (£22.91 ex VAT) |
-
+
|
£27.49 inc VAT | ||
| GEBSSFLANGE22 |
|
22mm | £72.73 inc VAT (£60.61 ex VAT) |
-
+
|
£72.73 inc VAT | ||
| GEBSSFLANGE28 |
|
28mm | £88.92 inc VAT (£74.10 ex VAT) |
-
+
|
£88.92 inc VAT | ||
| GEBSSFLANGE35 |
|
35mm | £125.59 inc VAT (£104.66 ex VAT) |
-
+
|
£125.59 inc VAT | ||
| GEBSSFLANGE42 |
|
42mm | £147.30 inc VAT (£122.75 ex VAT) |
-
+
|
£147.30 inc VAT | ||
| GEBSSFLANGE54 |
|
54mm | £181.66 inc VAT (£151.38 ex VAT) |
-
+
|
£181.66 inc VAT | ||
| M33739 |
|
76mm | £286.93 inc VAT (£239.11 ex VAT) |
-
+
|
£286.93 inc VAT | ||
| 33740 |
|
89mm | £340.97 inc VAT (£284.14 ex VAT) |
-
+
|
£340.97 inc VAT | ||
| GEBSSFLANGE108 |
|
108mm | £404.77 inc VAT (£337.31 ex VAT) |
-
+
|
£404.77 inc VAT |
Fitting a Geberit Mapress 316 Stainless Steel Flange PN 10/16 with Pressing Sockets lets you go straight from stainless tube to a flanged valve or pump. The flange end bolts to equipment drilled to PN 10/16, and the other end is a press socket that goes directly onto the pipe.
Geberit Mapress 316 Stainless Steel Flange PN 10/16 with Pressing Sockets sizes
- 15mm, 22mm and 28mm
- 35mm, 42mm and 54mm
- 76mm, 89mm and 108mm
- PN 10/16 flange with a press socket
Because the socket presses onto tube, you need no extra coupling or stub. That helps where pipe comes straight into a pump, a flanged valve or a plate heat exchanger. The small sizes are handy for flanged instruments and small pumps, while the larger ones suit plant room headers.
Confirm the flange rating on the equipment, PN 10 or PN 16, before you order. Bolt the flange first with the right gasket and fixings, tightening across the bolt circle a bit at a time. Then cut and deburr the pipe, mark the depth, push it fully in and press. Keep the pipe supported close to the flange so its weight does not hang on the equipment. The plain end flange is listed with the rest of our Geberit Mapress 316 stainless steel.
Collecting flanges in Glasgow
Plumb Parts has a counter at 555 South Street, Glasgow G14 0QX, open Mon-Fri 8am-5pm and Sat-Sun 8am-1pm. These can also be ordered online.
Specification
- Brand: Geberit
- Range: Mapress 316 Stainless Steel
- Maker code: 33732 (15mm), 33734 (22mm), 33735 (28mm), 33737 (42mm), 33738 (54mm), 33740 (89mm), 33741 (108mm)
- Material: CrNiMo 316 stainless steel 1.4401 (316)
- Connection: PN 10/16 flange with a Press Fit socket (black CIIR seal ring)
- Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76mm, 89mm and 108mm
- Max pressure: 16 bar for drinking water and heating water
- Max temperature: 100°C for drinking water and heating water without antifreeze
- Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe
- Standard/approval: EN 1092-1
Common Questions
Does it press straight onto pipe?
Yes, the socket end goes directly onto Mapress 316 Stainless Steel pipe. That saves an extra coupling or stub between the pipe and the flange.
Who uses the 15mm flange?
It suits small flanged instruments, meters and pumps on light pipework. Most plant room headers use the 54mm to 108mm sizes instead.
Should the flange be bolted before pressing?
Yes. Bolt the flange to the equipment first, then press the pipe, so the pressed joint takes no strain while the bolts are pulled up.
Datasheets
| Sizes |
15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,76mm ,89mm ,108mm |
|---|
