Geberit Mapress Stainless Steel Flanged Stub Plain End for Loose Flange PN 10/16 22mm to 108mm

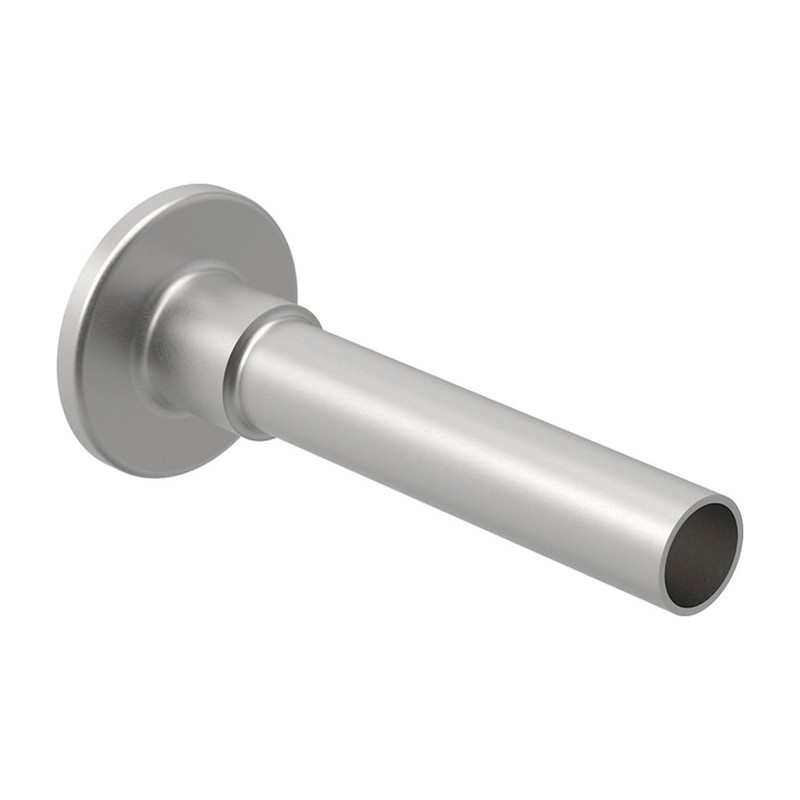

Larger stainless runs often meet flanged valves and pumps through the Geberit Mapress 316 Stainless Steel Flanged Stub Plain End for Loose Flange PN 10/16. It is a stub with a collar at one end and a plain spigot at the other, used with a separate loose flange drilled to PN 10/16.

How the Geberit Mapress 316 Stainless Steel Flanged Stub Plain End for Loose Flange PN 10/16 works

The loose flange slides over the stub and bears against the collar. Because the flange is free to turn, you can line its bolt holes up with the equipment without twisting the pipe. The plain end then pushes into a Mapress press socket, such as a coupling or tee, and is pressed.

• 22mm, 28mm and 35mm
• 42mm and 54mm
• 76.1mm, 88.9mm and 108mm
• Stub with plain end, for a loose PN 10/16 flange

Remember the loose flange itself is a separate item, so order it alongside the stub. Slide it on before you make the pressed joint, otherwise it cannot go on afterwards. Bolt the flange to the equipment with a suitable gasket, tightening evenly round the bolt circle. Mark the plain end for depth, push it into the socket and press. A PN6 version is listed too, so check the rating on your equipment. More flanged parts are in the Geberit Mapress 316 stainless steel range.

Flanged stubs at our Glasgow counter

Plumb Parts supplies these from 555 South Street, Glasgow G14 0QX. Visit Mon-Fri 8am-5pm or Sat-Sun 8am-1pm, or order online.

Specification

• Brand: Geberit
• Range: Mapress 316 Stainless Steel
• Maker code: 36142 (28mm), 36147 (88.9mm), 36148 (108mm)
• Material: CrNiMo 316 stainless steel 1.4401 (316)
• Connection: Flanged stub with a plain spigot to fit a Mapress socket, for a loose PN 10/16 flange (flange not included)
• Sizes: 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm and 108mm
• Max pressure: 16 bar for drinking water and heating water
• Max temperature: 100°C for drinking water and heating water without antifreeze
• Suitable for: Hot and cold drinking water, heating and cooling circuits, on Mapress 316 Stainless Steel system pipe
• Standard/approval: EN 1092-1

Common Questions

Is the loose flange included?

No, the stub and the loose flange are separate items. Order both together, and slide the flange onto the stub before any pressing, because it will not go on afterwards.

Why use a loose flange?

A loose flange turns freely on the stub. That means the bolt holes can be lined up with the pump or valve without twisting the pressed pipe.

Does the stub press straight onto pipe?

No, it has a plain end. That end pushes into the socket of a Mapress coupling, elbow or tee, and the socket is pressed with the jaw for the size.

Datasheets

• Geberit Mapress 316 Stainless Steel Application Overview (Liquid Media) (PDF)
