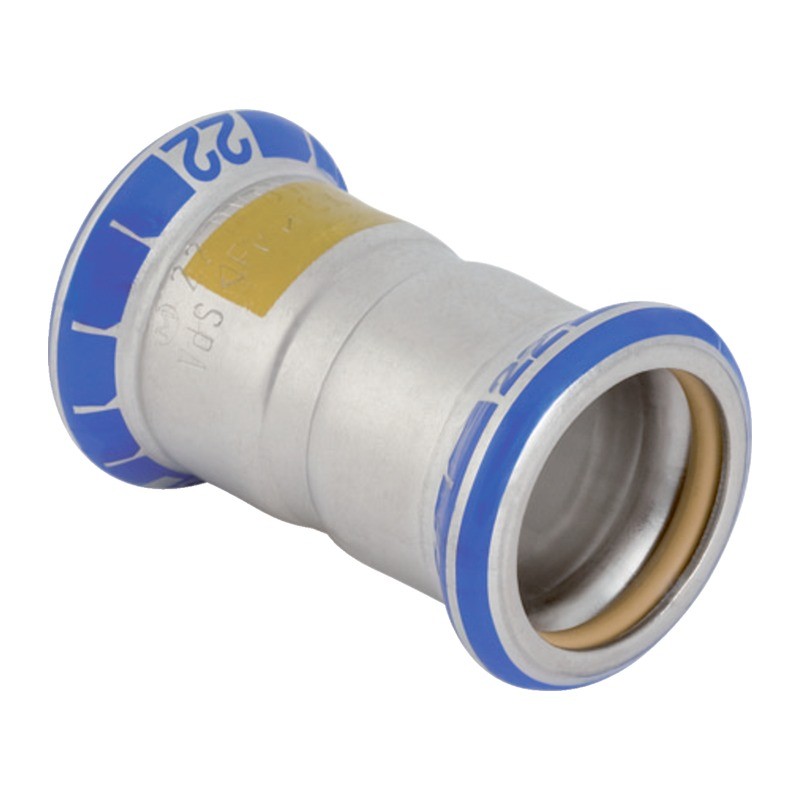

Geberit Mapress Stainless Steel Gas Coupling 15mm to 108mm

The Mapress Stainless Gas Coupling is a plain straight connector for joining two lengths of Mapress stainless pipe on a gas installation, in sizes from 15mm to 108mm, for Gas Safe registered engineers. Each end is a press socket, with a stop in the middle so the pipe goes in to the right depth.

Geberit make it from CrNiMo 316 stainless steel 1.4401 to EN 10088, with yellow HNBR seal rings, yellow marking and yellow socket plugs. The range is listed for natural gas, liquefied gas and biogas. It is LABS-free, and the joint is made to leak until it is pressed, so the tightness test picks up anything left undone.

Cut square with a proper pipe cutter, not a hacksaw, and deburr inside and out. Mark the insertion depth on each pipe end so you can see nothing has moved before you press. If you are joining into a fixed run where the pipes cannot be sprung, use a slip coupling instead. We carry 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm and 108mm.

Slip couplings, elbows and stop ends are in our Geberit Mapress Gas 316 Stainless Steel Press Fit section.

Specification

• Brand: Geberit
• Range: Mapress 316 Stainless Steel Gas
• Maker code: 34101 (15mm), 34103 (22mm), 34104 (28mm), 34105 (35mm), 34106 (42mm), 34107 (54mm), 34248 (76.1mm), 34249 (88.9mm), 34250 (108mm)
• Material: CrNiMo 316 stainless steel 1.4401 (EN 10088), yellow HNBR seal ring
• Connection: Press socket both ends, with centre stop
• Sizes: 15mm, 22mm, 28mm, 35mm, 42mm, 54mm, 76.1mm, 88.9mm, 108mm
• Suitable for: Natural gas, liquefied gas and biogas (Geberit datasheet)
• Standard/approval: Gas approvals to DVGW G 260
• Max pressure: 5 bar (maximum operating pressure)
• Max temperature: -20°C to +70°C

Common Questions

How do I tell gas Mapress from water Mapress? Gas fittings are marked yellow with a yellow HNBR seal and yellow plugs. The water range has black seals and clear plugs, and must not be used on gas.

Why use a pipe cutter rather than a hacksaw? A cutter gives a square, clean end. A ragged hacksaw cut and burrs can damage the seal as the pipe goes in.

Does the Mapress Stainless Gas Coupling need the yellow plugs left in? Keep them in until you are ready to fit, so dust and swarf stay out of the seal.

Who can install Mapress gas fittings? Any work on a gas installation must be carried out by a Gas Safe registered engineer, including the tightness test.

Datasheets

• Geberit Mapress 316 Stainless Steel Application Overview (Gaseous Media) (PDF)
