Geberit Mapress Stainless Steel Long 90 Degree Bend 22mm to 28mm

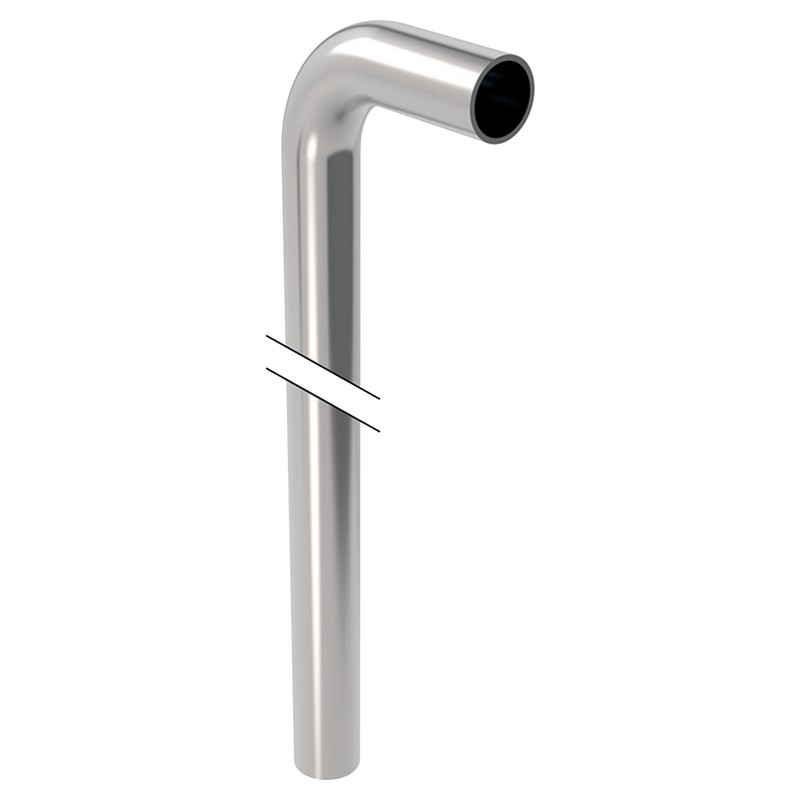

The Geberit Mapress 316 Stainless Steel Long 90 Degree Bend is a long radius 90 degree stainless tube bend with plain ends for the Mapress Stainless Steel press fit system. We list it in 22mm, 28mm for plumbers, gas engineers and mechanical contractors in Glasgow and the West of Scotland.

Its long legs let you come up through a floor or wall and turn in one piece. Cut the legs to length as needed. It is made of 316 stainless steel (CrNiMo 1.4401) with a black CIIR sealing ring and a pressing indicator that shows any joint left unpressed. Use it for drinking water (hot and cold), heating water and cooling water.

Mark the insertion depth on the tube before you push it in, so you know it is fully home, then press with Geberit Mapress press jaws of the right size.

Elbows, tees and couplings to go with it are in our Geberit Mapress 316 stainless steel press fit range.

Specification

• Brand: Geberit
• Range: Mapress Stainless Steel
• Geberit article numbers: 30414 (22mm), 30415 (28mm)
• Type: Long 90 Degree Bend
• Material: 316 stainless steel, CrNiMo 1.4401 (EN 10088)
• Seal: CIIR sealing ring, black
• Sizes: 22mm, 28mm
• Suitable for: Drinking water (hot and cold), heating water and cooling water

Common Questions

Does the long bend have press sockets? No. Both ends are plain, the same outside size as the tube, and go into the press sockets of other fittings.

Is this 304 or 316 stainless steel? 316. Geberit make Mapress Stainless Steel fittings in CrNiMo steel 1.4401, which is grade 316.

Do you have the Geberit Mapress 316 Stainless Steel Long 90 Degree Bend 28mm in stock in Glasgow? Yes. Every size shows In Stock and can be collected from our counter.
