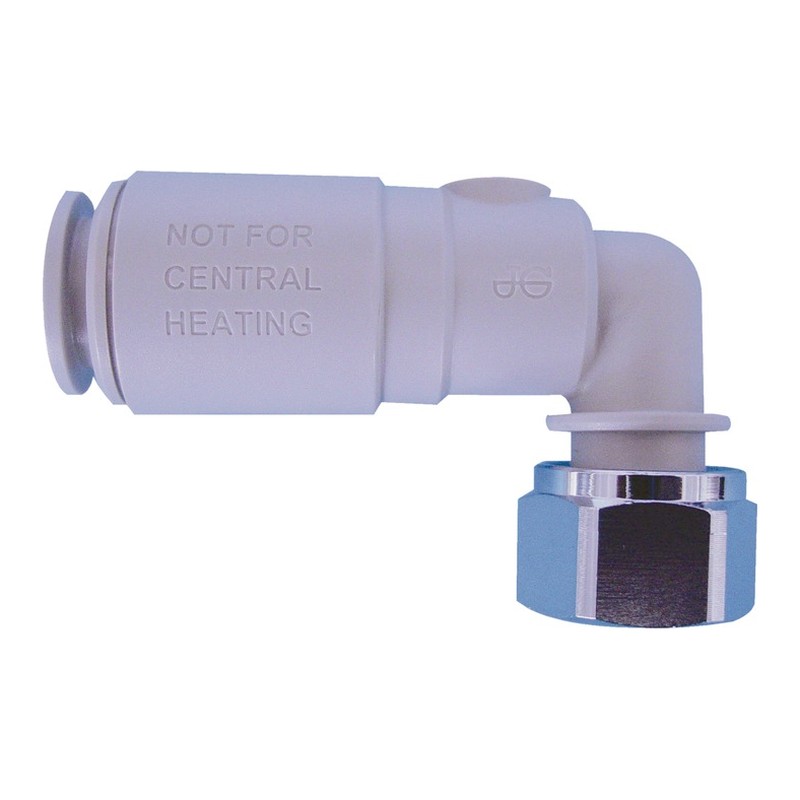

JG Speedfit Plastic Angle Service Valve with Tap Connector 15mm

JG Speedfit Plastic Angle Service Valve with Tap Connector

At Plumb Parts our JG Speedfit Fittings are available in the following:

Metric sizes 10mm, 15mm, 20mm, 22mm, 28mm

And Imperial sizes from 1/2″,  3/4″

Our range of JG Speedfit Fittings includes JG Speedfit Equal Straight Coupler, JG Speedfit Reducing Coupler,  JG Speedfit  Elbow, JG Speedfit Stem Elbow, JG Speedfit Reducing Tees, JG Speedfit Male Couplers, JG Speedfit Straight Tap Connectors, JG Speedfit Bent Tap Connectors, JG Speedfit StopEnds, JG Speedfit Fitting Reducers, JG Speedfit Tank Connectors, JG Speedfit Plugs,JG Speedfit Conversion Connector, JG Speedfit Hose Connector, JG Speedfit 4  Way Manifold, JG Speedfit 4 Port Rail Manifold, JG Speedfit Brass Manifold, JG Speedfit Brass Male Coupler, JG Speedfit Brass Female Couplers, JG Speedfit Brass Back plate Elbow, JG Speedfit Brass Male Stem Adaptor, JG Speedfit Brass Female Stem Adaptor, JG Speedfit Flexible Hoses, JG Speedfit Stop Tap, JG Speedfit Appliance Taps, JG Speedfit Emergency Shut Off Tap, JG Speedfit Angle Stop Valve, JG Speedfit Double Check Valve, JG Speedfit Plastic Service Valves,  JG Speedfit Plastic Service Vale with Tap Connector, JG Speedfit Plastic Angle Service Valve with Tap Connector, JG Speedfit Plastic Ball Valve, JG Speedfit Double Check Valve with Service Valve, JG Speedfit Brass Service Vale, JG Speedfit Chrome Service Valve, JG Speedfit Chrome Service Valve with Tap Connector, JG Speedfit Chrome Ball Valve, JG Speedfit Brass Stop Valve, JG Speedfit Drain Cock Valve, JG Speedfit Radiator Outlet Plate, JG Speedfit Pipe Inserts, JG Speedfit Chrome Ball Valves, JG Speedfit SuperSeal Pipe Inserts, JG Speedfit 2Way Divider, JG Speedfit Conduit Elbow, JG Speedfit Collect Locking Clips, JG Speedfit Release Aids.

Plastic Push-Fit fitting to connect pipe. The uniquely designed fitting incorporates stainless teeth to provide a tight and secure grip on the pipe. The connection is demountable if required, ensuring the system is easy to work when in the ground and needing to maintain and alter existing set-up. Installation time is greatly reduced when compared against traditional fixing methods.

Features:

• Mains fed and indirect cold water systems
• Vented and unvented hot water systems
• Vented central heating systems
• Sealed central heating systems provided temperatures and pressures comply with BS7291 Parts 1 and 3 Class S

Specification

• Brand: JG Speedfit
• Range: Speedfit Push Fit plumbing and heating
• Material: Plastic, white
• Connection: 15mm Push Fit, angled, 1/2″ tap connector
• Sizes: 15mm x 1/2″
• Standard/approval: WRAS approved system
• Max pressure: 12 bar cold at 20°C, 6 bar hot

Common Questions

Where does the angled valve suit?

It suits a feed leaving the wall at the back of a basin and rising to a 1/2″ tap tail. It saves a separate elbow.

Is a plastic valve fine on hot water?

Check the label or the JG data for this valve before using it on anything above normal domestic hot water.

How do I isolate the tap?

A quarter turn shuts it off, so the tap can be worked on while the rest of the water stays on.

Datasheets

• JG Speedfit Plumbing and Heating Technical Information Guide (PDF)
