Pegler Yorkshire SS6 XPress 316 Stainless Steel Reducer 22mm to 54mm

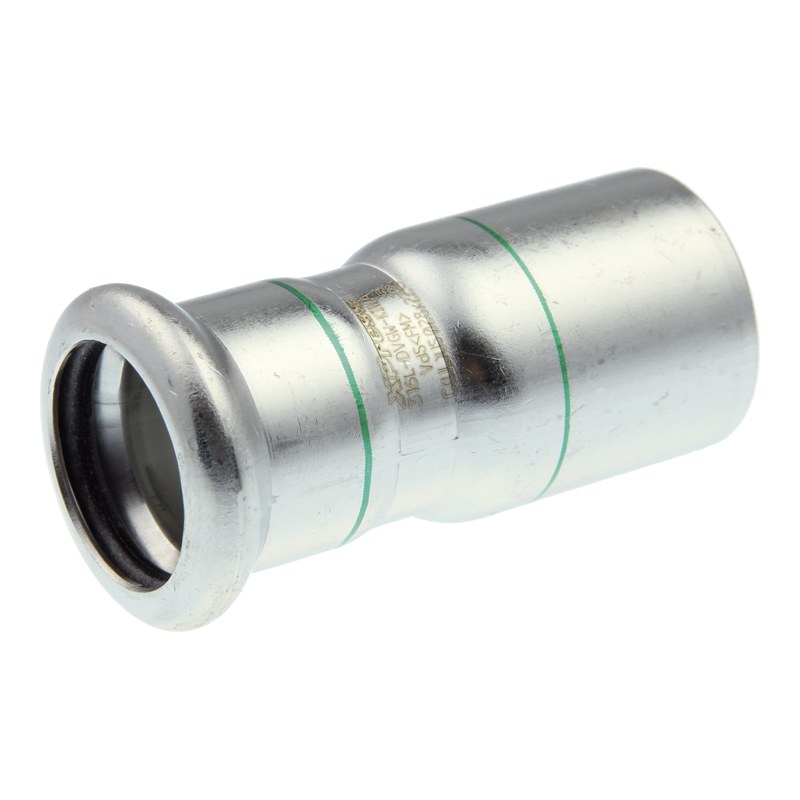

The Pegler Yorkshire XPress 316 Stainless Steel Reducer, maker code SS6, is a fitting reducer with a male spigot on the larger end and a press socket on the smaller end for the XPress Stainless press fit system. We list it in 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 22mm, 42mm x 28mm, 42mm x 35mm, 54mm x 22mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm for plumbers and mechanical contractors on commercial water and heating work in Glasgow and the West of Scotland.

Push the larger end into a press socket of the bigger size and press it, then take the smaller tube into the other end. It is made of 316L stainless steel (1.4404) with an EPDM sealing ring, so it suits drinking water, heating, chilled water and compressed air. Every size, the XPress 316 Stainless Steel Reducer 54mm x 42mm included, can be bought online or over our South Street counter.

XPress uses the M press profile. Mark the insertion depth on the tube before you push it in, so you know it is fully home before you press.

Elbows, tees and couplings to go with it are in our Pegler Yorkshire XPress 316 stainless steel press fit range.

Specification

• Brand: Pegler Yorkshire (VSH, Aalberts IPS)
• Range: XPress Stainless
• Maker code: SS6; article numbers 11713 (22mm x 15mm), 11715 (28mm x 15mm), 11717 (28mm x 22mm), 11719 (35mm x 22mm), 11720 (35mm x 28mm), 11659 (42mm x 22mm), 11722 (42mm x 28mm), 11723 (42mm x 35mm), 11724 (54mm x 22mm), 11725 (54mm x 28mm), 11726 (54mm x 35mm), 11727 (54mm x 42mm)
• Type: Reducer
• Material: 316 stainless steel, grade 316L (1.4404)
• Seal: EPDM sealing ring, M press profile
• Sizes: 22mm x 15mm, 28mm x 15mm, 28mm x 22mm, 35mm x 22mm, 35mm x 28mm, 42mm x 22mm, 42mm x 28mm, 42mm x 35mm, 54mm x 22mm, 54mm x 28mm, 54mm x 35mm, 54mm x 42mm
• Max pressure: 16 bar (PN16)
• Suitable for: Drinking water, heating, chilled water and compressed air

Common Questions

How does the SS6 reducer fit? The larger end is a plain male spigot that goes into another fitting, not onto tube. The smaller end is a press socket for the smaller tube. Sizes are listed larger end first.

Is this 304 or 316 stainless steel? 316. Pegler Yorkshire make XPress Stainless fittings in 316L stainless steel (1.4404).

Do you have the XPress 316 Stainless Steel Reducer 54mm x 42mm in stock in Glasgow? Yes. Every size shows In Stock and can be collected from our counter.

Which press jaws do I need for XPress Stainless? XPress uses the M profile, so use M profile jaws of the right size on a compatible press tool.
