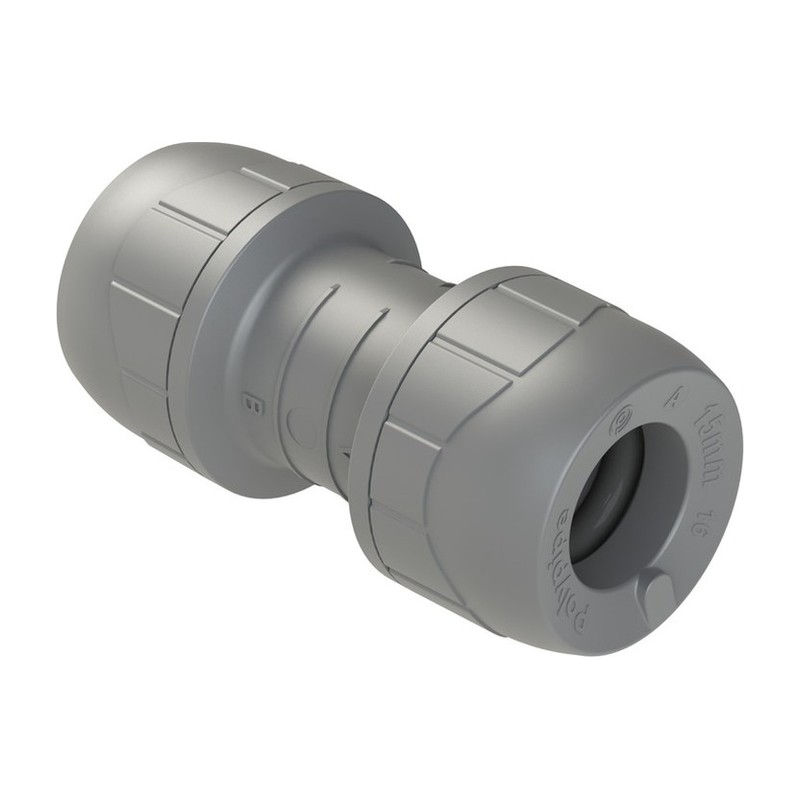

PolyPlumb Straight Coupler 10mm to 28mm

The Polyplumb Straight Coupler is the simplest fitting in the range: two Push Fit sockets of the same size back to back. Push a pipe into each end and they are joined.

Uses for a Polyplumb Straight Coupler

You will use couplers to extend a run beyond one length of pipe, to join plastic to copper, or to repair a damaged section. On a repair, cut out the bad bit, then bridge the gap with fresh pipe and a coupler on both ends. The 10mm size suits microbore heating, and 15mm to 28mm cover water and heating mains.

• Sizes: 10mm, 15mm, 22mm and 28mm
• Straight equal coupler
• Polyplumb Push Fit sockets
• Joins plastic or copper pipe

Mark both pipes with the insertion depth, so you can see each one is fully in. Fit stiffeners in plastic pipe, and take the burr off copper. Leave a little room for expansion on long plastic runs, and clip either side of the coupler. If you need to reduce size, use a reducing coupler from our Polyplumb Fittings.

Couplers from our Glasgow trade counter

Plumb Parts, 555 South Street, Glasgow G14 0QX. Call in Monday to Friday 8am to 5pm, Saturday and Sunday 8am to 1pm, or order online.

Specification

• Brand: Polyplumb
• Range: Polyplumb Push Fit
• Maker code: PB010 (10mm), PB015 (15mm), PB022 (22mm), PB028 (28mm)
• Connection: Push Fit sockets both ends
• Sizes: 10mm, 15mm, 22mm and 28mm
• Suitable for: Polybutylene and copper pipe on hot, cold and heating systems
• Standard/approval: BS 7291 Class S, Kitemarked, BBA certified
• Guarantee: 50 years

Common Questions

Can I reuse a Polyplumb straight coupler? Yes, Polyplumb fittings can be taken apart and reused or modified. Check the fitting and pipe end are in good condition before you refit them.

What is a push-fit connection on the Polyplumb coupler? It’s a joint you make by pushing the pipe into the fitting, with no tools, heat or solder. A stainless steel grab ring holds the pipe in place.

How do I fit a Polyplumb straight coupler? Push each pipe fully into the coupler to join them in a straight line. If you’re joining plastic pipe, or plastic to copper, fit a stiffener in the plastic pipe end first.

How long do push fit fittings last? Polypipe back PolyPlumb with a 50 year guarantee, and the polybutylene isn’t affected by hard water scale or soft water corrosion.

Can I remove a Polyplumb push fit coupler? Yes, Polyplumb fittings can be taken apart and used again. The Polypipe PolyPlumb installation guide in our datasheets shows the right way to release one.

What sizes does the Polyplumb straight coupler come in? It’s made in 10mm (PB010), 15mm (PB015), 22mm (PB022) and 28mm (PB028).

Datasheets

• Polypipe PolyPlumb Enhanced Installation and Testing Guide (PDF)
