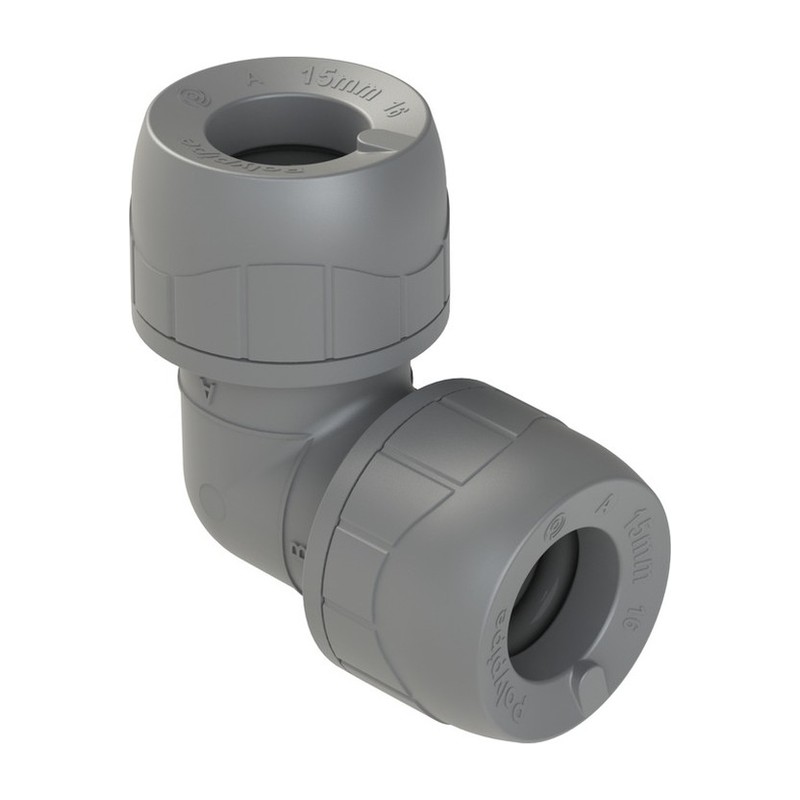

PolyPlumb Equal Elbow 10mm to 28mm

The Polyplumb Equal Elbow is a 90 degree bend with the same size Push Fit socket on each end. Push the pipe in on both sides and the turn is done.

Fitting a Polyplumb Equal Elbow

Plastic pipe can be bent gently, but a tight corner needs an elbow. You will use these at the foot of risers, around joists and where pipe turns up to an appliance. Microbore radiator tails take the 10mm. Most house jobs run in 15mm and 22mm, and 28mm handles larger mains. Carry spares of each size, because a job always eats one more than planned.

• Sizes: 10mm, 15mm, 22mm and 28mm
• Equal 90 degree elbow
• Polyplumb Push Fit sockets
• Takes plastic pipe with a stiffener, or copper

Square cuts matter more with Push Fit than with any other joint, because the O ring seals on the outside of the pipe. Use a proper cutter, not a hacksaw, on plastic. Fit the stiffener, mark the insertion depth and push in. Elbows can rotate after fitting, so clip the pipe to hold the angle. Our Polyplumb Fittings page has the rest.

Elbows over the counter in Glasgow

Plumb Parts, 555 South Street, Glasgow G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm, with online orders taken around the clock.

Specification

• Brand: Polyplumb
• Range: Polyplumb Push Fit
• Connection: Push Fit sockets both ends
• Sizes: 10mm, 15mm, 22mm and 28mm
• Suitable for: Polybutylene and copper pipe on hot, cold and heating systems
• Standard/approval: BS 7291 Class S, Kitemarked, BBA certified
• Guarantee: 50 years

Common Questions

Can you use Polyplumb fittings on copper pipe? Yes, Polyplumb fittings take copper pipe as well, and copper does not need a pipe stiffener.

Are Polyplumb fittings reusable? Yes, Polyplumb fittings can be taken apart and reused or changed. They can even be turned while the system is under pressure, which helps when lining up runs.

Can you mix Polyplumb and Speedfit? We’d keep Polyplumb fittings with Polyplumb pipe and stiffeners. Mixing brands can affect the maker’s guarantee, so stick with one system where you can.

How do you cut Polyplumb pipe? Use a proper plastic pipe cutter so the end comes out square and clean. A ragged or angled cut can stop the pipe seating fully in the fitting.

How do you fit Polyplumb fittings? Cut the pipe square, put a Polyplumb stiffener into the end of plastic pipe, and push it firmly into the elbow until it is fully home.

What sizes does the Polyplumb equal elbow come in? It comes in 10mm, 15mm, 22mm and 28mm, with both ends the same size.

Datasheets

• Polypipe PolyPlumb Enhanced Installation and Testing Guide (PDF)
