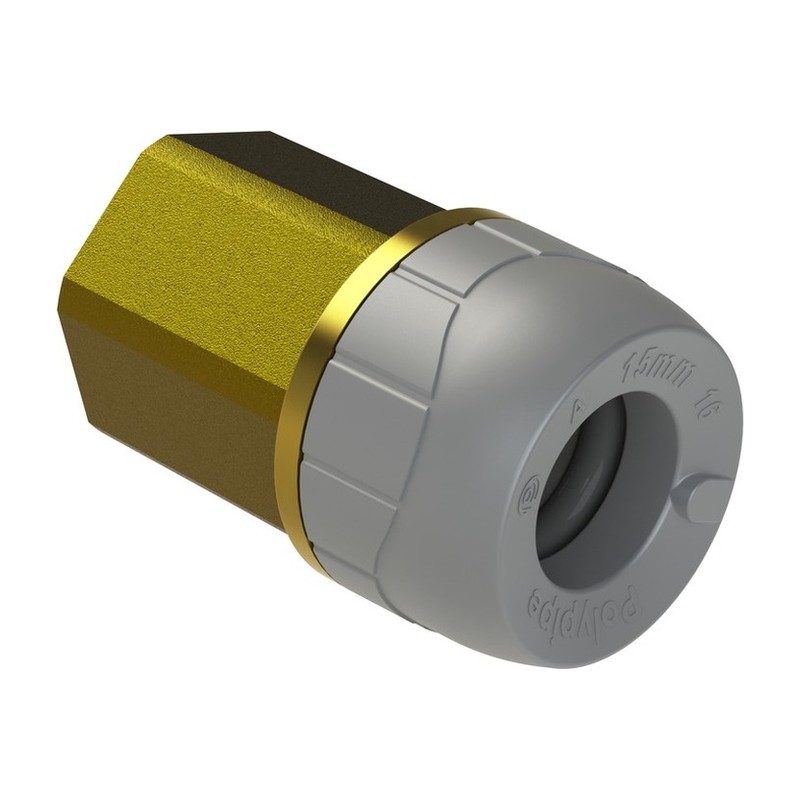

PolyPlumb Brass Female BSP Adaptor 10mm to 28mm
Price range: £9.86 through £16.14 inc VAT ( Price range: £8.22 through £13.45 ex VAT)
✓ In Stock
Free Click and Collect, no minimum order, from our Glasgow counter at 555 South Street, G14 0QX. Open Mon-Fri 8am-5pm, Sat-Sun 8am-1pm.
Delivery: free UK mainland delivery on orders over £250, or £12 + VAT under £250. In stock orders placed by 2pm Monday to Friday usually go out for next working day delivery. Returns: 14 days. Call 0141 404 5128 for a return number first. Delivery and Returns
Trade and public welcome at 555 South Street, Glasgow G14 0QX. Call 0141 404 5128.
The Polyplumb Brass Female BSP Adaptor joins Push Fit pipe to a male threaded fitting, in sizes from 10mm x 1/4″ to 28mm x 1″. Use it on valves, pumps and cylinders. From Plumb Parts in Glasgow.
| SKU | Thumbnail | Size | Price | Quantity | Total | ||
|---|---|---|---|---|---|---|---|
| PB4410 |
|
10mmX1/4" | £10.58 inc VAT (£8.82 ex VAT) |
-
+
|
£10.58 inc VAT | ||
| PB4415 |
|
15mmX1/2" | £9.86 inc VAT (£8.22 ex VAT) |
-
+
|
£9.86 inc VAT | ||
| PB441534 |
|
15mmX3/4" | £11.28 inc VAT (£9.40 ex VAT) |
-
+
|
£11.28 inc VAT | ||
| PB4422 |
|
22mmX3/4" | £14.72 inc VAT (£12.27 ex VAT) |
-
+
|
£14.72 inc VAT | ||
| PB4428 |
|
28mmX1" | £16.14 inc VAT (£13.45 ex VAT) |
-
+
|
£16.14 inc VAT |
A Polyplumb Brass Female BSP Adaptor changes from a Push Fit socket to a brass female thread. It lets plastic or copper pipe connect to anything with a male BSP thread.
Where a Polyplumb Brass Female BSP Adaptor is used
Threaded connections turn up all over a system: on cylinder bosses, pump valves, filters, pressure reducing valves and some taps. This adaptor screws on to that male thread, and the pipe pushes into the other end. The brass thread is stronger than a plastic one, so it takes a spanner without trouble.
- Sizes: 10mm x 1/4″, 10mm x 3/8″, 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″ and 28mm x 1″
- Brass female BSP thread
- Polyplumb Push Fit socket
- Seal the male thread with PTFE or paste
Make the threaded joint first, before any pipe goes in, so you can turn the adaptor freely. Hold the brass part with the spanner, not the plastic body. Once the thread is sealed and tight, push in the pipe with a stiffener. For the male version, see the rest of our Polyplumb Fittings.
Threaded adaptors from our Glasgow counter
Pick it up at Plumb Parts, 555 South Street, Glasgow G14 0QX. The counter opens Monday to Friday 8am to 5pm and Saturday and Sunday 8am to 1pm. Online ordering is there too.
Specification
- Brand: Polyplumb
- Range: Polyplumb Push Fit
- Material: Brass thread
- Connection: Push Fit socket to brass female BSP thread
- Sizes: 10mm x 1/4″, 10mm x 3/8″, 15mm x 1/2″, 15mm x 3/4″, 22mm x 3/4″ and 28mm x 1″
- Suitable for: Polybutylene and copper pipe on hot, cold and heating systems
- Standard/approval: BS 7291 Class S, Kitemarked, BBA certified
- Guarantee: 50 years
Common Questions
What does BSP mean?
British Standard Pipe, the usual thread on UK valves, pumps and cylinders. The size is the nominal thread size, not the outside measurement.
How do I seal a female BSP adaptor?
Seal the male thread it screws onto with PTFE tape or a suitable jointing paste.
Should the thread be made before the pipe goes in?
Yes, so the adaptor turns freely while you tighten it. Hold the brass part with the spanner.
Datasheets
| Size |
10mmX1/4" ,10mmX3/8" ,15mmX1/2" ,15mmX3/4" ,22mmX3/4" ,28mmX1" ,35X35mm ,42X42mm ,54X54mm ,67X67mm ,76X76mm ,108X108mm |
|---|
